In-Wall Flat Panel Mounting System

To Achieve ADA Compliance on 2.5″ Stud Walls

For Displays Larger than 55″ & up to 225 lbs

Wallmate Slim is an integrated flat panel mounting system for 2.5″ stud walls. The standard universal mounting plate can accommodate most displays with non-standard VESA patterns. Our system integrates the back box, display mounting plate and AV device mounting into one, easy to work with solution.

  • Closes to 1.49″ from the wall to help achieve ADA compliance.
  • Slim back box has been redesigned to fit in 2.5″ wall studs.
  • Slim X-arm system makes the display seem feather light enabling easy and safe service and setup access
Download Spec Sheet
  • Specifications
  • Documentation
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by faciliating AV equipment to be pre-dressed, and pre-tested.
  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Included electrical knock outs for conduit and single gang boxes removes coordination of box locations when a display size changes.
  • Manufactured with 11 to 14-gauge steel, in the USA, to create a rigid mount that will remain stable and level.
  • Only simple tools such as a drill, screwdriver, and Allen key are needed to install the system.
  • Mounts directly to studs which eliminates the need for surface blocking. Contractors can install the back box during the construction phase.





Wallmate 32BS-XMS-UNV Product Specifications
(Only available in 16 & 32)



Stud Depth In Wall2.5″
Min. Landscape and Portrait Panel Size50″ L / 65″ P
Max Recommended Display Size Dia. 16:975″*3
Max Display Thickness Hit ADA – Non Shift2.51″
X-arm Opening Distance (wall to back of display)10.12″
X-arm Closed Distance (wall to back of display)1.49″ (OFFSET plate: 0.6″)
Horizontal Shift+/-9.4″ H*6
Vertical Shift+5.02″-9.09″ V*6
Rotation of Display0-6.5mm height adjust per VESA location
X-arm Plumb Alignment-1.03° to 0°
Display Weight Capacity225 lbs.
Internal Mount Space X-arm (WxHxD)24.1″ x 10.5″ x 3.43″
Peripheral Plate Dim (WxHxD inches)16.5″ x 17.4″ x 0.5″
Box External Dimensions – No Trim (WxHxD)30.38″ x 23.34″ x 3.13″
Box & Trim External Dimensions (WxHxD)32.1″ x 25″ x 3.88″
Plate Attach Pattern to X-arm (WxH)26.5″ x 11″
Default VESA Pattern Width200-800
Default VESA Pattern Height200-600
1-Gang Box Positions (top and bottom)4 each
Conduit Knock Outs (top)4 qty. x 1″
Conduit Knock Outs (bottom)4 qty. x 1″
AUX Tray Position0
1″ Metal Multi-Piece TrimIncluded with back box
Weight70.25 lbs.



*3: Larger display sizes are possible but may impede access to the peripheral mounting plate.
*6: Shift range based on 600mmW x 400mmH hole pattern.

Request Current Wallmate Price List

Request Price List

Inside

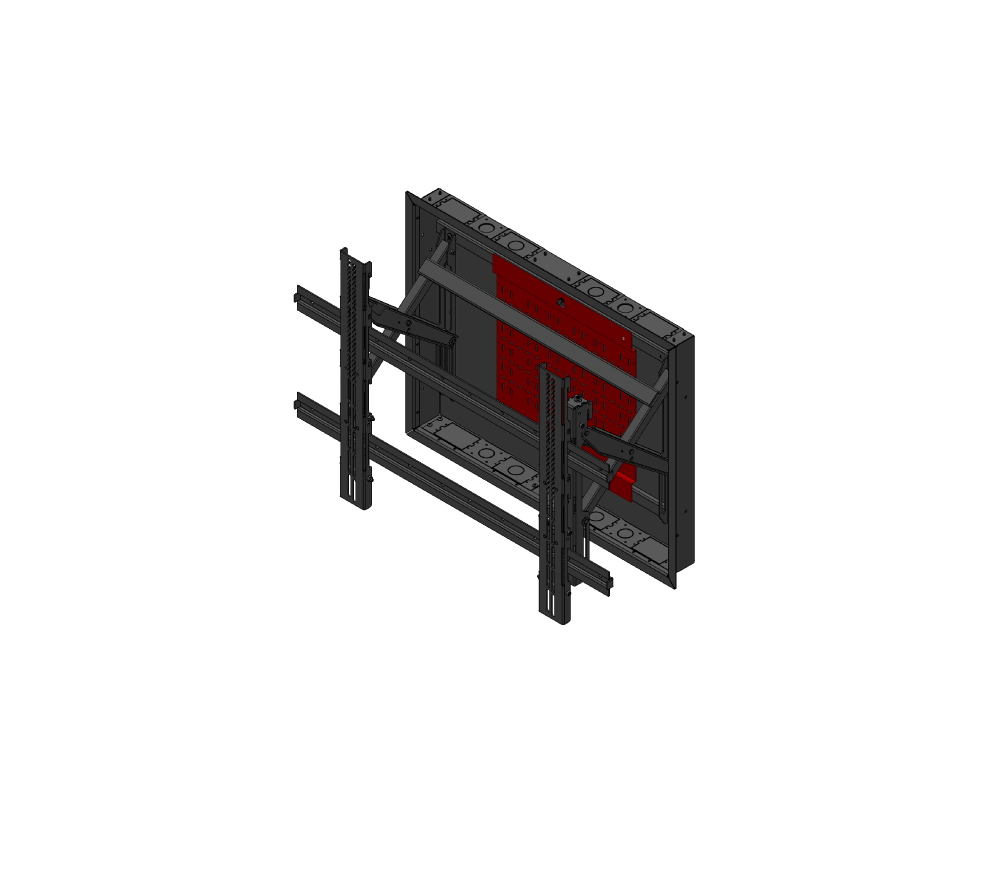

Wallmate RPWM-32BS-XMS-UNV System with Universal Mounting Plate
