Overview

Discontinued Model – Limited Stock Available – RPWM-SURF

Replacement Model – RPWM-SURFB

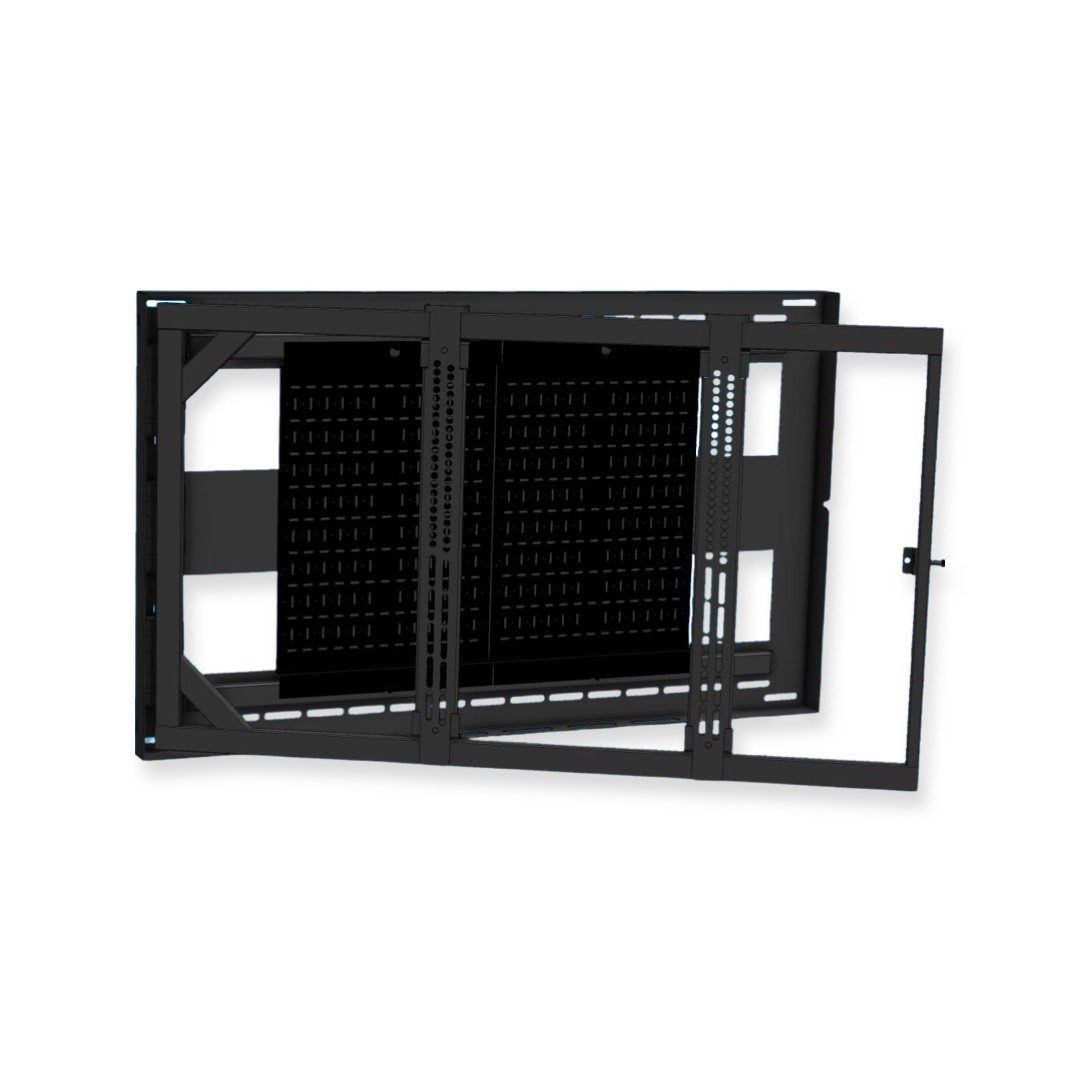

Wallmate Surface is an on-wall mounting system for flat panel displays featuring a swing open door and peripheral equipment storage.

  • Swing open door makes the heaviest displays feather-like to allow easy access to rear AV equipment.
  • Closes to 2” from back of display to wall to assists with ADA compliance.
  • Engineered with 11 to 14-gauge steel and manufactured in the U.S.A.
  • Removable device mount plates allows quick exchange service and assembly line style, off-site preparation.
  • Oversized rear openings accommodate 2-gang box/cover plates.
  • Magnetic closure latch secures the display and rear AV equipment.
  • The spec sheet and additional information below is for reference only. For new order, go to replacement model number: RPWM-SURFB
Download Spec Sheet
  • Specifications
  • Kit
  • Videos
RPWM-SURF
Capacity150 lbs.
Product Weight48 lbs
Warranty1 year
Display Size55” up to 75”
Peripheral plate mountng area14” x 18.5”  Qty 2
Peripheral plate includedQty 2
Overall Dimensions45.9” x 27.5” x (2.0” or 2.5”)*

*Depth is 2.0” without spacer to give more internal mount depth. With spacer, depth is 2.5” .

Wallmate Surface Display Mount

Wallmate Surface 75 Kit (RPWM-SURF)

Surface mounted swing open style system with openings for 4 two gang box plates in wall, two removable peripheral device plates, 2″ thin, 150 lbs capacity. Suitable for displays in landscape from 55″-75″.


Request Current Wallmate Price List

Request Price List
