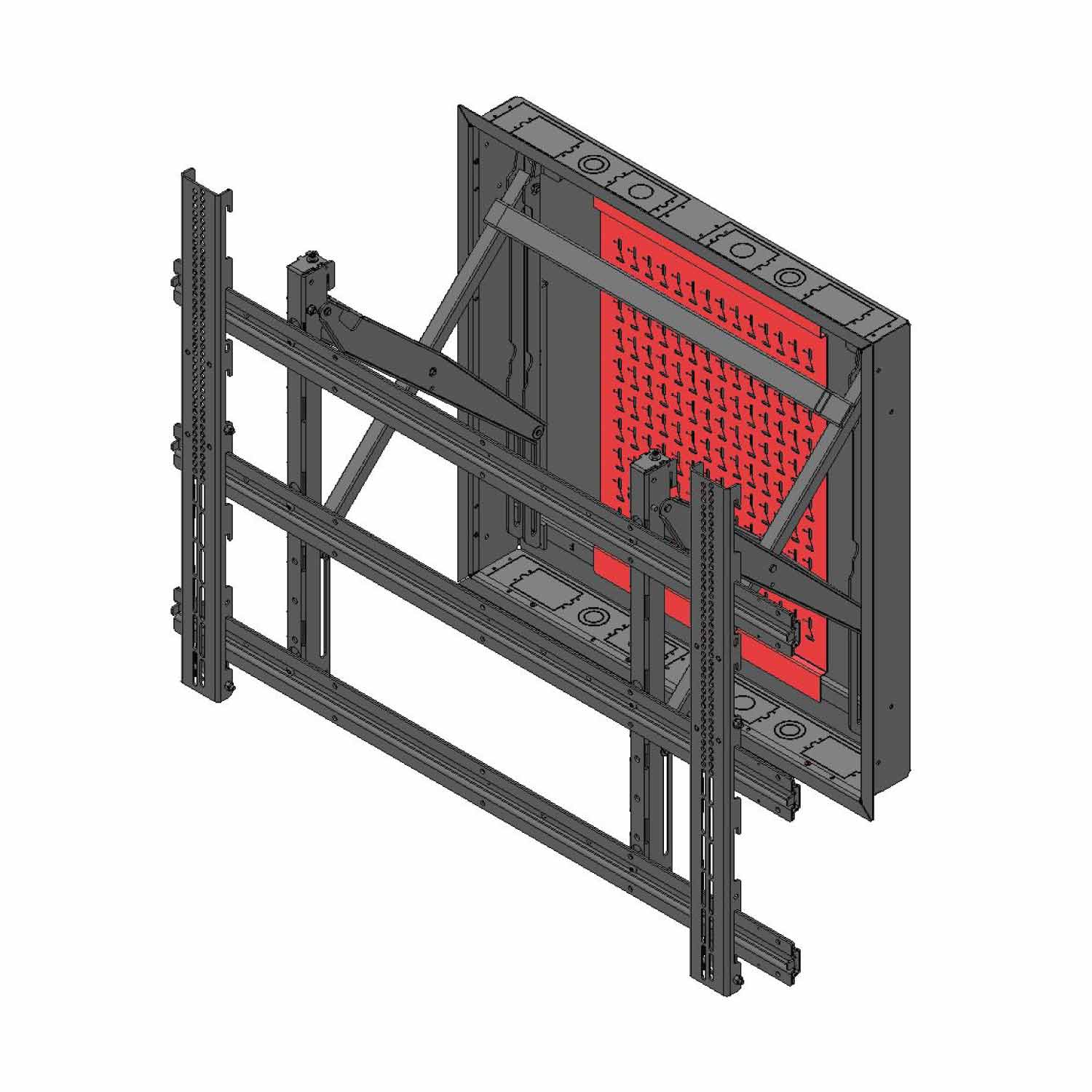

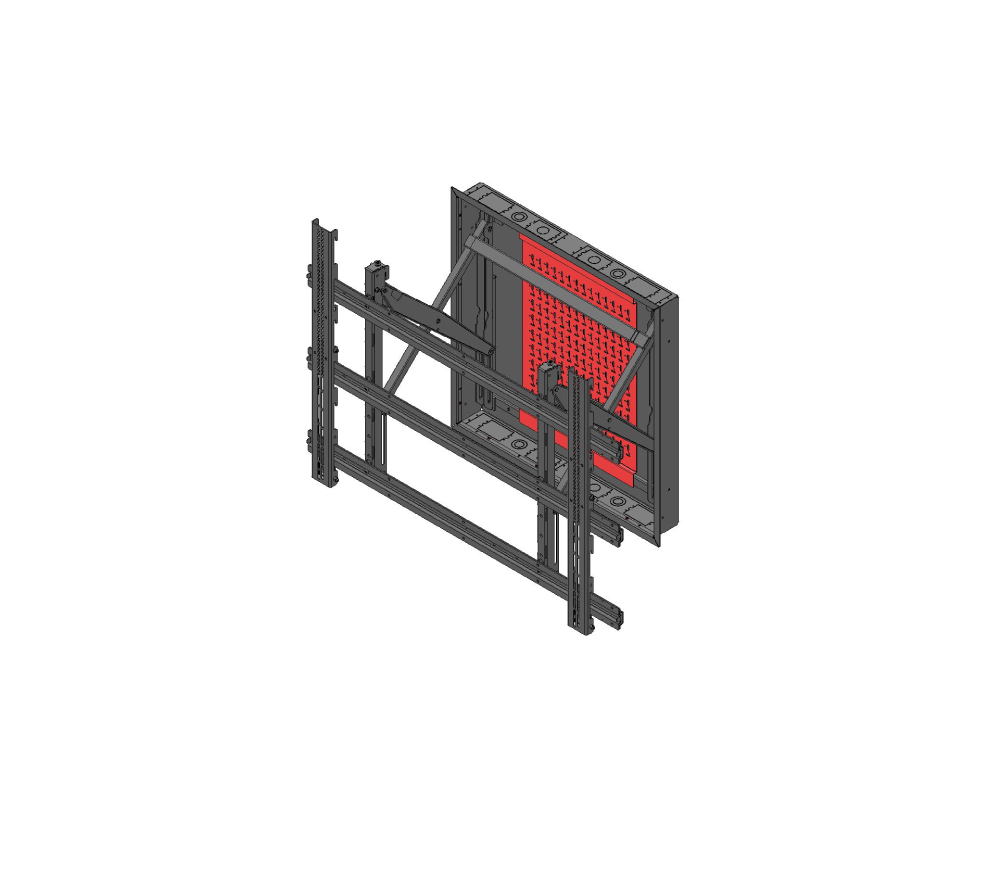

Flush In-Wall Flat Panel Mounting System

For Displays Up to 350 lbs

The Wallmate 32MAXBF with the Large Display Universal mount is a double stud bay system designed to hold flat panel displays above 75″ with up to 1000mm wide VESA, while maintaining a low profile from the wall and position adjustment.

  • Unique proprietary roller X-arm system makes the display seem feather light, enabling easy, and safe service.
  • Low profile Flush back box enables x-arm front to close 0.48″ from the wall.
  • UNV-106 mounting interface supports multiple makes and models.
Download Spec Sheet
  • Wallmate Mount Compatibility Checker
  • Specifications
  • Kits
  • Accessories
  • Documentation

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • Flush back box can be install in a 14-gauge stud wall.
  • Low profile Flush back box enables x-arm front to close 0.48″ from the wall.
  • Includes electrical knock outs for conduit and single gang boxes.
  • Unique proprietary roller X-arm system makes the display seem feather light, enabling easy, and safe service.
  • UNV-106 mounting interface supports multiple makes and models.



Wallmate 32MAXBF-XMR-UNV-106 Product Specifications
(Available in all sizes 16, 32, 32MAX)



Structure In Wall14-gauge studs
Stud Depth in Wall3.5″ or greater
Min. Landscape Panel Size71″
Max Recommended Display Size Dia. 16:9120″
Max Display Thickness Hit ADA – Non Shift2.22″
X-arm Opening Distance (wall to back of display)16.78″*9
X-arm Closed Distance (wall to back of display)1.78″
Horizontal Shift+/-11.26″*6
Vertical Shift+/-4.92″/-9.71″ V*6
Rotation of Display0-6.5mm height adjust per VESA location
X-arm Plumb Alignment-0.62° to 0°
Display Weight Capacity350 lbs.
Internal Mount Space X-arm (WxHxD)23.75″ x 19.44″ x 3.68″
Peripheral Plate Dim (WxHxD inches)17.5″ x 26.75″ x 0.75″
Box External Dimensions – No Trim (WxHxD)30.38″ x 30.38″ x 3.81″
Box & Trim External Dimensions (WxHxD)32.1″ x 32.1″ x 3.88″
Plate Attach Pattern to X-arm (WxH)26.5″ x 11″ x 11″
Default VESA Pattern Width200-1000
Default VESA Pattern Height200-700
1-Gang Box Positions (top and bottom)4 each
Conduit Knock Outs (top)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position2
1″ Metal Multi-Piece TrimIncluded with back box
Weight130 lbs.



*6: Shift range based on 600mmW x 400mmH hole pattern. For UNVM based on 300mmW x 300mmH holes pattern. For UNV-158 based on 900mmW x 600mmH holes.
*9: Depth may change by interface.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.



Large Display Universal Mount - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMR-UNV-106)

Wallmate 32MAXBF system, includes BF back box, peripheral plate, box trim bezel, large display spacer kit, heavy duty roller x-arm, and Universal 106 mounting system. Close to 1.78″ back of the display to wall. 350 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Flush 32MAX UNV 158

Large Display Universal Mount - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMR-UNV-158)

Wallmate 32MAXBF system, includes BF back box, peripheral plate, box trim bezel, large display spacer kit, heavy duty roller x-arm, and Universal 158 mounting system. Close to 1.78″ back of the display to wall. 350 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Flush 32MAX ADA

Thin ADA plate - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-ADA)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm and ADA mounting plate. Close up to 0.12″ from wall. 325 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Large thin ADA plate - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-ADA-HVSBL)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm and made to order large ADA shift mounting plate with +/- 1″ H/V shift, and 1 degree rotation. Close distance is 0.14″. 220 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

Wallmate Flush 32MAX

Universal Mount - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-UNV)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mount. Closes 1.01″ from wall, 325 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Accessories are complimentary to Wallmate Kits.



Auxiliary box

(RPWM-AUXBOX)

In wall accessory tray for holding peripherals, slides into removable bottom panel on back box of 16, 32 and 32MAX size in B, BF, BFM and B6 series. Internal space 12.5″ x 7.2″ x 2.5″.

European power adapter plate with 2 openings

(RPWM-EUPWR)

European 68mm OR 70mm electrical box adapter plate, uses AUXBOX knock out location. Not compatible with BS, BM or BFM series back boxes.

Blank back box cover plate for Wallmate 32MAXB series

(RPWM-32MAXB-CVR)

Back box cover plate for Wallmate 32MAXB, BF, B6. Primer finish metal plate.

Large display spacer kit for 32MAXBF, XMR

(RPWM-32MAXBF-LDS)

Large display spacer kit to enable Wallmate 32MAXBF box to accept an RPWM-32MAXB6-XMR x-arm for mounting RPWM-UNV-158 Universal Mount for 85-110″ flat panels up to a weight of 350 lbs.

Request Current Wallmate Price List

Request Price List

RPWM-32MAXBF-XMR-UNV-106

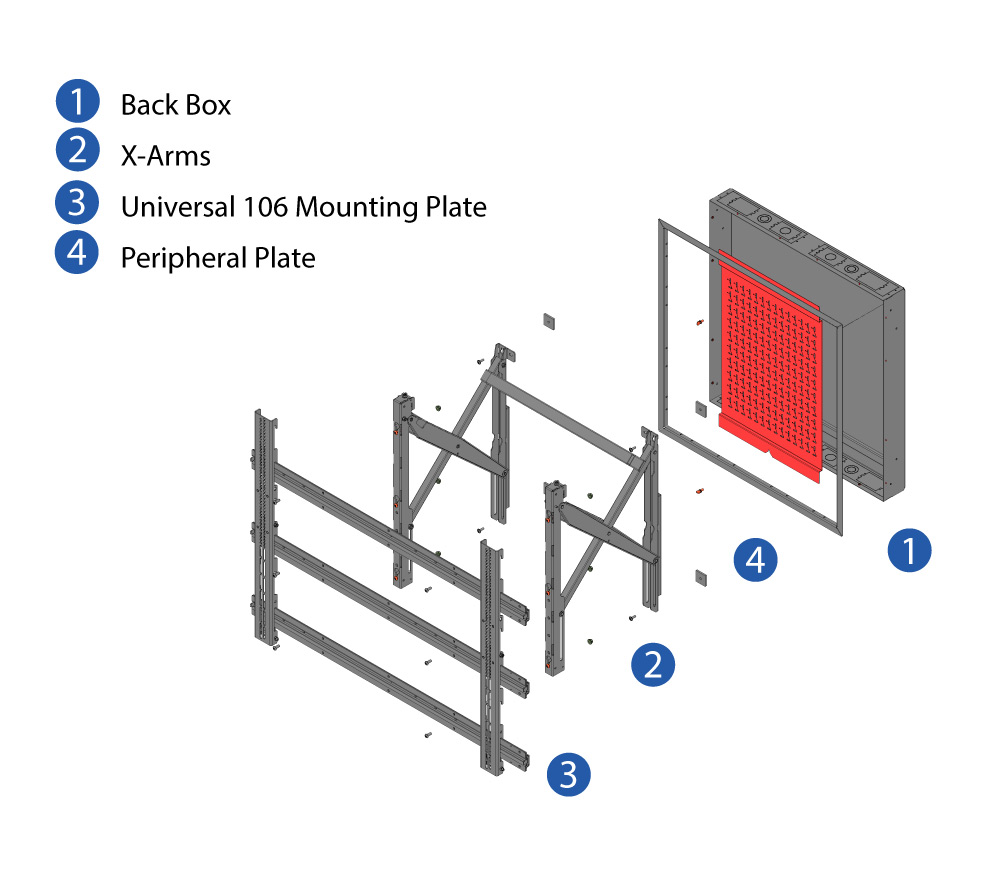

Inside the Wallmate 32MAXBF Kit with Universal 106 Mounting Plate
