Overview

Wallmate T-UP can be mounted on top of drywall, concrete or block walls, to easily install a single panel and peripheral equipment.

Benefits

  • Removable device mount plates = Allows quick exchange service and assembly line style, off-site preparation.
  • 2” from back of display to wall = Assists with ADA Compliance
  • Can Mount displays from 75” to 100”
  • Built to the strength and rigidity that RPV is known for
  • Lift Assist to allow easy access to even large displays
Download Spec Sheet
  • Specifications
  • Kit
  • Videos
T-UPT-UPL
Capacity250 lbs.250 lbs.
Product WeightApprox 65 lbsApprox 70 lbs
Warranty1 year1 year
Display Size75” up to 86”98”-100”
Peripheral plate mounting area20.5” x 1.75” x 13.75”20.5” x 1.75” x 13.75”
Peripheral plate includedQty 1 (up to 3 total)Qty 1 (up to 3 total)
Overall Dimensions66.2” x 38.5” x 1.9” *66.2” x 38.5” x 1.9” *
VESA Adapter36” x 5.75” x 0.5”36” x 5.75” x 0.5”

* Depth without the VESA Adapter. With VESA Adapter, depth increases by 0.5”.

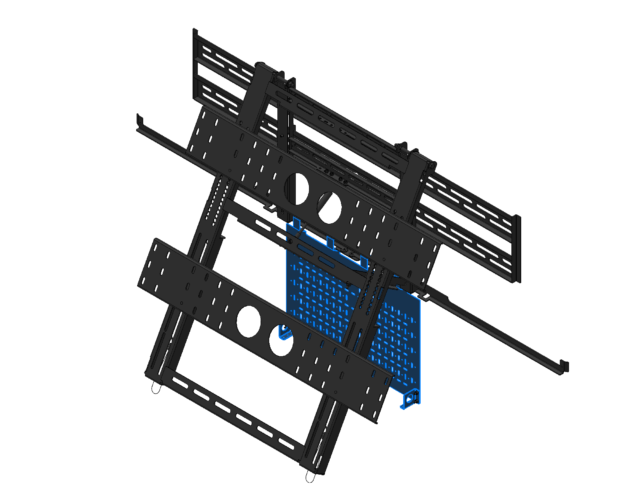

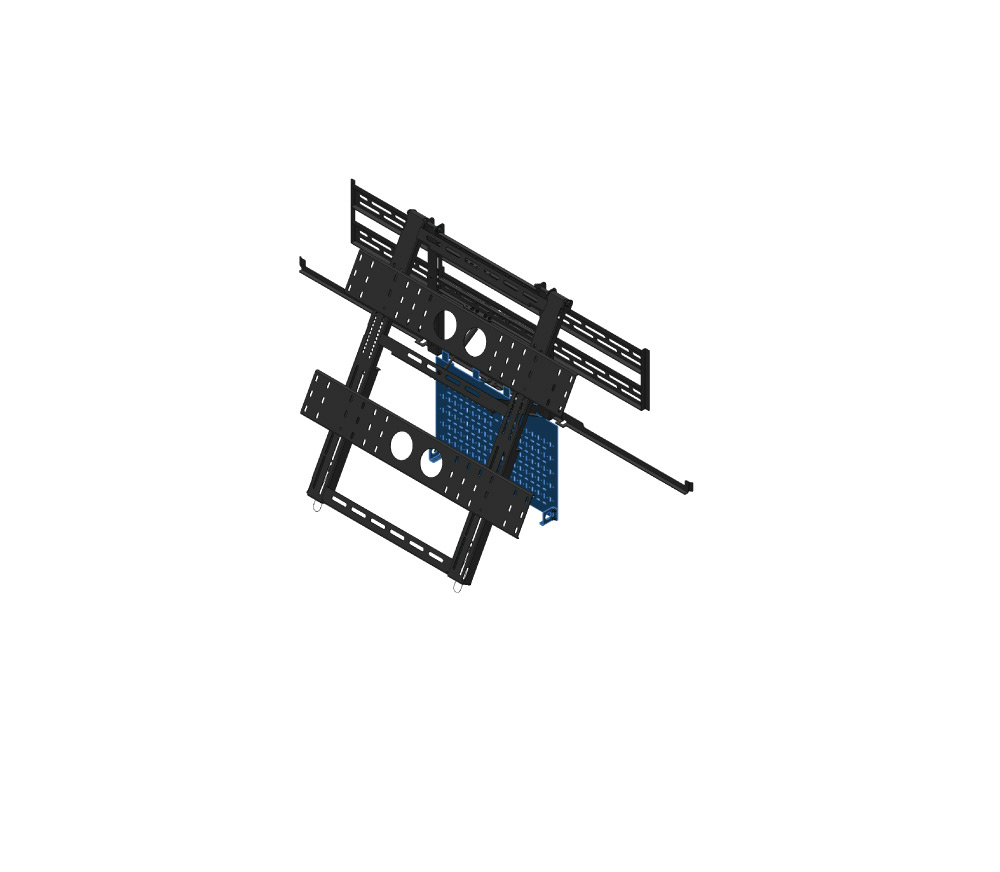

Wallmate T-Up Mounting Solution

T-Up: Wall attach swing up mount

RPWM-TUP

rpv TUP wall attach swing up system. Includes gas shock lift assist, closure lock, removable Peripheral Plate for 1RU gear (option for up to 3 plates total). 250 lbs capacity, kick stand for hold open safety when open. Panel 75″ up to 86″ – in landscape.



T-Up Large: Wall attach swing up mount

RPWM-TUPL

rpv TUP wall attach swing up system for 98″-100″ displays in landscape. Includes gas shock lift assist, closure lock, removable Peripheral Plate for 1RU gear (option for up to 3 plates total). 250 lbs capacity, kick stand for hold open safety when open.

Request Current Wallmate Price List

Request Price List
