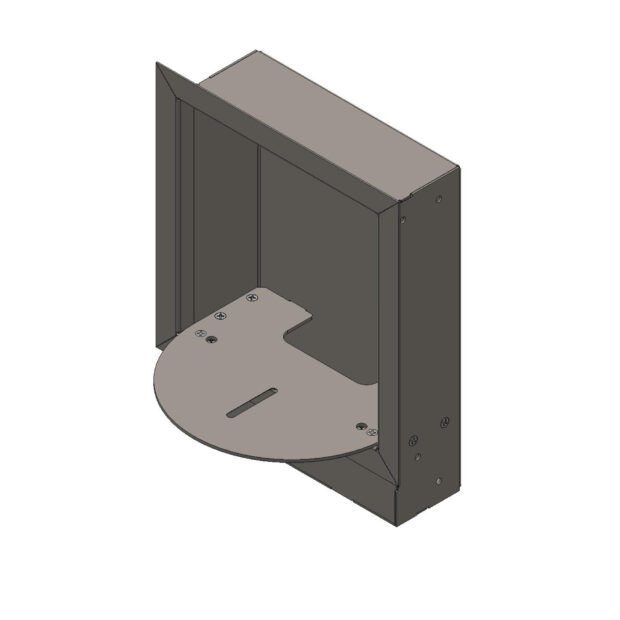

Recessed Camera Box

For Single Or Dual Camera PTZ Cameras

The recess camera box holds a single or dual set of PTZ cameras to be mounted with a reduced depth and clean appearance.

  • Separate in wall box allows for preinstall during dirty construction
  • Removable device mount plates allow for camera flexibility and future replacements and model changes
  • Oversized rear openings accommodate 2-gang box/cover plates
  • Magnetic closure latch secures the display and rear AV equipment
Download Spec Sheet
  • Specifications
  • Documentation
  • 3.825″ recess allows for reduced in room depth of PTZ cameras
  • Ultra clean appearance with single piece welded and ground bezel, recessed and flush screws and fastener, and cavity space for transmitters and cabling
  • Available in black, white powder coat, or primer finish for on site painting



Wallmate Camera Box Product Specifications



Capacity1 or 2 camera units
Product Weight16 lbs. single / 21 lbs. dual
Warranty1 year
Camera SizeVaries (intended for all in one style PTZ cameras)
Knock Outs1 gang with 1.25″ conduit knock out, and two 0.75″
Single – Box Size (Overall)9.7″w x 13.3″ x 3.9″d
Single – Camera Space9.38″w x 9.44″h x as required
Dual – Box Size (Overall)9.7″w x 23.7″ x 3.9″d
Dual – Camera Space9.38″w x 8.19″h x as required



Request Current Wallmate Price List

Request Price List
