The Wallmate LED-T series is designed to hold tile LED displays or flat panel displays from 81″ up to 138″, while enabling easy service access.
| Structure in Wall | Cannot be stud mounted. Requires in wall structure by RPV or Structural team. |
| Min. Landscape and Portrait Panel Size | 81″ |
| Max Recommended Display Size Dia. 16:9 | 138″ |
| Max Display Size Dia. 21:9 | 126″ |
| Max Display Thickness Hit ADA – Non Shift | 3.0″ including interface*2 |
| X-arm Opening Distance (wall to back of display) | 15.44″*9 |
| X-arm Closed Distance (wall to back of display) | TBD |
| X-arm Plumb Alignment | -0.62° to 0° |
| Display Weight Capacity | 700 lbs. |
| Approx. Display Weight Capacity*5 / X-arm Max Load | 700/820 |
| Internal Mount Space X-arm (WxHxD) | 24.1″ x 19.34″ x 4.16″ |
| Peripheral Plate Dim (WxHxD inches) | 17.5″ x 26.75″ x 0.5″ |
| Box External Dimensions – No Trim (WxHxD) | 30.38″ x 30.38″ x 3.81″ |
| Box & Trim External Dimensions (WxHxD) | 32.1″ x 32.1″ x 3.88″ |
| Plate Attach Pattern to X-arm (WxH) | 26.5″ x 11″ x 11″ |
| 1-Gang Box Positions (top and bottom) | 4 each |
| Conduit Knock Outs (top) | 4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″) |
| Conduit Knock Outs (bottom) | 4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″) |
| AUX Tray Position | 2 |
| 1″ Metal Multi-Piece Trim | Included with back box |
| Weight | 300 lbs.*8 |
*2: Call for design assistance.
*4: Changing from flat panels to LED systems requires a different mount interface. Call for design assistance.
*5: LED system vary greatly for mounting requirements. Exact LED weight TBD based on mount interface requirements.
*8: Estimated weight, weight varies by LED. Call for specific weights.
*9: Depth may change by interface.
*10: When 32MAX series back boxes are installed in 14-gauge studs, the weight limit is limited to 350 lbs.

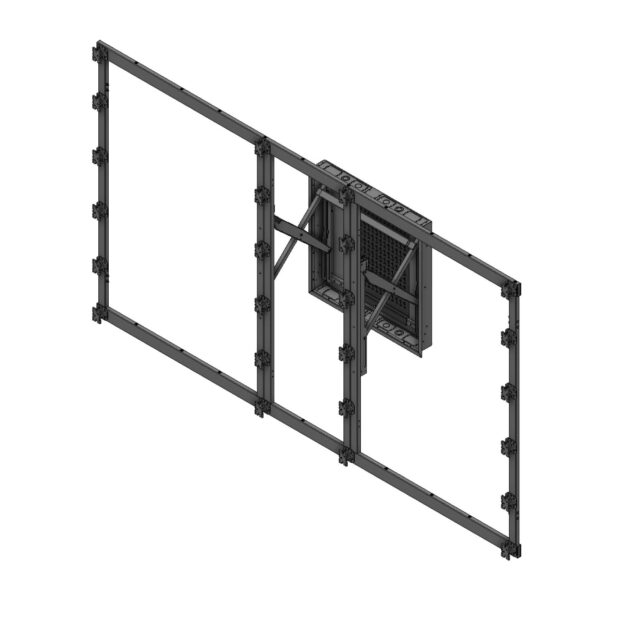

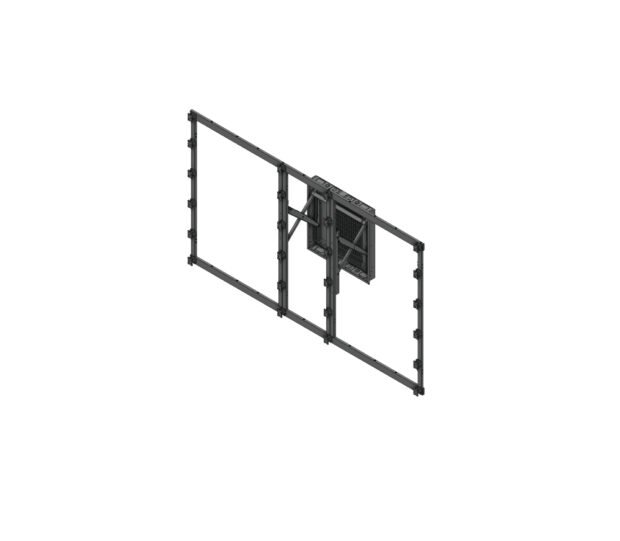

Wallmate 32MAXB6 System for tile based LED systems up to 137″ diagonal. Includes B6 back box, peripheral plate, box trim bezel, heavy duty roller x-arm, and made to order LED tile mounting frame, up to 5×5 tile array. Box and x-arm can hold 820 lbs. Estimated display weight 700 lbs.

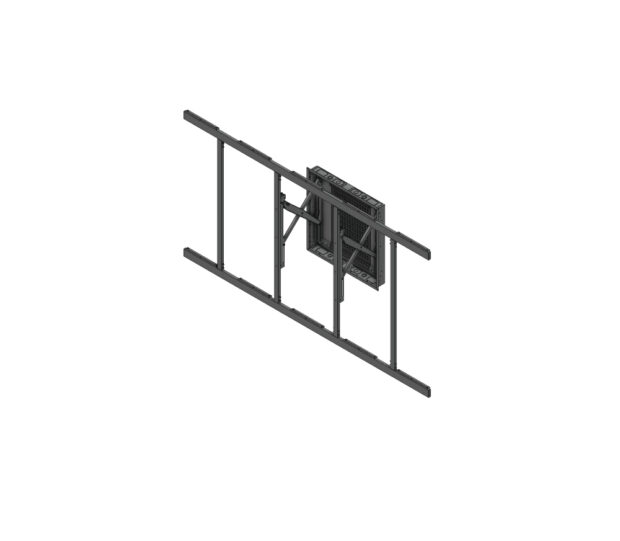

Wallmate 32MAXB6 System for All-In-One LED systems up to 137″ diagonal. Includes B6 back box, peripheral plate, box trim bezel, heavy duty roller x-arm, and made to order LED All-In-One mounting frame. Box and x-arm can hold 820 lbs. Estimated display weight 700 lbs.
