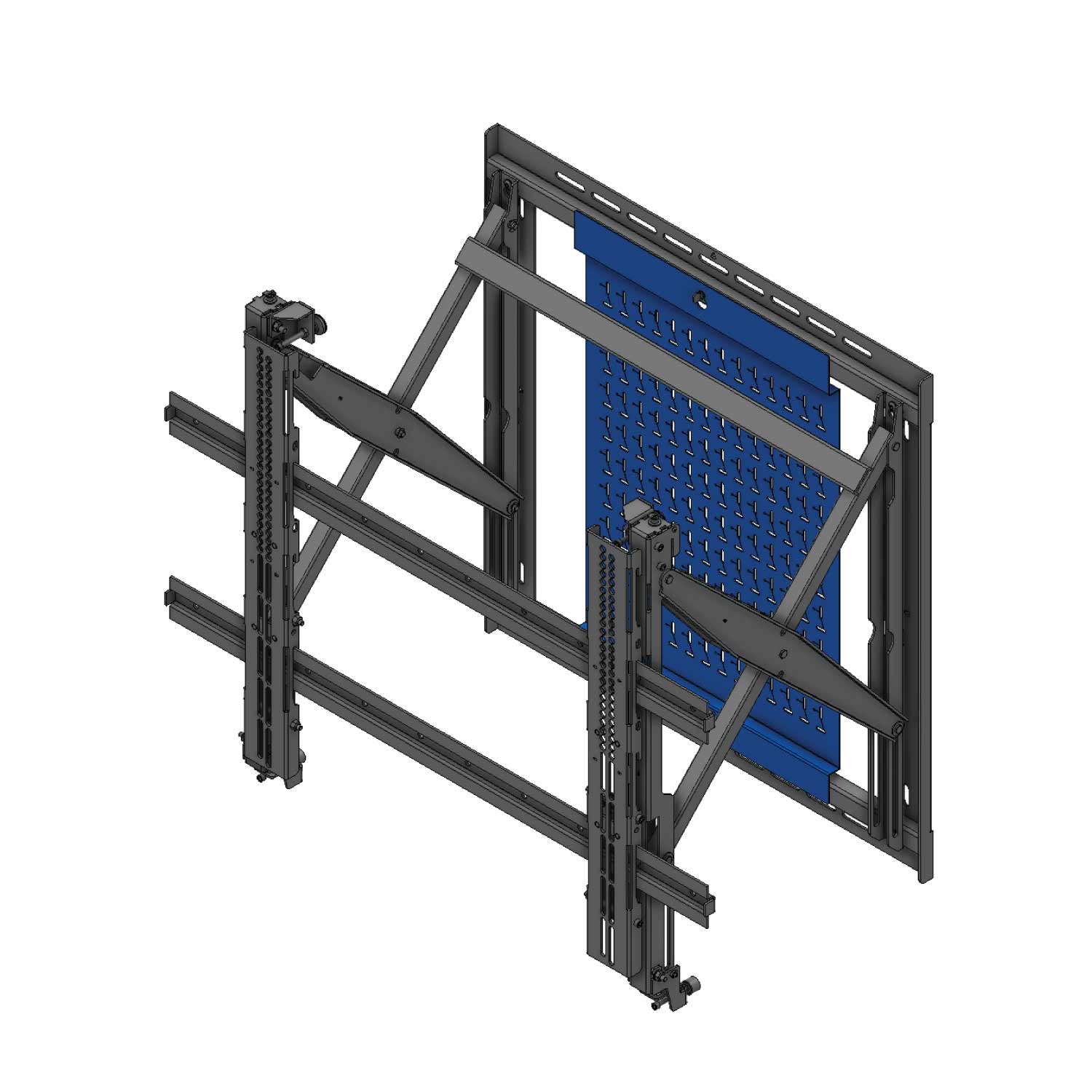

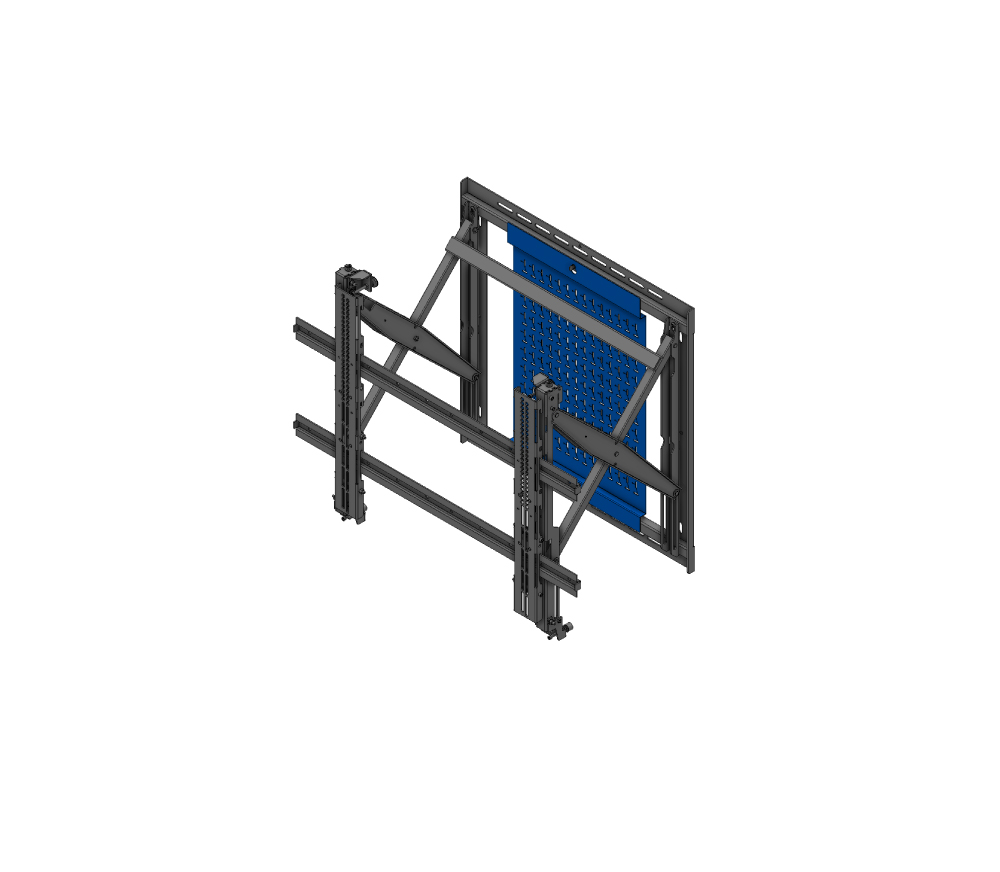

The Wallmate W32B with Universal mount is an on wall system designed for flat panel displays, while maintaining the ultimate in display mount flexibility, and single person service.
| Min. Landscape and Portrait Panel Size | 50″ L / 65″ P |
| Max Recommended Display Size Dia. 16:9 | 75″*3 |
| X-arm Opening Distance (wall to back of display) | 14.4″ |
| X-arm Closed Distance (wall to back of display) | 4.87″ |
| Horizontal Shift | +/-9.4″ H*6 |
| Vertical Shift | +5.02″ / -9.09″ V*6 |
| Rotation of Display | 0-6.5mm height adjust per VESA location |
| X-arm Plumb Alignment | -1.03° to 0° |
| Display Weight Capacity | 225 lbs. |
| Internal Mount Space X-arm (WxHxD inches) | 23.75″ x 10.5″ x 3.68″ |
| Peripheral Plate Dims (WxHxD inches) | 16.5″ x 17.4″ x 0.75″ |
| Wall Plate Dims (WxHxD inches) | 30″ x 21.75″ x 0.88″ |
| Plate Attach Pattern to X-arm (WxH inches) | 26.5″ x 11″ |
| Default VESA Pattern Width | 200-800 |
| Default VESA Pattern Height | 200-600 |
| Max Horizontal or Vertical | 800 x 600 |
| System Weight | 57 lbs. |
*3: Larger display sizes are possible but may impede access to the peripheral.
*6: Shift range based on 600mmW x 400mmH hole pattern. For UNVM based on 300mmW x 300mmH holes pattern. For UNV-158 based on 900mmW x 600mmH holes pattern.

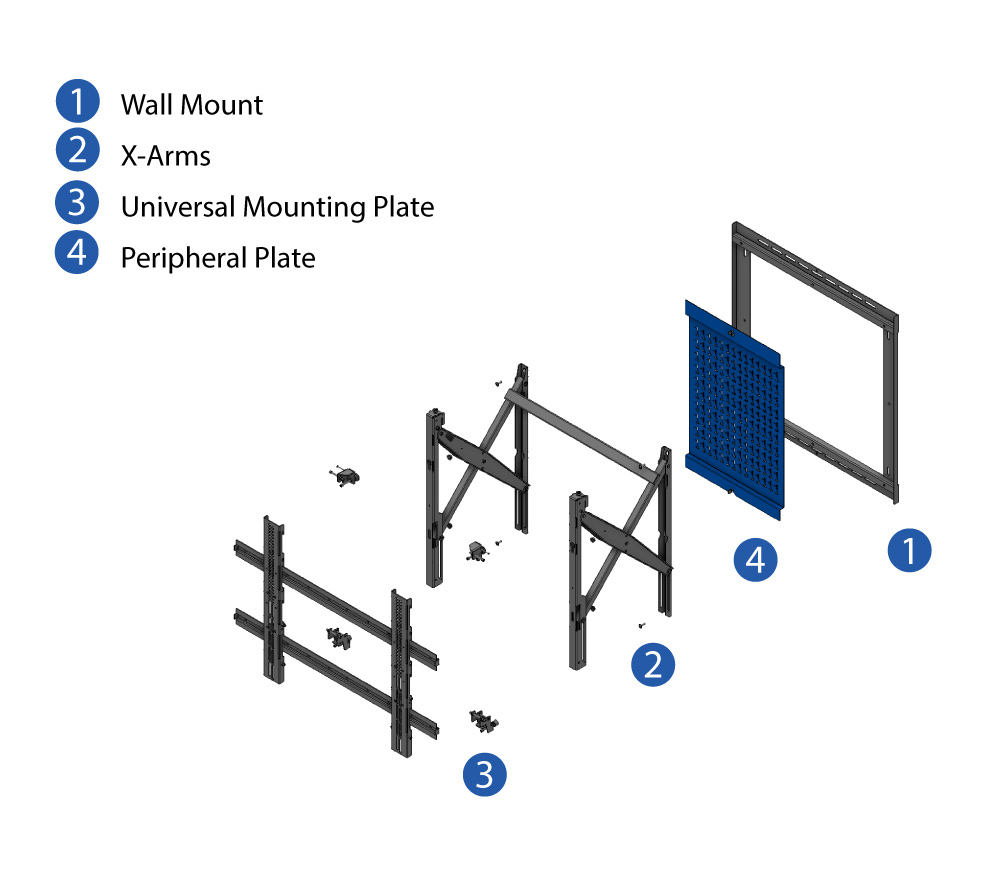

Surface mounted W32B series system, includes wall attach bracket, peripheral mount plate, Slim x-arm, touch kit, and offset display mounting plate. Closes 4.03″ from wall. 225 lbs. capacity.
Surface mounted W32B series system, includes wall attach bracket, peripheral mount plate, Slim x-arm, touch kit, and Universal Mount. Closes 4.87″ from wall. 225 lbs. capacity.
Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.
Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.
