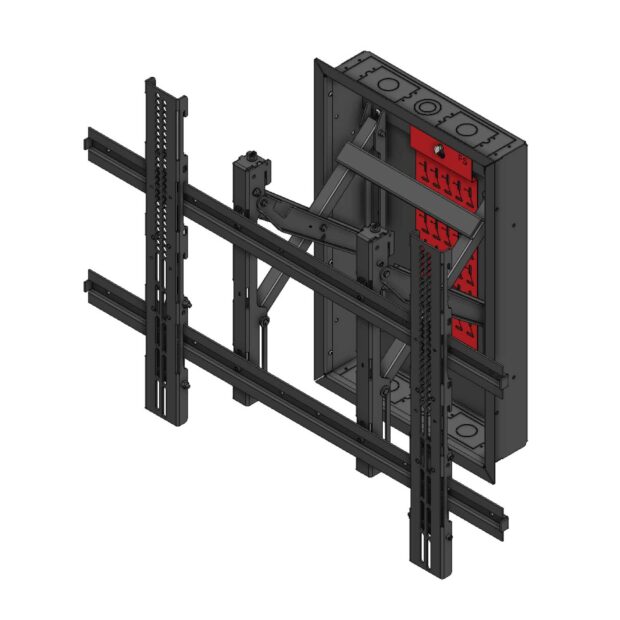

Wallmate Flush 16

Flush In-Wall Flat Panel Mounting System

For Displays Up to 125 lbs

The Wallmate 16BF with Universal mount is a single stud bay system designed to be the thinnest in-wall mount possible for ADA compliance, while maintaining the ultimate in display mount flexibility.

  • New Slim X-ARM system makes the display seem feather light enabling easy and safe service and setup access.
  • New Flush back box has been redesigned to enclose the x-arms completely to enable flush closure.
  • Universal mounting interface mounts most displays with VESA pattern, 200 x 200 to 800 x 600.
Download Spec Sheet
  • Wallmate Universal Compatibility Checker
  • Specifications
  • Kits
  • Documentation

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • New Flush back box has been redesigned to lower the profile and enable a flush closure.
  • Includes electrical knock outs for conduit and single gang boxes.
  • New Slim X-ARM system makes the display seem feather light, enabling easy, and safe service.
  • Universal mounting interface mounts most displays from 200 x 200 to 800 x 600 VESA pattern.



Wallmate 16BF-XMS-UNV Product Specifications
(Available in all sizes 16, 32, 32MAX)



Stud Depth in Wall3.5″ or greater
Min. Landscape and Portrait Panel Size50″ 32″
Max Recommended Display Size Dia. 16:965″
Max Display Thickness to Hit ADA – Non Shift2.99″
X-ARM Opening Distance (wall to back of display)10.31″
X-ARM Closed Distance (wall to back of display)1.01″
Horizontal Shift+/- 9.4″H*6
Vertical Shift+5.02″/-9.09″ V*6
Rotation of Display0-6.5mm height adjust per VESA location
X-ARM Plumb Alignment-1.03° to 0°
Display Weight Capacity125 lbs.
Internal Mount Space X-ARM (WxHxD)8.6″ x 10.5″ x 3.75″
Peripheral Plate Dim (WxHxD inches)5.5″ x 17.4″ x 0.5″
BOX External Dimensions – no trim (WxHxD)14.40″ x 23.34″ x 3.81″
BOX & Trim External Dimensions (WxHxD)16.1″ x 25″ x 3.88″
Plate Attach Pattern to X-ARM (WxH)11″ x 11″
Default VESA Pattern Width400, 600
Default VESA Pattern Height400
1-Gang Box Positions (top and bottom)2
Conduit Knock Outs (top)3 (qty. 2 x 1″, qty. 1 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)3 (qty. 2 x 1″, qty. 1 x combo 0.75″/1.25″)
AUX Tray Position1
1″ Metal Multi-Piece TrimIncluded with back box
System Weight52.32 lbs.



*1: Mounting is possible. Call 714-991-6400 for details.
*2: Call for design assistance.
*3: Larger display sizes are possible but may impede access to the peripheral mounting plate.
*4: Changing from flat panels to LED systems requires a different mount interface. Call for design assistance.
*5: LED system vary greatly for mounting requirements. Exact LED weight TBD based on mount interface requirements.
*6: Shift range based on 600mmW x 400mmH hole pattern.
*7: Shift based on optional ADA-HVSB mounting plate.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.



Wallmate Flush 16

Universal Mount - Pull out Wallmate 16BF kit

(RPWM-16BF-XMS-UNV)

Closes to 1.01″ from wall. The 16BF System, includes Flush back box, peripheral mounting plate, box trim bezel, Slim X-ARM, and Universal Mounting System. 125 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Flush 16 ADA

Thin ADA plate - Pull out Wallmate 16BF kit

(RPWM-16BF-XMS-ADA)

Closes to 0.12″ from wall. The 16BF System, includes Flush back box, peripheral mounting plate, box trim bezel, Slim X-ARM system, and made to order offset mounting plate. 125 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download
