The Wallmate 32BF with Universal mount is a double stud bay system designed to be the thinnest in-wall mount possible for ADA compliance, while maintaining the ultimate in display mount flexibility.
| Stud Depth in Wall | 3.5″ or greater |
| Min. Landscape and Portrait Panel Size | 50″ L / 65″ P |
| Max Recommended Display Size Dia. 16:9 | 75″*3 |
| Max Display Thickness Hit ADA – Non Shift | 2.99″ |
| X-arm Opening Distance (wall to back of display) | 10.32″ |
| X-arm Closed Distance (wall to back of display) | 1.01″ |
| Horizontal Shift | +/-9.4″ H*6 |
| Vertical Shift | +5.02″-9.09″ V*6 |
| Rotation of Display | 0-6.5mm height adjust per VESA location |
| X-arm Plumb Alignment | -1.03° to 0° |
| Display Weight Capacity | 250 lbs. |
| Internal Mount Space X-arm (WxHxD) | 23.75″ x 10.5″ x 3.68″ |
| Peripheral Plate Dim (WxHxD inches) | 16.5″ x 17.4″ x 0.5″ |
| Box External Dimensions – No Trim (WxHxD) | 30.38″ x 23.34″ x 3.81″ |
| Box & Trim External Dimensions (WxHxD) | 32.1″ x 25.0″ x 3.9″ |
| Plate Attach Pattern to X-arm (WxH) | 26.5″ x 11″ |
| Default VESA Pattern Width | 200-800 |
| Default VESA Pattern Height | 200-600 |
| Max Horizontal or Vertical | 800 x 600 |
| 1-Gang Box Positions (top and bottom) | 4 each |
| Conduit Knock Outs (top) | 4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″) |
| Conduit Knock Outs (bottom) | 4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″) |
| AUX Tray Position | 2 |
| 1″ Metal Multi-Piece Trim | Included with back box |
| Weight | 70.31 lbs. |
*3: Larger display sizes are possible but may impede access to the peripheral mounting plate.
*6: Shift range based on 600mmW x 400mmH holes pattern. For UNVM based on 300mmW x 300mmH holes pattern. For UNV-158 based on 900mmW x 600mmH holes pattern.

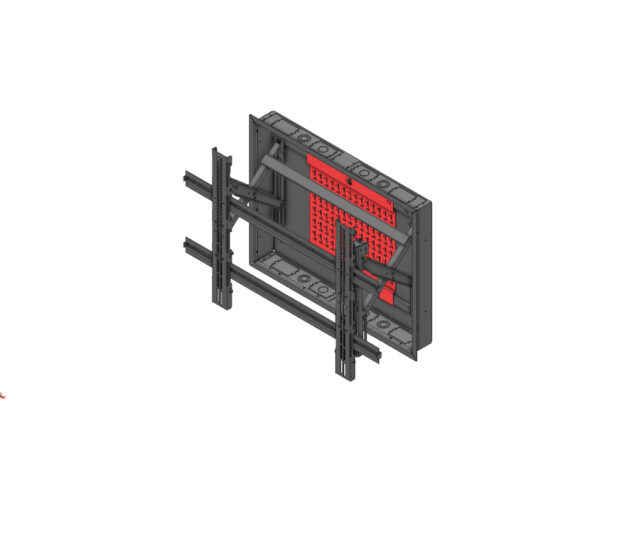

Wallmate 32BF System, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mount. Closes 1.01″ from wall. 250 lbs. capacity.

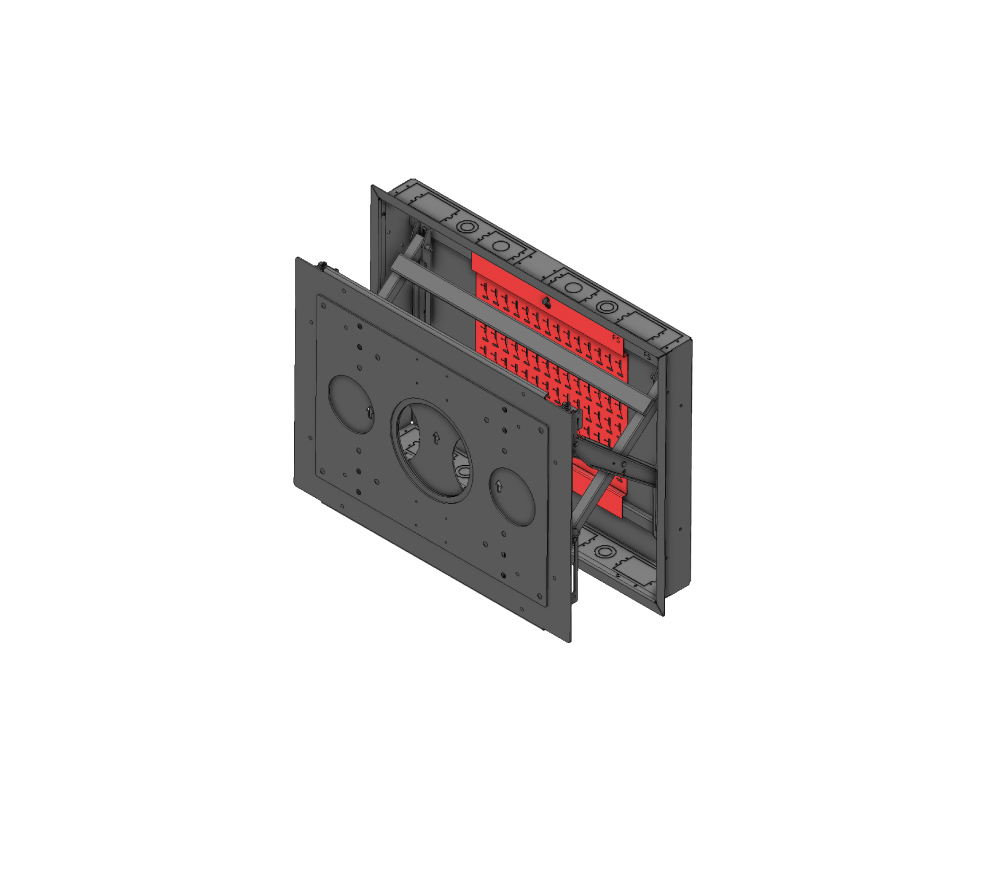

Wallmate 32BF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and ADA mounting plate. Closes up to 0.12″ from wall. 250 lbs. capacity.

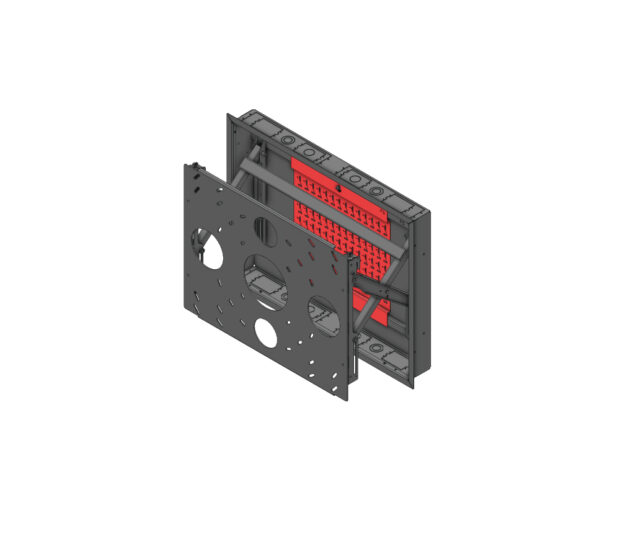

Wallmate 32BF System, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and ADA mounting plate. Closes 0.14″ from wall. 140 lbs. capacity.
