Wallmate LED-A

All-in-One LED Flat Panel Mounting System

For Displays Up to 700 lbs*10

The Wallmate LED-A series is designed to hold All-in-One LED displays or flat panel displays from 65″ up to 137″, while enabling easy service access.

  • New Unique proprietary roller X-ARM allows exceptionally smooth and easy operation under high weight loads.
  • New Flush back box has been designed from the ground up to support heavy weight loads.
  • Mounting interfaces are made to order for up to 137″ dia. All-in-One.
Download Spec Sheet
  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • New Flush back box has been designed from the ground up to support heavy weight loads.
  • Includes electrical knock outs for conduit and single gang boxes.
  • New Unique proprietary rollers X-ARM allows exceptionally smooth and easy operation under high weight loads.
  • Mounting interfaces are made to order for up to 137″ dia. All-in-One.



Wallmate LED-A Product Specifications



Structure in WallCannot be stud mounted. Requires in wall structure by RPV or Structural team.
Min. Landscape and Portrait Panel Size65″
Max Recommended Display Size Dia. 16:9137″
Max Display Size Dia. 21:9126″
Max Display Thickness Hit ADA – Non Shift3.4″ including interface*2
X-ARM Opening Distance (wall to back of display)15.44″*9
X-ARM Closed Distance (wall to back of display)As low as 0.6″
Horizontal Shift*60″
Vertical Shift*60″
X-ARM Plumb Alignment-0.62° to 0°
Display Weight Capacity700 lbs.
Approx. Display Weight Capacity*5 / X-ARM Max Load700/820
Internal Mount Space X-ARM (WxHxD)24.1″ x 19.34″ x 4.16″
Peripheral Plate Dim (WxHxD inches)17.5″ x 26.75″ x 0.5″
BOX External Dimensions – no trim (WxHxD)30.38″ x 30.38″ x 3.81″
BOX & Trim External Dimensions (WxHxD)32.1″ x 32.1″ x 3.81″
Plate Attach Pattern to X-ARM (WxH)26.5″ x 11″ x 11″
1-Gang Box Positions (top and bottom)4 each
Conduit Knock Outs (top)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position2
1″ Metal Multi-Piece TrimIncluded with back box
Weight200 lbs.*8



*1: Mounting is possible. Call 714-991-6400 for details.
*2: Call for design assistance.
*3: Larger display sizes are possible but may impede access to the peripheral mounting plate.
*4: Changing from flat panels to LED systems requires a different mount interface. Call for design assistance.
*5: LED system vary greatly for mounting requirements. Exact LED weight TBD based on mount interface requirements.
*6: Shift range based on 600mmW x 400mmH hole pattern.
*7: Shift based on optional ADA-HVSB mounting plate.
*8: Estimated weight, weight varies by LED. Call for specific weights.
*9: Depth may change by interface
*10: When 32MAX series back boxes are installed in 14-gauge studs, the weight limit is limited to 350 lbs.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.



Wallmate LED-A

All-in-One LED Mounting plate - Pull out Wallmate 32MAXB6 kit

(RPWM-32MAXB6-XMR-LED-A)

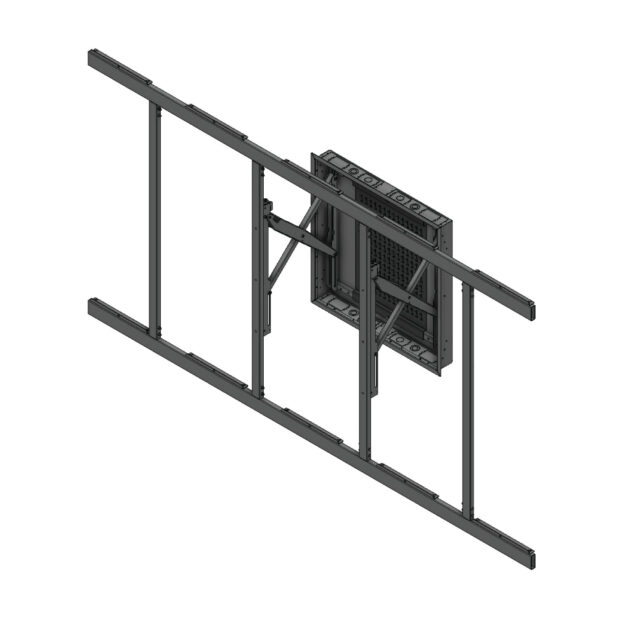

Wallmate 32MAXB6 System for All-in-one LED systems up to 137″ diagonal. Includes back box, peripheral mounting plate, box trim bezel, Heavy duty Roller X-ARM system, and made to order LED All-in-one mounting frame. Up to 700 lbs. display weight.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate LED-T

Tile Based LED Mounting Plate - Pull out Wallmate 32MAXB6 kit

(RPWM-32MAXB6-XMR-LED-T)

Wallmate 32MAXB6 System for tile based LED systems up to 137″ diagonal. Includes back box, peripheral mounting plate, box trim bezel, Heavy duty Roller X-ARM system, and made to order LED Tile mounting frame, up to 5×5 tile array. Up to 700 lbs. display weight.



CAD Drawing (PDF) download

CAD Drawing (dwg) download
