Flush In-Wall Flat Panel Mounting System for ADA Compliance

For Displays Larger than 65″ & up to 325 lbs

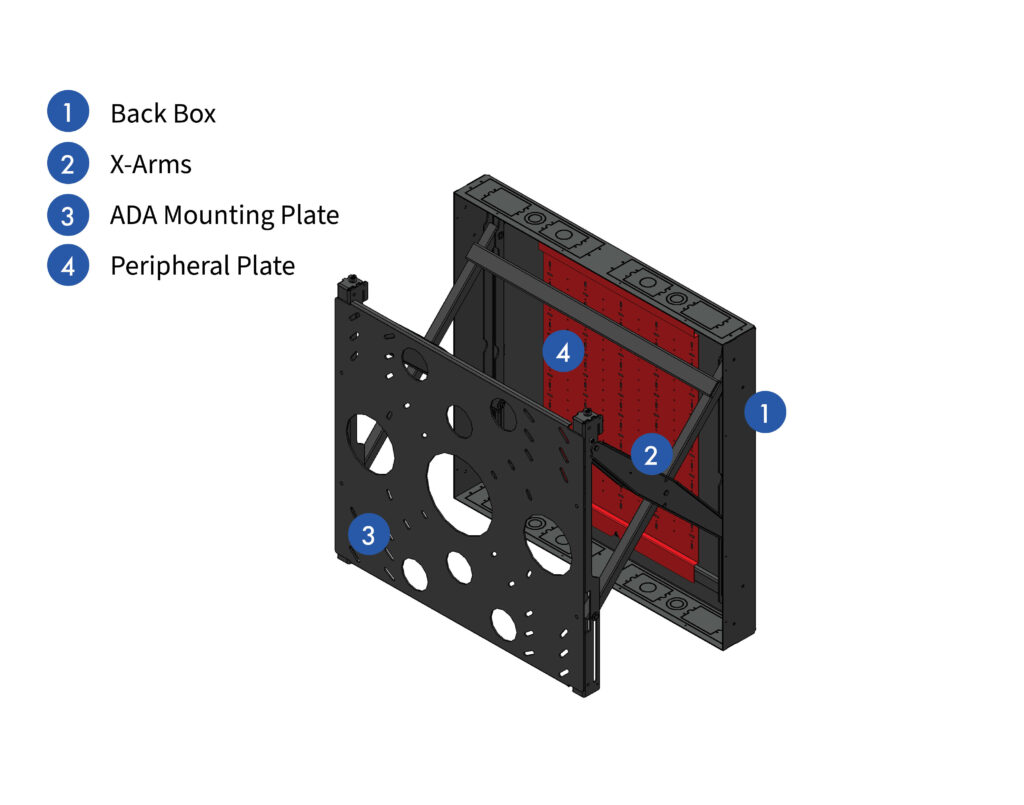

Wallmate Flush integrates the back box, display mounting plate, and AV device mounting into one complete system while maintaining a flush display-to-wall profile. This system is ideal for panels over 65”, including new 86” and 98” panels that are 3.8” thick, that need to achieve ADA compliance.

  • New Closes to as low as 0.0” to 0.12” from the wall. The X-Arms have been redesigned to enable a flush closure.
  • New Slim X-ARM system makes the display seem feather light enabling easy and safe service and setup access.
  • New ADA mounting plate is custom made to mount specific 65 in.+ panels. The panel can be mounted portrait or landscape.
  • New Flush back box has been redesigned to enclose the x-arms completely to enable flush closure.
Download Spec Sheet
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by faciliating AV equipment to be pre-dressed, and pre-tested.
  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Included electrical knock outs for conduit and single gang boxes removes coordination of box locations when a display size changes.
  • Manufactured with 11 to 14-gauge steel, in the USA, to create a rigid mount that will remain stable and level.
  • Only simple tools such as a drill, screwdriver, and Allen key are needed to install the system.
  • Mounts directly to studs which eliminates the need for surface blocking. Contractors can install the back box during the construction phase.



Wallmate 32MAXBF-XMS-ADA Product Specifications



Minimum Landscape and Portrait Panel Size65″ and up
X-ARM Opening Distance (wall to back of display)14.5″
System Closed Distance (wall to back of display)0.0″ to 0.12″
Weight capacity325 lbs.
Internal Mount Space X-ARM (WxHxD)24.1″ x 19.5″ x 3.558″
BOX External Dimensions (WxHxD) – no trim30.38″ x 30.38″ x 3.875″
BOX & Trim External Dimensions (WxHxD)32.075″ x 32.075″ in x 3.888”
ADA Display Mounting Plate SizeMade for each display. Call for details (714) 991-6400.
1 Gang Box Positions (top)4 each
Aux Box Knock Outs (bottom)2 each
Conduit Knock Outs (top)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Crestron Flex CapableYes
Weight96 lbs

Request 2022 Wallmate Price List

Request Price List

Inside

Wallmate RPWM-32MAXBF-XMS-ADA Kit with ADA Mounting Plate
