In-Wall Flat Panel Mounting System

To Achieve ADA Compliance on 2.5″ Stud Walls

For Displays Larger than 55″ & up to 125 lbs.

The Wallmate 16BS with Universal mount is single stud bay system designed for mounting into 2.5″ stud walls, while maintaining the ultimate in display mount flexibility with a low profile.

Closes to 1.49″ from the wall to help achieve ADA compliance.
Slim back box has been redesigned to fit in 2.5″ wall studs.
Slim X-arm system makes the display seem feather light enabling easy and safe service and setup access

Download Spec Sheet

Specifications
Kits

Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment to be pre-dressed, and pre-tested.
Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
Included electrical knock outs for conduit and single gang boxes removes coordination of box locations when a display size changes.
Manufactured with 11 to 14-gauge steel, in the USA, to create a rigid mount that will remain stable and level.
Only simple tools such as a drill, screwdriver, and Allen key are needed to install the system.
Mounts directly to studs which eliminates the need for surface blocking. Contractors can install the back box during the construction phase.

Wallmate 16BS-XMS-UNV Product Specifications

Stud Depth In Wall	2.5″
Min. Landscape and Portrait Panel Size	50″ L / 65″ P
Max Recommended Display Size Dia. 16:9	65″*³
Max Display Thickness Hit ADA – Non Shift	2.51″
X-arm Opening Distance (wall to back of display)	11.01″
X-arm Closed Distance (wall to back of display)	1.49″
Horizontal Shift	+/-9.4″ H*⁶
Vertical Shift	+5.02″-9.09″ V*⁶
Rotation of Display	0-6.5mm height adjust per VESA location
X-arm Plumb Alignment	-1.03° to 0°
Display Weight Capacity	125 lbs.
Internal Mount Space X-arm (WxHxD)	8.25″ x 10.5″ x 3.47″
Peripheral Plate Dim (WxHxD inches)	5.5″ x 17.4″ x 0.5″
Box External Dimensions – No Trim (WxHxD)	14.40″ x 23.34″ x 3.13″
Box & Trim External Dimensions (WxHxD)	16.1″ x 25.0″ x 3.2″
Plate Attach Pattern to X-arm (WxH)	11″ x 11″
Default VESA Pattern Width	400, 600
Default VESA Pattern Height	400
Max Horizontal and Vertical	800 x 600
1-Gang Box Positions (top and bottom)	2 each
Conduit Knock Outs (top)	2 qty. x 1″
Conduit Knock Outs (bottom)	2 qty. x 1″
AUX Tray Position	0
1″ Metal Multi-Piece Trim	Included with back box
Weight	51.8 lbs.

*6: Shift range based on 600mmW x 400mmH holes pattern. For UNVM based on 300mmW x 300mmH holes pattern. For UNV-158 based on 900mmW x 600mmH holes pattern.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.

Universal Mount - Pull out Wallmate 16BS kit

(RPWM-16BS-XMS-UNV)

Wallmate 16BS system, includes Slim back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mount. Closes to 1.49″ from wall. 125 lbs. capacity.

CAD Drawing (PDF) download

CAD Drawing (dwg) download

Request Current Wallmate Price List

Request Price List

Inside

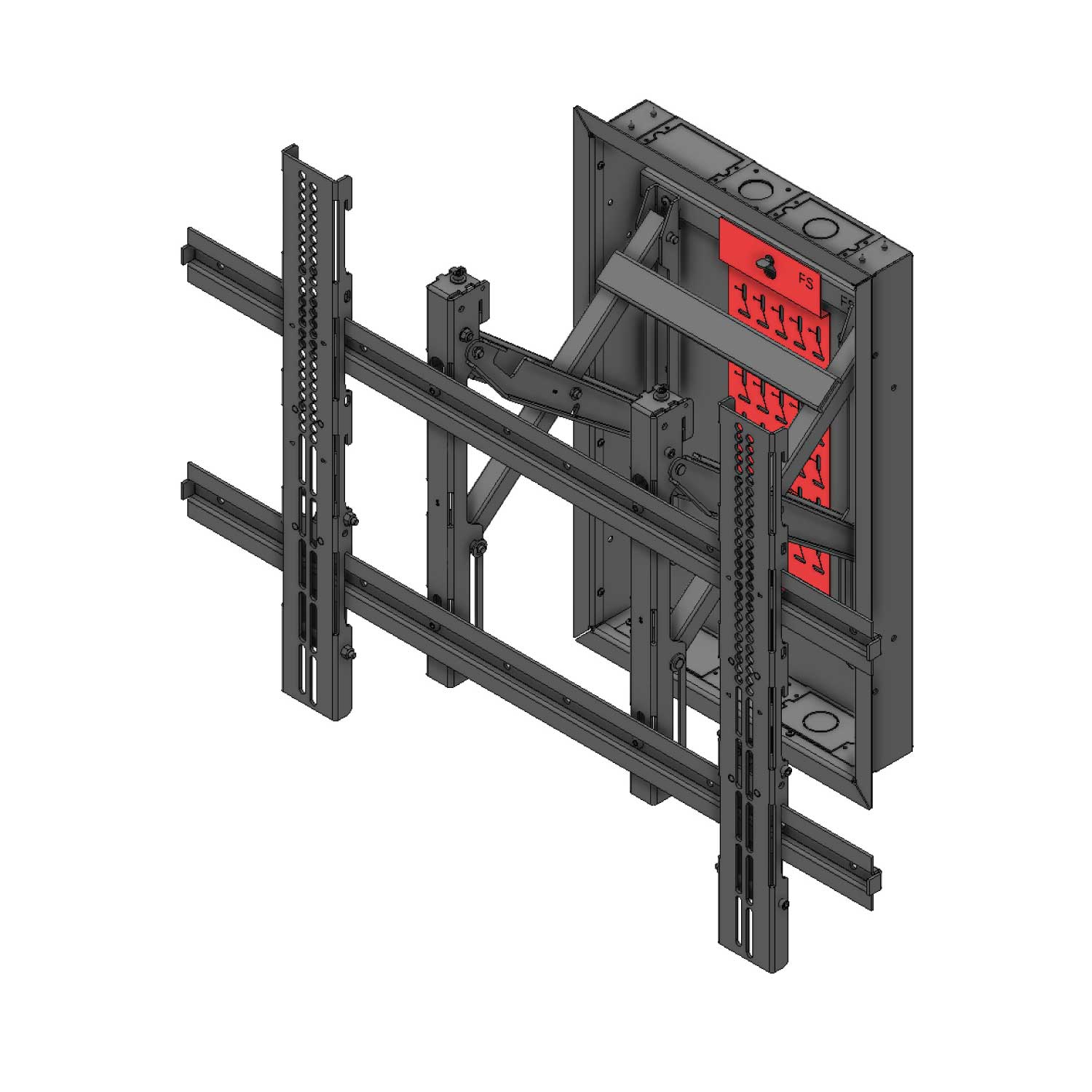

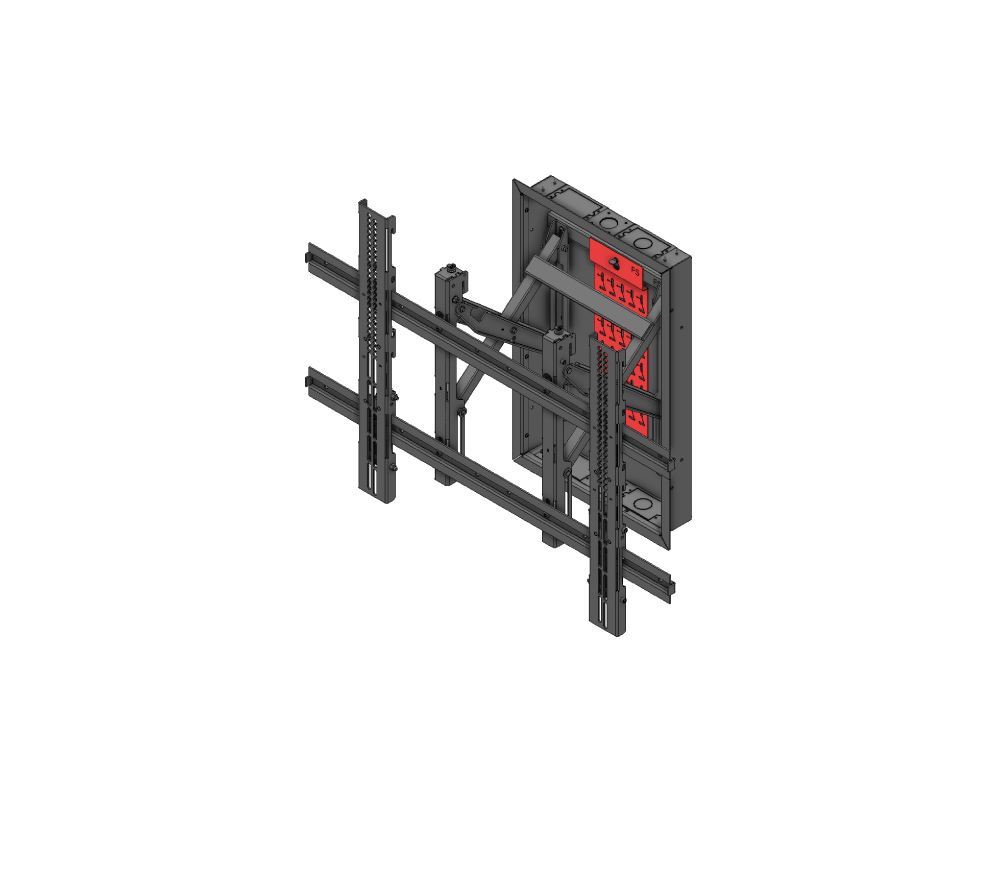

Wallmate RPWM-16BS-XMS-UNV System with Universal Mounting Plate

Wallmate 16BS
