In-Wall Flat Panel Mounting System

FOR DISPLAYS UP TO 350-400 LBS

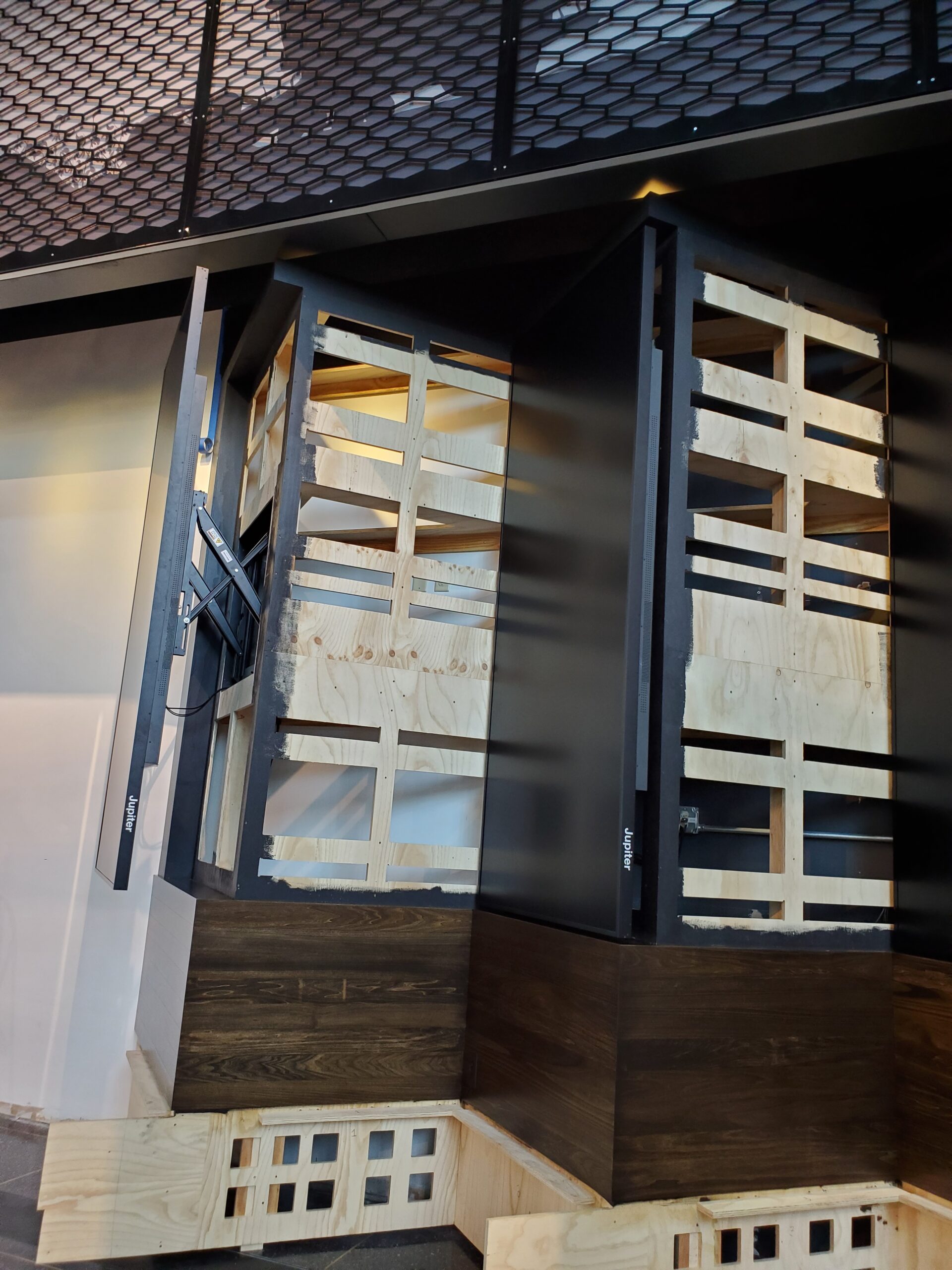

Wallmate 32MAXB integrates the back box, display mounting plate, and AV device mounting into one complete system while maintaining a thin display-to-wall profile.

  • Thin wall to display profile helps achieve ADA compliance
  • Manufactured with 11 to 14-gauge steel in the USA to create a rigid mount that will remain stable and level.
  • Universal mounting plate mounts most displays with non-standard VESA patterns without custom components or a complex installation process.
  • X-ARM system makes the display feather-light and easy for the end-user to easily pull and push the display to access the rear equipment.
  • Included electrical knock outs for conduit and single gang boxes enables easier installation details and removes coordination of box locations when a display size changes.

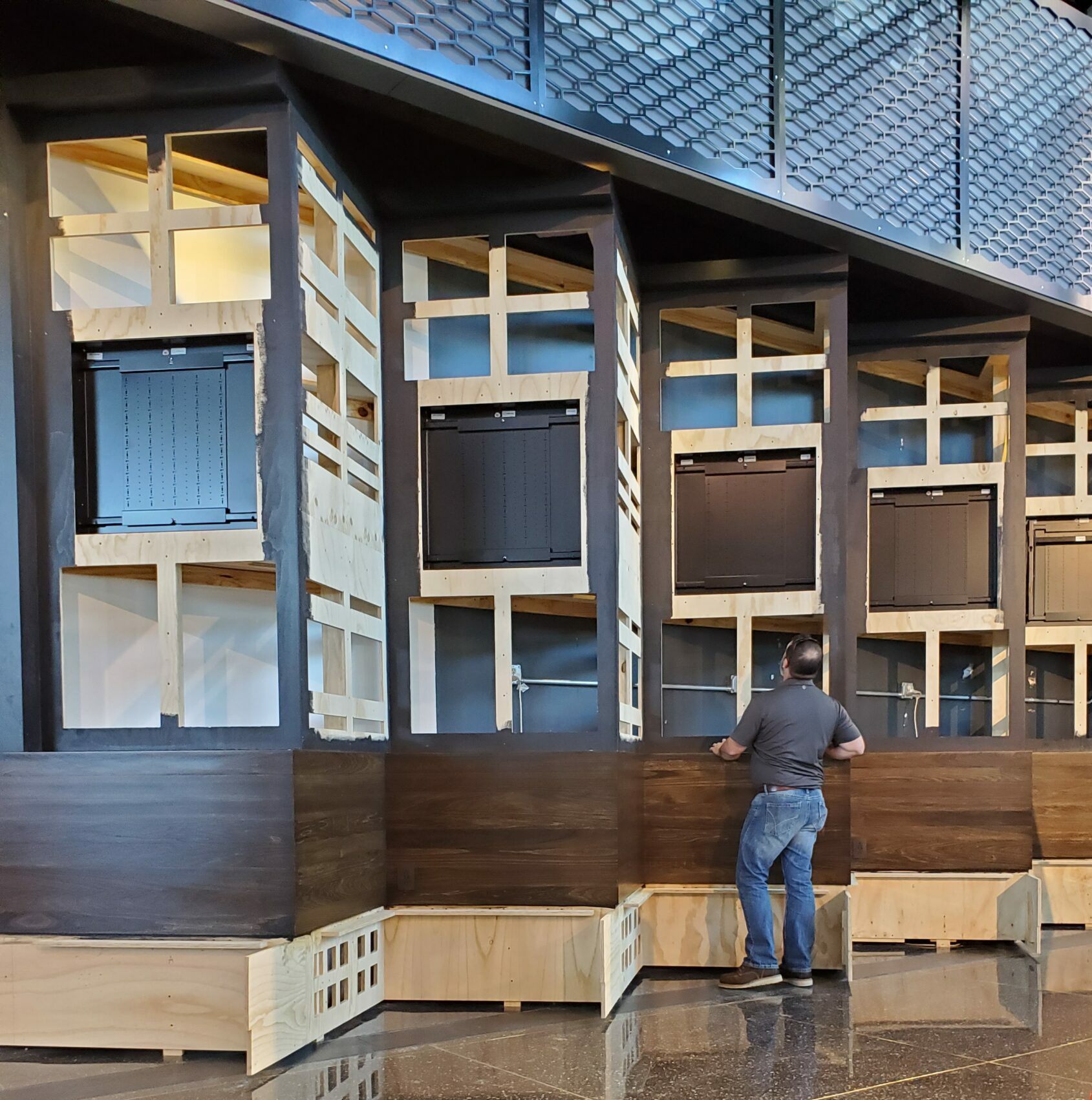

  • Back box mounts directly to studs which eliminates the need for surface blocking. AV installation contractors install the AV wall box during the construction phase.
  • Peripheral device plates can be pre-dressed and AV equipment pre-tested to rapidly deploy dozens of displays.
  • Ample peripheral storage space in the in-wall storage box (back box) makes it easy to mount all the essential AV gear behind the display.
  • Only simple tools such as a drill, screwdriver and Allen key are needed to mount the system.
Download Spec Sheet

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







Min. Landscape Panel Size65″
XARM Opening distance (wall to back of the display)16″
XARM Closed Distance (Wall to back of the display)1.49” (UNV), 0.98″ (HSB)
Weight capacity350 lbs or 400 lbs with HD X-Arms
Internal Mount Space X-ARM (WxHxD)24.1″ x 19.5″ x 4.13″
BOX External Dimensions (WxHxD) – no trim30.38″ x 30.38″ x 3.81″
BOX & Trim External Dimensions (WxHxD)32″ x 32″ x 3.89″
Universal Mount Size37.26” x 25.23” x 1.01”
1 Gang Box Positions (top)4
2 Gang Box Positions (bottom)4
Conduit Knock Outs (top)4
Conduit Knock Outs (bottom)4
Crestron Flex CapableYes
Weight92 lbs.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.

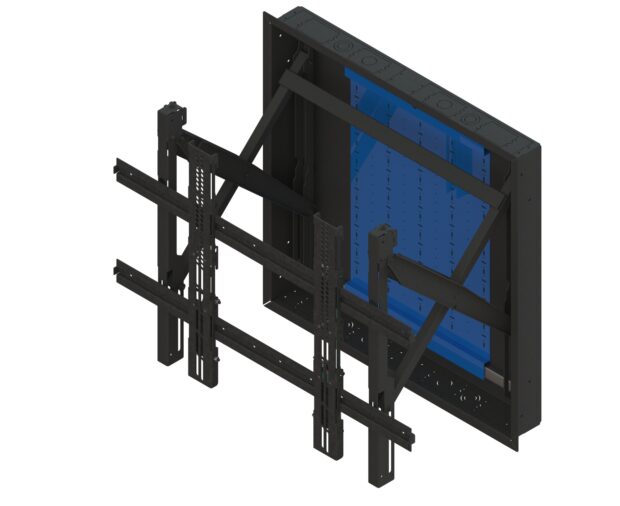

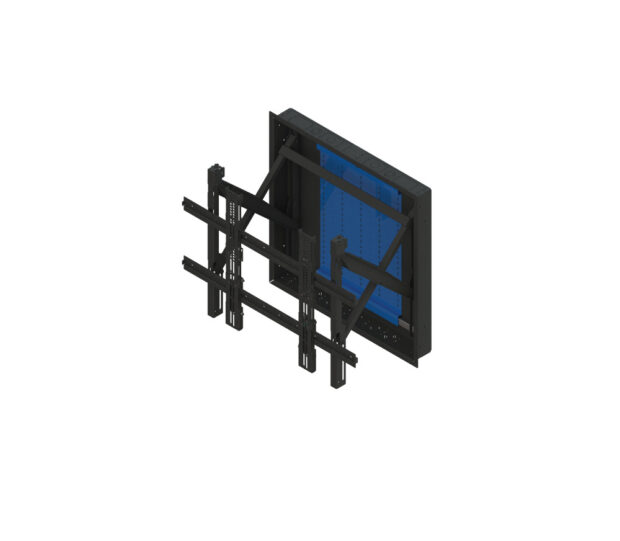

Universal-Pull out Wallmate 32MAXB Kit

(RPWM-32MAXB-XM-UNV)

Closes to 1.49″ from wall. The 32MAXB XARM System, Includes back box, peripheral mounting plate, box trim bezel, X-ARM system, and Universal 64 Mount system. 350 lbs. capacity.

CAD Drawing (PDF) download

CAD Drawing (dwg) download



No Box - Universal-Pull out Wallmate 32MAXB Kit

(RPWM-32MAXB-XM-UNV-NB)

Closes to 1.49″ from wall. The 32MAXB XARM System, X-ARM system, and Universal 64 Mount system. 350 lbs. capacity. Back box sold separately.

CAD Drawing (PDF) download

CAD Drawing (dwg) download

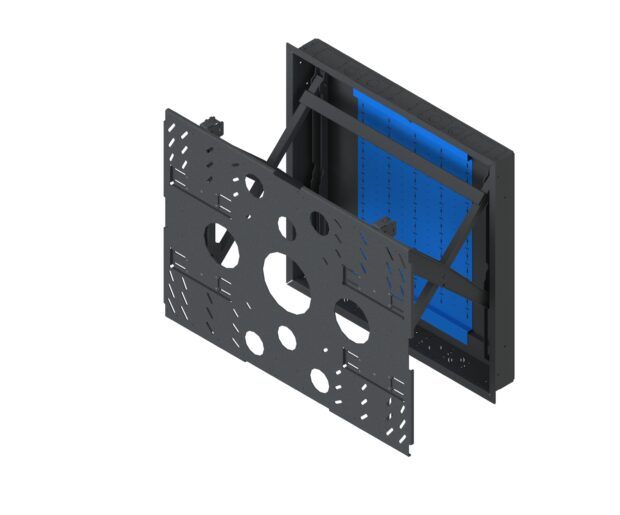

Horizontal shift-Pull out Wallmate 32MAXB Kit

(RPWM-32MAXB-XM-HSB)

Closes to 0.98″ from wall. The 32MAXB XARM System, Includes back box, peripheral mounting plate, box trim bezel, X-ARM system, and Horizontal shift VESA plate with +/- 2″ adjustment. 350 lbs. capacity.

CAD Drawing (PDF) download

CAD Drawing (dwg) download

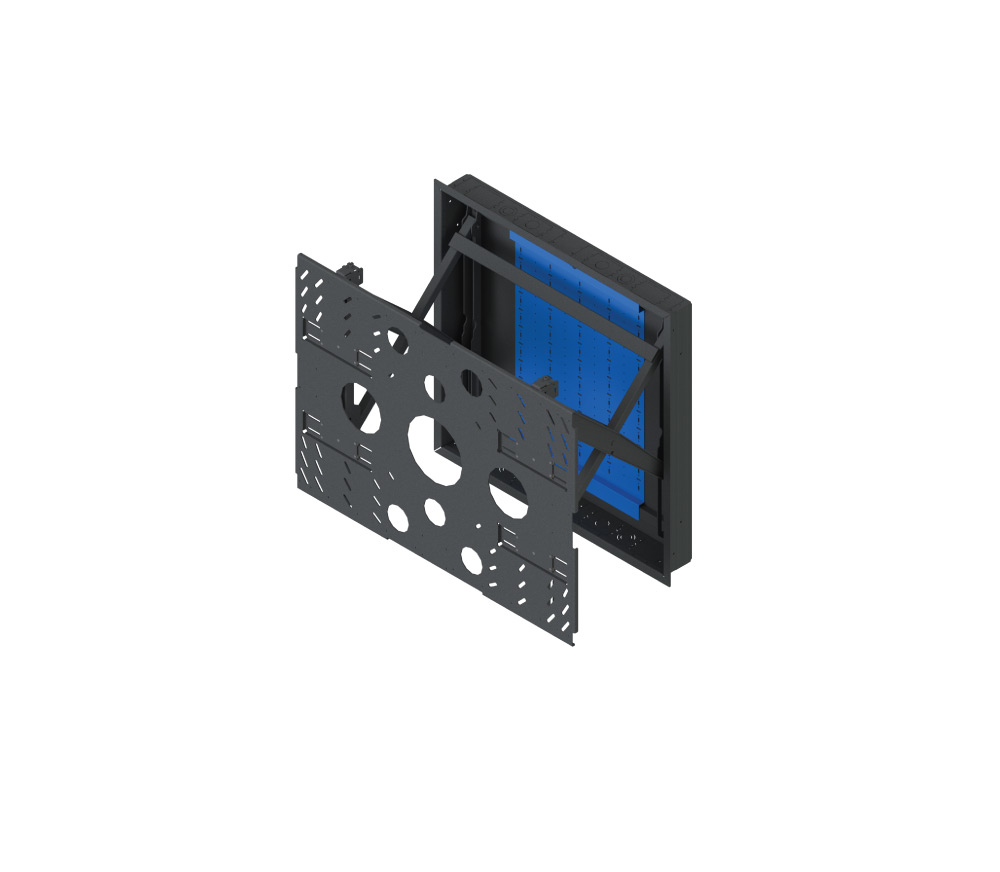

No Box - Horizontal Shift-Pull out Wallmate 32MAXB Kit

(RPWM-32MAXB-XM-HSB-NB)

Closes to 0.98″ from wall. The 32MAXB X-ARM System, Includes X-ARM system, and Horizontal shift VESA plate with +/- 2″ adjustment. 350 lbs. capacity. Back box sold separately.

CAD Drawing (PDF) download

CAD Drawing (dwg) download

Wallmate Parts are essential to Wallmate Kits.



Wallmate 32MAXB Back Box

(RPWM-32MAXB-BOX)

Metal back box for the 32MAXB system. Includes back box, peripheral mounting plate and trim bezel. Integrated mounting points, 4 single gang box knock outs, 4 multi size conduit knock outs, 2 knock outs for bottom auxiliary tray. Mounts direct to 14 studs. 350 lbs. capacity.

CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Accessories are complimentary to Wallmate Kits.

Aux Box

(RPWM-AUXBOX)

In wall accessory tray for holding peripherals, slides into removable bottom panel on back box of 16B, 32B and 32MAXB. Internal space 12.5″ x 7.2″ x 2.5″.



CAD Drawing (PDF) download

Request 2022 Wallmate Price List

Request Price List

RPWM-32MAXB-XM-UNV

Inside the Wallmate 32MAXB Kit with Universal Mounting Plate
