Recessed Camera Box

For Side By Side Camera PTZ Cameras

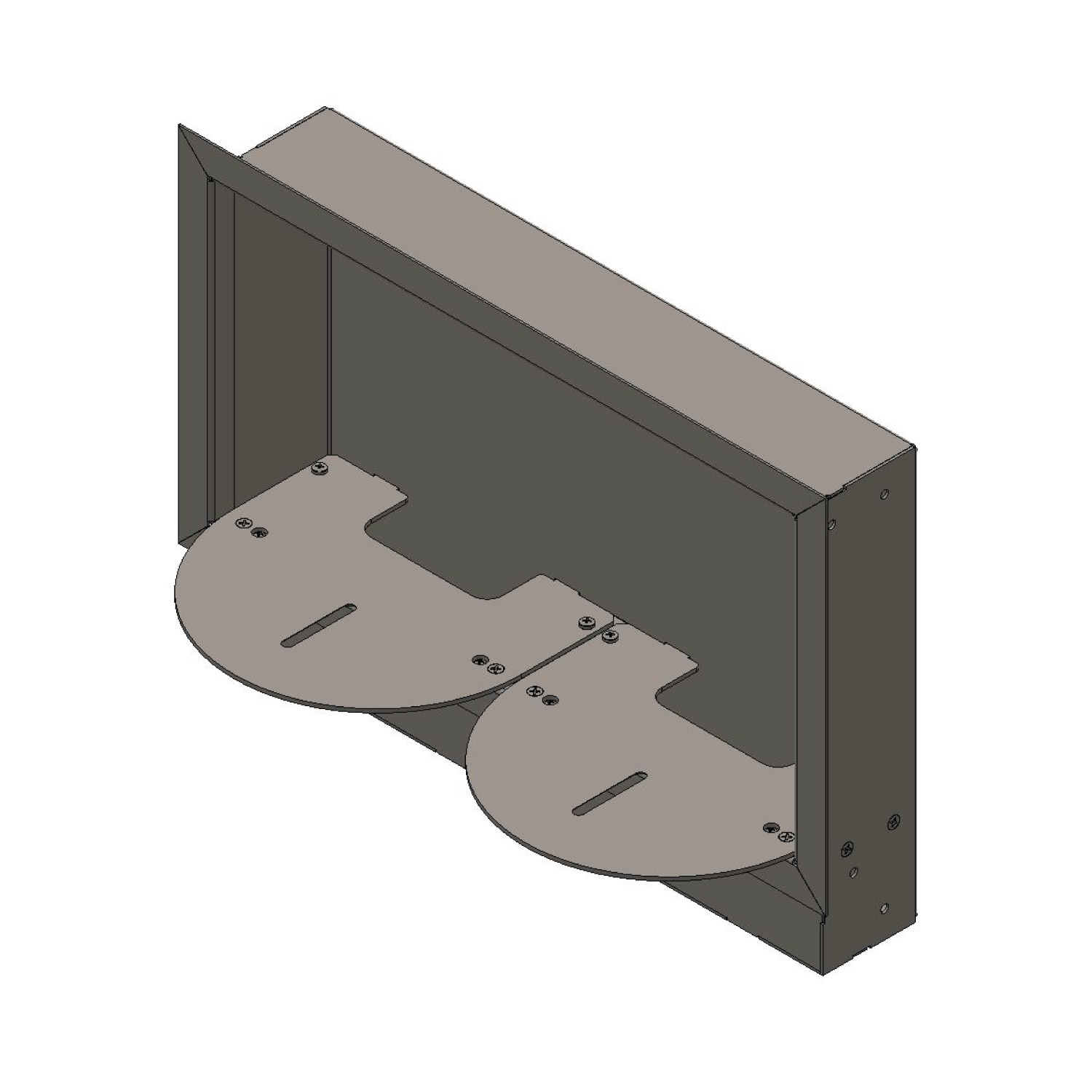

The recess camera box holds two PTZ cameras to be mounted with a reduced depth and clean appearance.

  • Separate in wall box allows for preinstall during dirty construction.
  • Removable device mount plates allow for camera flexibility and future replacements and model changes.
  • Orientation able to be install upright or inverted.
  • Rear Storage area accommodates two narrow single gang box/cover plates, and six conduit knock outs.
Download Spec Sheet
  • 3.825″ recess allows for reduced in room depth of PTZ cameras.
  • Ultra clean appearance with single piece bezel, recessed and flush screws and fastener, and cavity space for transmitters and cabling.
  • Available in black/white powder coat, or primer finish for on site painting.



Wallmate Camera Box Product Specifications





Product Weight18 lbs.
Warranty1 year
Knock Outs2 plates, each plate; two 0.75″ conduit, one 1″ conduit, and 1 gang knock outs
Box Size (Overall)19.03″w x 13.27″h x 3.9″d
Camera Space18.76″w x 13.94″h x as required
Camera Mounting PlateIncluded (made to order)



Camera mounting plate made to order. Contact us for sizes outside the standard option.

Request Current Wallmate Price List

Request Price List
