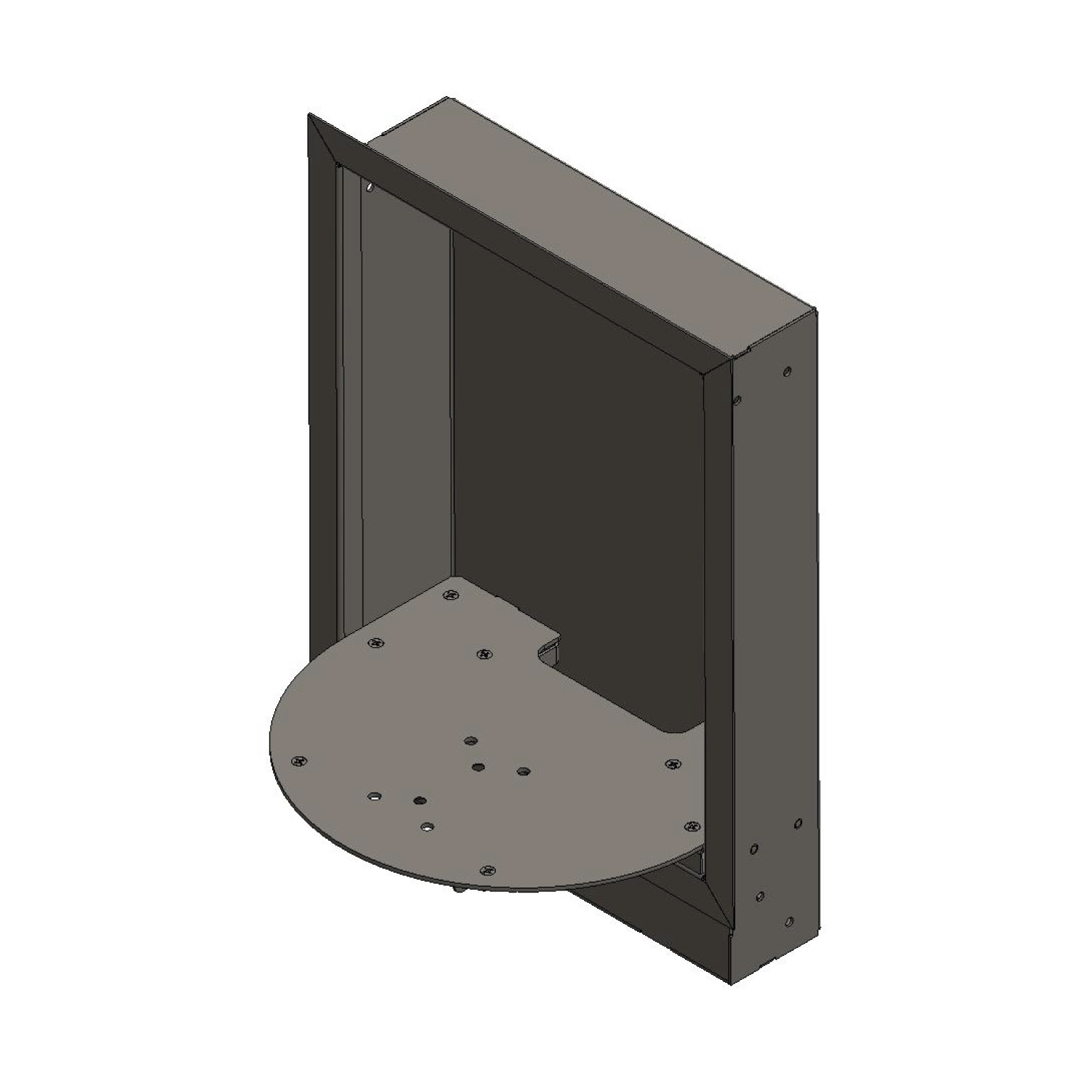

Recessed Camera Box

For Single Large Camera PTZ Cameras

The recess camera box holds a single PTZ cameras to be mounted with a reduced depth and clean appearance.

  • Separate in wall box allows for preinstall during dirty construction.
  • Removable device mount plates allow for camera flexibility and future replacements and model changes.
  • Orientation: able to be install upright or inverted.
  • Oversized rear storage accommodates two 1-gang box knockouts.
Download Spec Sheet
  • 3.825″ recess allows for reduced in room depth of PTZ cameras.
  • Ultra clean appearance with single piece bezel, recessed and flush screws and fastener, and cavity space for transmitters and cabling.
  • Available in black/white powder coat, or primer finish for on site painting.



Wallmate Camera Box Product Specifications





Product Weight17 lbs.
Warranty1 year
Knock Outs1 gang with 1.25″ conduit knock out, and two 0.75″
Box Size (Overall)12.7″w x 18.52″h x 3.9″d
Camera Space12.43″w x 13.94″h x as required
Camera Mounting PlateIncluded (made to order)



Camera mounting plate made to order. Contact us for sizes outside the standard option.
