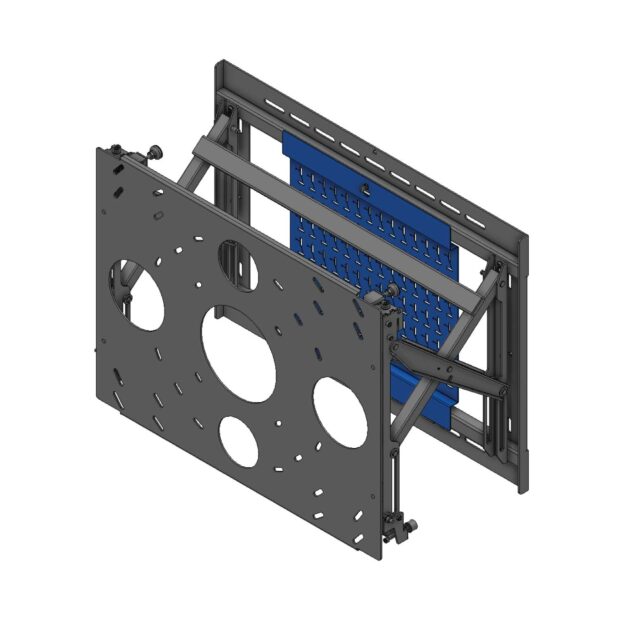

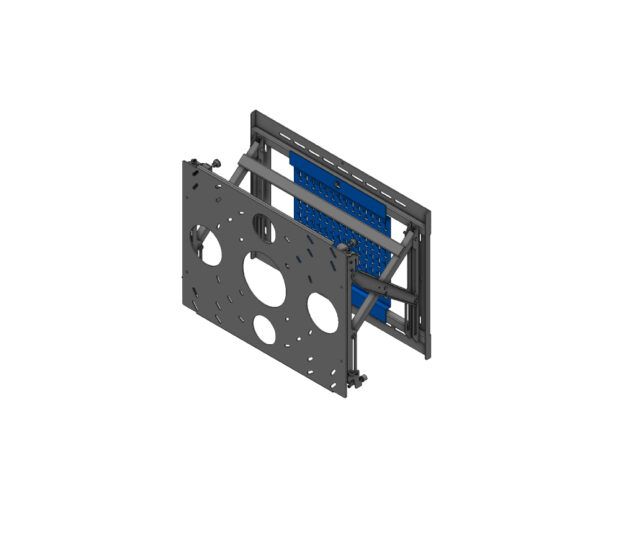

The Wallmate W32B with an OFFSET mount is an on wall system designed for flat panel displays, while maintaining a lower profile, and single person service.
| Min. Landscape and Portrait Panel Size | 50″ L / 65″ P |
| Max Recommended Display Size Dia. 16:9 | 75″*3 |
| Max display size dia. 21:9 | 82″ |
| X-arm Opening Distance (wall to back of display) | 13.54″ |
| X-arm Closed Distance (wall to back of display) | 4.03″ |
| Horizontal Shift | 0″ |
| Vertical Shift | 0″ |
| Rotation of Display | +/-2° |
| X-arm Plumb Alignment | -1.03° to 0° |
| Display Weight Capacity | 225 lbs. |
| Internal Mount Space X-arm (WxHxD inches) | 23.75″ x 10.5″ x 3.56″ |
| Peripheral Plate Dims (WxHxD inches) | 16.5″ x 17.4″ x 0.5″ |
| Wall Plate Dims (WxHxD inches) | 30.38″ x 23.34″ x 3.81″ |
| Plate Attach Pattern to X-arm (WxH inches) | 26.5″ x 11″ |
| Default VESA Pattern Width | Up to 600 |
| Default VESA Pattern Height | Up to 500 |
| Max Horizontal or Vertical | 800 x 600 |
| System Weight | 57 lbs. |
*3: Larger display sizes are possible but may impede access to the peripheral mounting plate.

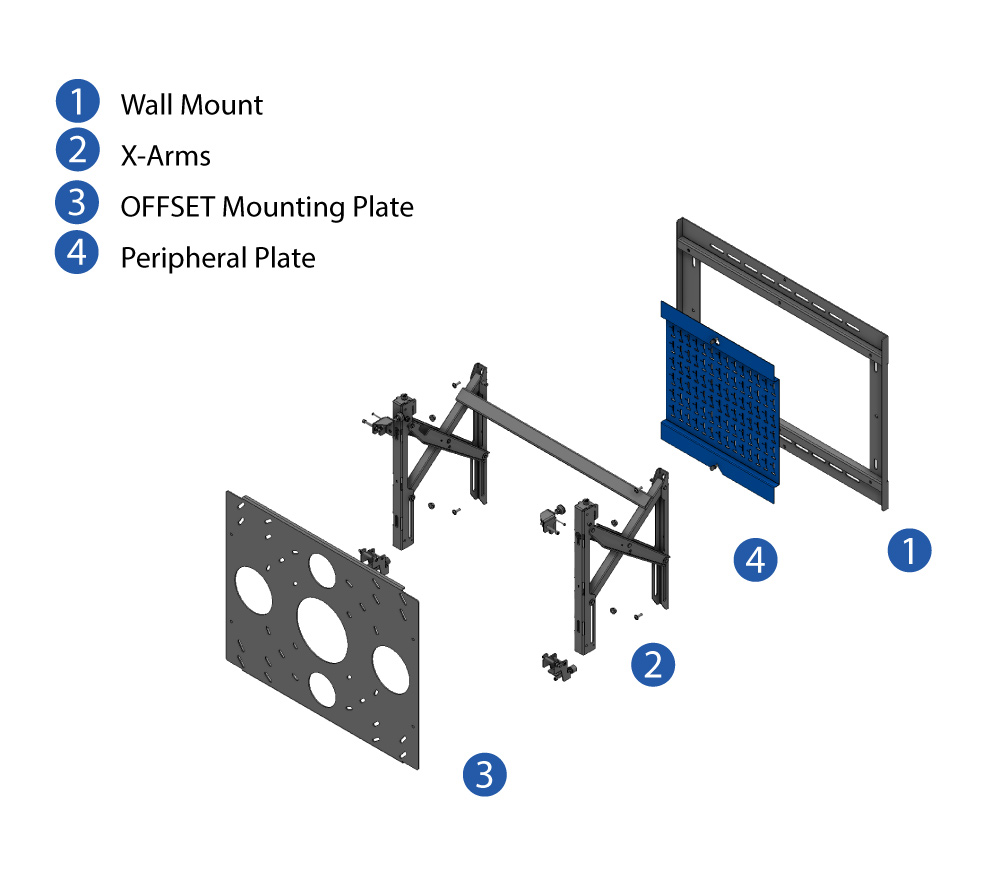

Surface mounted W32B series system, includes wall attach bracket, peripheral mount plate, Slim x-arm, touch kit, and offset display mounting plate. Closes 4.03″ from wall. 225 lbs. capacity.
