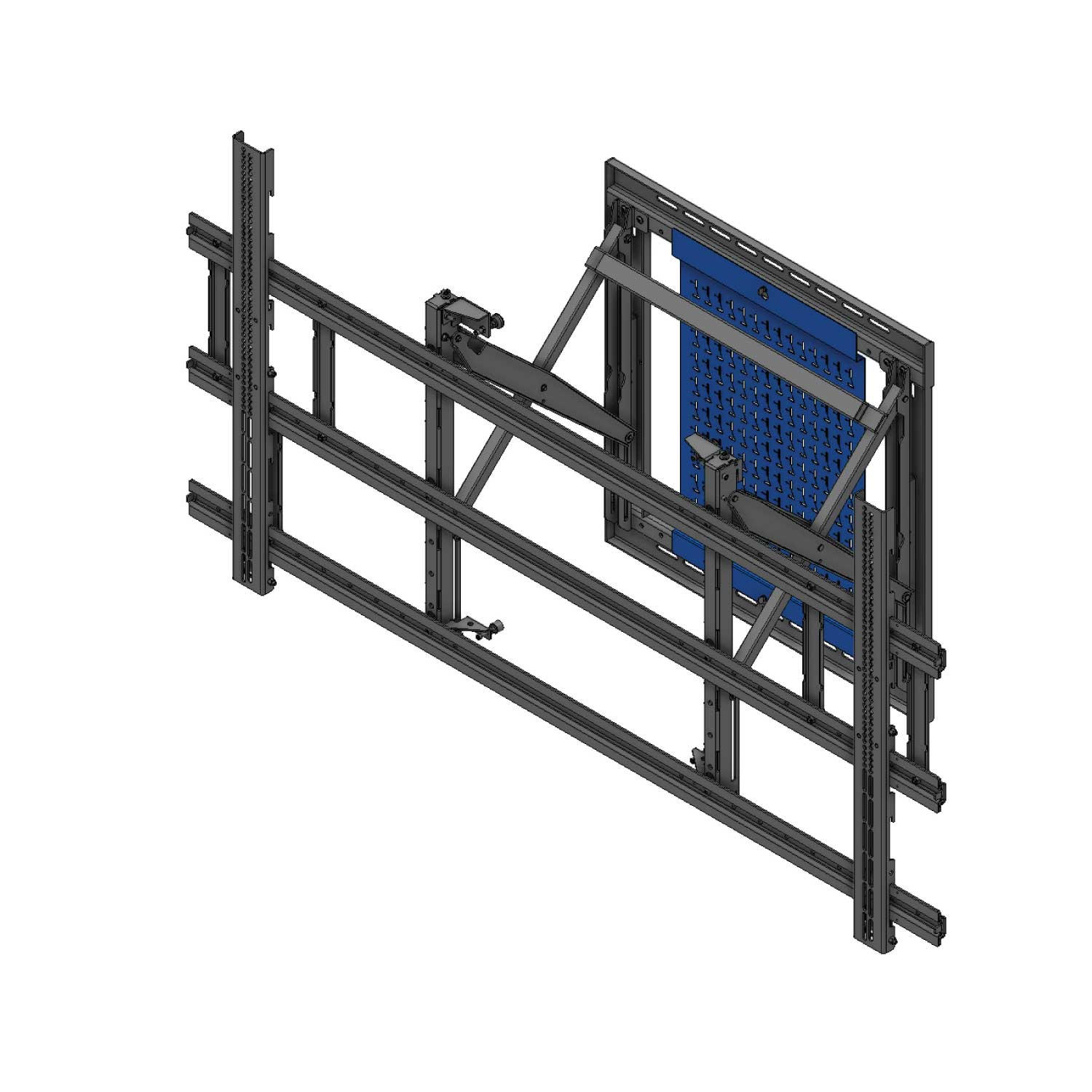

On Wall Flat Panel Mounting System

For Displays Up to 425 lbs

The Wallmate W32MAXB6 with Universal 158 mount is an on wall system designed for flat panel displays, while maintaining the ultimate in display mount flexibility, and single person service.

  • Unique proprietary roller x-arm allows exceptionally smooth and easy operation under high weight loads.
  • Wall mount plate has been designed to allow use of common standard Wallmate x-arms and accessories.
  • Universal 158 mounting interface mounts most displays with VESA pattern, 200 x 200 to 1700 x 800.
Download Spec Sheet
  • Wallmate Mount Compatibility Checker
  • Specifications
  • Kits
  • Documentation

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







  • Peripheral storage space makes it easy to mount AV gear behind the display.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • Wall mount plate has been designed to allow use of common standard Wallmate x-arms and accessories.
  • Includes touch and lock kits to hold unit stabled and closed on imperfect walls. X-arm includes plumb/leveling feature.
  • Unique proprietary roller x-arm allows exceptionally smooth and easy operation under high weight loads.
  • Universal 158 mounting interface mounts most displays with VESA pattern, 200 x 200 to 1700 x 800.



Wallmate W32MAXB6-XMR-UNV-158 Product Specifications





Min. Landscape and Portrait Panel Size85″
Max Recommended Display Size Dia. 16:9120″
Max display size dia. 21:9110″
X-arm Opening Distance (wall to back of display)20.64″
X-arm Closed Distance (wall to back of display)5.64″
Horizontal Shift+/- 12.5″ H*6
Vertical Shift+7.38″/-9.71″ V*6
Rotation of Display0-6.5mm height adjust per VESA location
X-arm Plumb Alignment-0.62° to 0°
Display Weight Capacity425 lbs.*10
Internal Mount Space X-arm (WxHxD inches)23.75″ x 19.44″ x 3.68″
Peripheral Plate Dim (WxHxD inches)17.5″ x 26.75″ x 0.75″
Wall Plate Dims (WxHxD inches)30.38″ x 31.25″ x 0.87″
Plate Attach Pattern to X-arm (WxH inches)26.5″ x 11″
Default VESA Pattern Width200 – 1700
Default VESA Pattern Height200 – 800
Max Horizontal or Vertical1700 x 800
System Weight138 lbs.



*6: Shift range based on 600mmW x 400mmH hole pattern. For UNVM based on 300mmW x 300mmH holes pattern. For UNV-158 based on 1000mmW x 600mmH holes pattern.
*10: When 32MAX series back boxes are installed in 14 gauge studs, the weight limit is limited to 350 lbs.

Wallmate On Wall System Kits are our all-in-one solution that include the x-arms, display mounting plate, wall attach bracket, and peripheral mounting plate.



Wallmate 32MAXB6 Surface mount system with offset plate

(RPWM-W32MAXB6-XMR-OFFSET)

Surface mounted W32MAXB6 series system, includes wall attach bracket, peripheral mount plate, heavy duty roller x-arm, touch kit, lock kit, and offset display mounting plate. Closes 4.46″ from wall. 425 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate 32MAXB6 surface mount system with Universal Mount

(RPWM-W32MAXB6-XMS-UNV-158)

Surface mounted W32MAXB6 series system, includes wall attach bracket, peripheral mount plate, heavy duty roller x-arm, touch kit, lock kit and Universal 158 display mounting plate. Closes 1.83″ from wall. 425 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Request Current Wallmate Price List

Request Price List

RPWM-W32MAXB6-XMR-UNV-158

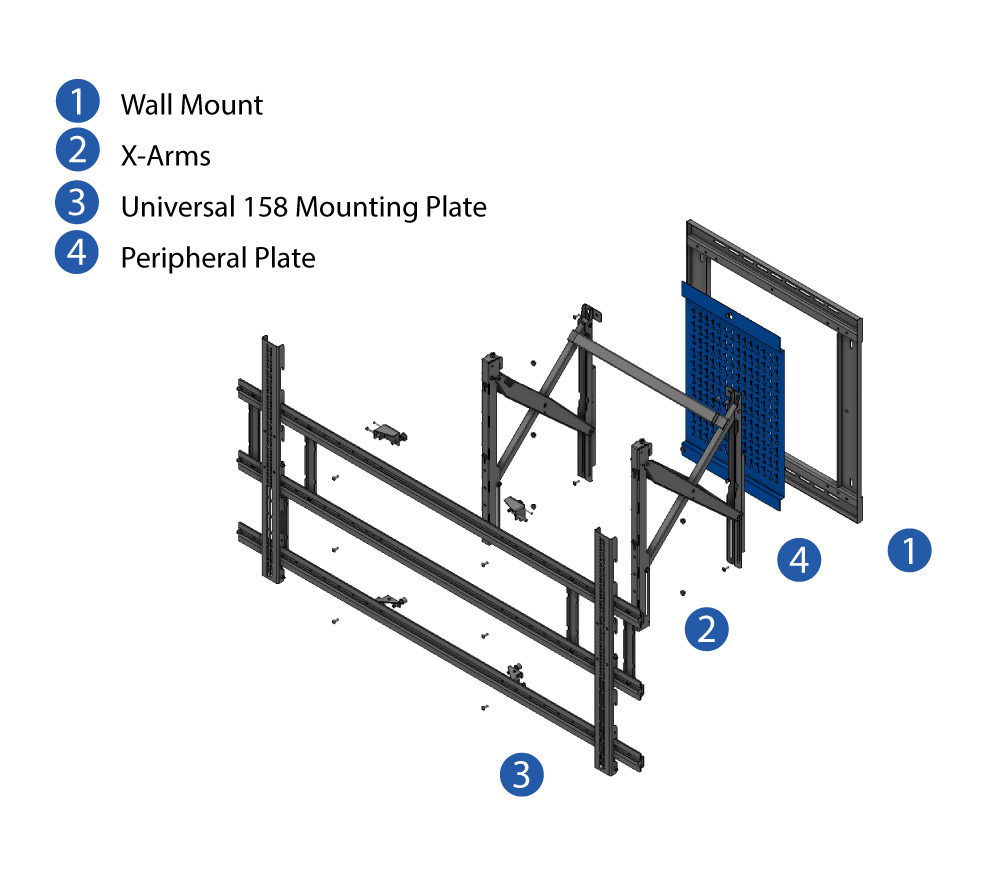

Inside the Wallmate W32MAXB6 Kit with Universal 158 Mounting Plate
