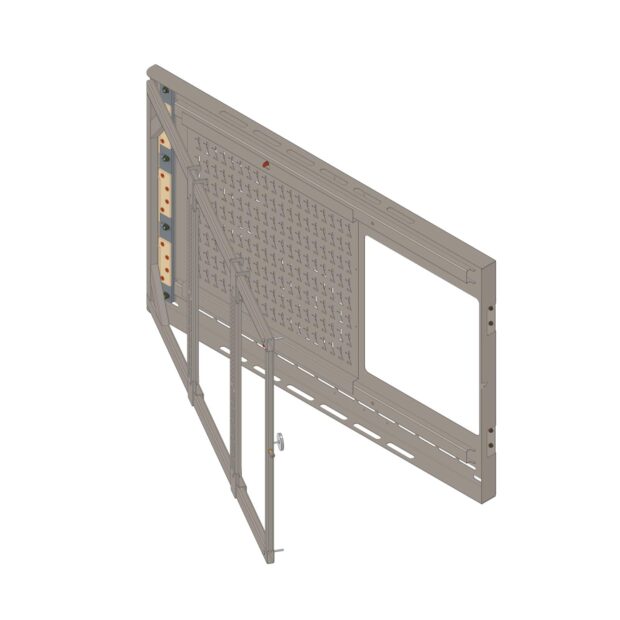

Wallmate Surface B for Flat Panel Mounting

On-Wall Flat Panel Mounting System

For Displays Up to 150 lbs

The Wallmate Surface B is an on-wall mounting system for flat panel displays featuring a swing open door and peripheral equipment storage.

Swing open door creates easy service access.
Closes to 2″ from back of display to wall to assists with ADA compliance.
Engineered with 11 to 14-gauge steel and manufactured in the U.S.A.
Removable device mount plates allow quick exchange service and assembly line style, off-site preparation.
Oversized rear openings accommodate easy installation and coordination of junction boxes up to 14.5″ x 14.5″
Dual display ready allows the use of 2-unit side by side.

Download Spec Sheet

Wallmate Mount Compatibility Checker
Specifications
Kit
Accessories

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.

Wallmate Surface B Product Specification

Capacity	150 lbs.
Product Weight	140 lbs.
Warranty	1 year
Display Size	Mounts 55″-75″ flat panels
Peripheral plate mounting area	23.5″w x 18.5h x 1.93″ per unit
Size	45.8″ x 27.5″ x 1.93″
VESA	200 x 200 up to 600 x 400
Door leveling	+/-1 degree

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.

Wallmate Dual Surface B

(RPWM-SURFB-DL)

Two Wallmate Surface B unit, includes one small standard spacer, and one camera spacer.

Wallmate Dual Surface Spacer Kit

(RPWM-SURFB-SP-KIT)

Wallmate Dual Surface B spacer kit for 65″ and 75″ displays. Includes large center spacer, and 2 smaller spacers.

Wallmate Surface B Kit

(RPWM-SURFB)

Surface B mounted swing open style system, large rear opening with single large peripheral plate. 2″ thin, 150 lbs. capacity. Suitable for displays in landscape from 55″-75″.

Wallmate Accessories are complimentary to Wallmate Kits.

Surface KCAM mounting kit for Wallmate SURFBDL plates

(RPWM-UC-SURFB-DL-KCAM)

Camera mounting system for Wallmate Surface B Dual mounting plates. Remains static to wall. Includes a center mounting bracket and camera mounting plate.

Surface KCAM mounting kit for Wallmate SURFB unit

(RPWM-UC-SURFB-KCAM)

Camera mounting system for Wallmate Surface B, opens with door.

Small behind display box

(RPWM-BD-77)

Metal welded 7.5″ x 7.5″ behind display box. Includes 2 single gang knock outs, 2 multi size conduit knock outs, and 2 1″ knock outs. Blue.

Request Current Wallmate Price List

Request Price List

Wallmate RPWM-SURFB Kit Exploding View

Wallmate Surface B
