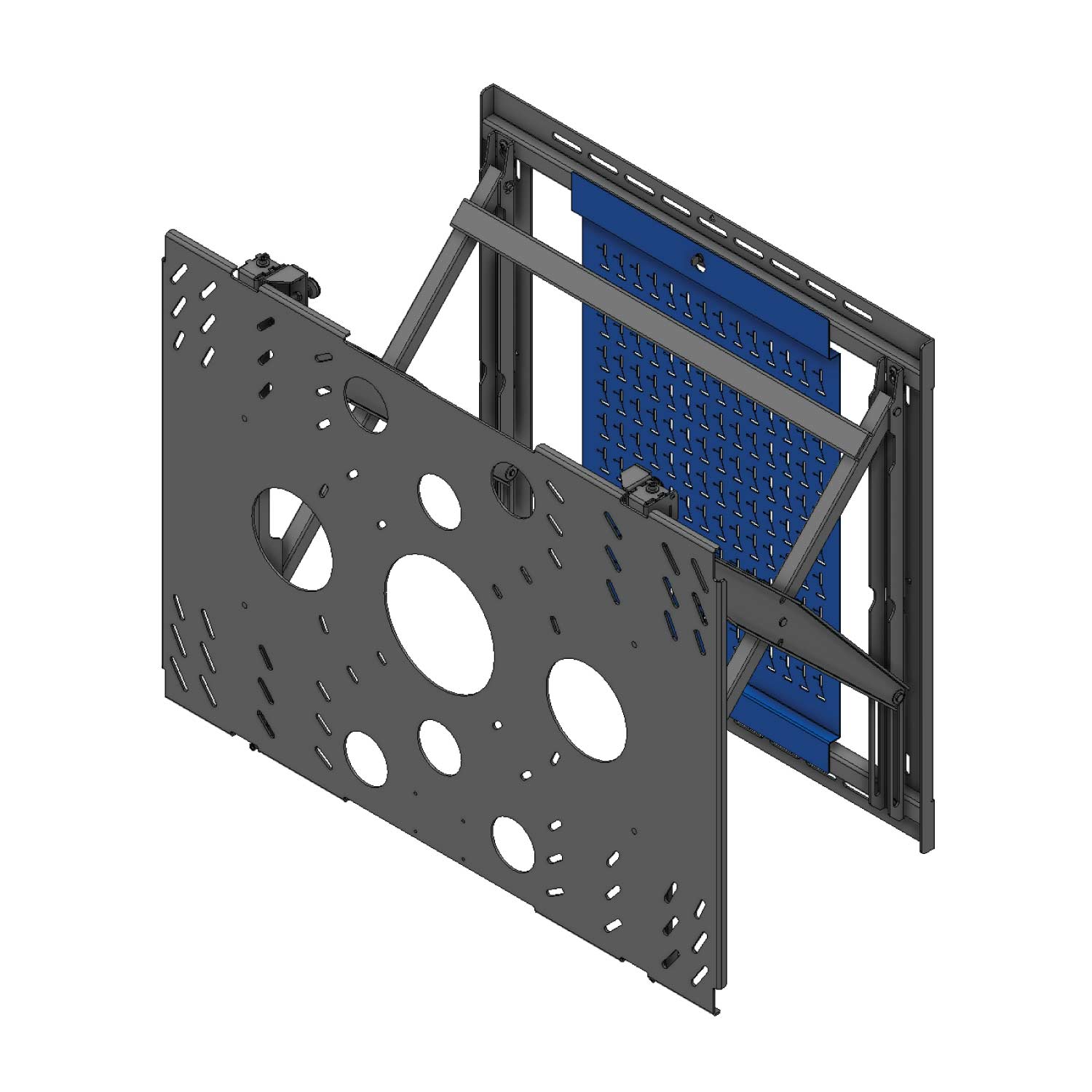

The Wallmate W32MAXB with an OFFSET mount is an on wall system designed for flat panel displays, while maintaining a lower profile, and single person service.
| Min. Landscape and Portrait Panel Size | 65″ |
| Max Recommended Display Size Dia. 16:9 | 98″ |
| Max Recommended Display Size Dia. 16:9 | 90″ |
| X-arm Opening Distance (wall to back of display) | 18.67″ |
| X-arm Closed Distance (wall to back of display) | 3.98″ |
| Horizontal Shift | 0″ |
| Vertical Shift | 0″ |
| Rotation of Display | +/-2° |
| X-arm Plumb Alignment | -0.62° to 0° |
| Display Weight Capacity | 300 lbs. |
| Internal Mount Space X-arm (WxHxD inches) | 23.75″ x 19.44″ x 3.56″ |
| Peripheral Plate Dims (WxHxD inches) | 17.5″ x 26.75″ x 0.5″ |
| Wall Plate Dims (WxHxD inches) | 30″ x 30″ x 0.87″ |
| Plate Attach Pattern to X-arm (WxH) | 26.5″ x 11″ |
| Default VESA Pattern Width | Per Design |
| Default VESA Pattern Height | Per Design |
| Max Horizontal or Vertical | 1750 x 1200 |
| System Weight | 71 lbs. |

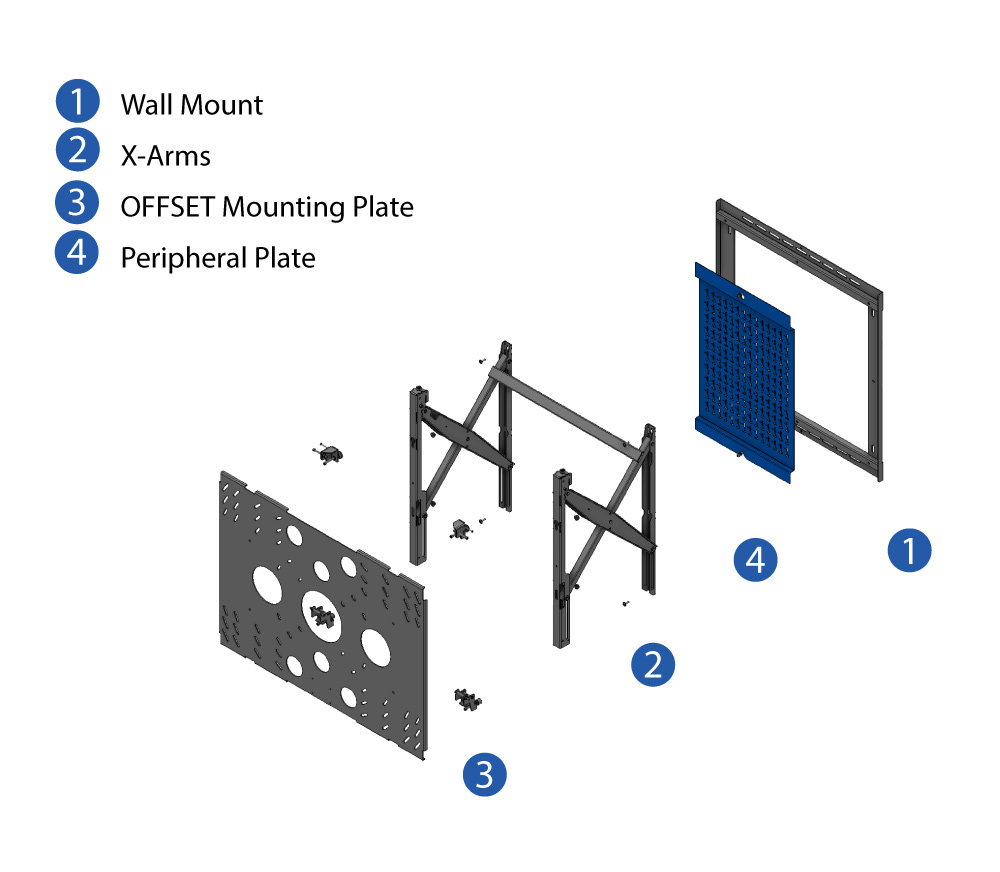

Surface mounted W32MAXB series system, includes wall attach bracket, peripheral mount plate, Slim x-arm, touch kit, and offset display mounting plate. Closes 4.86″ from wall. 300 lbs. capacity.
Surface mounted W32MAXB series system, includes wall attach bracket, peripheral mount plate, Slim x-arm, touch kit, and offset display mounting plate. Closes 3.98″ from wall. 300 lbs. capacity.
