On Wall Flat Panel Mounting System

For Displays Up to 425 lbs

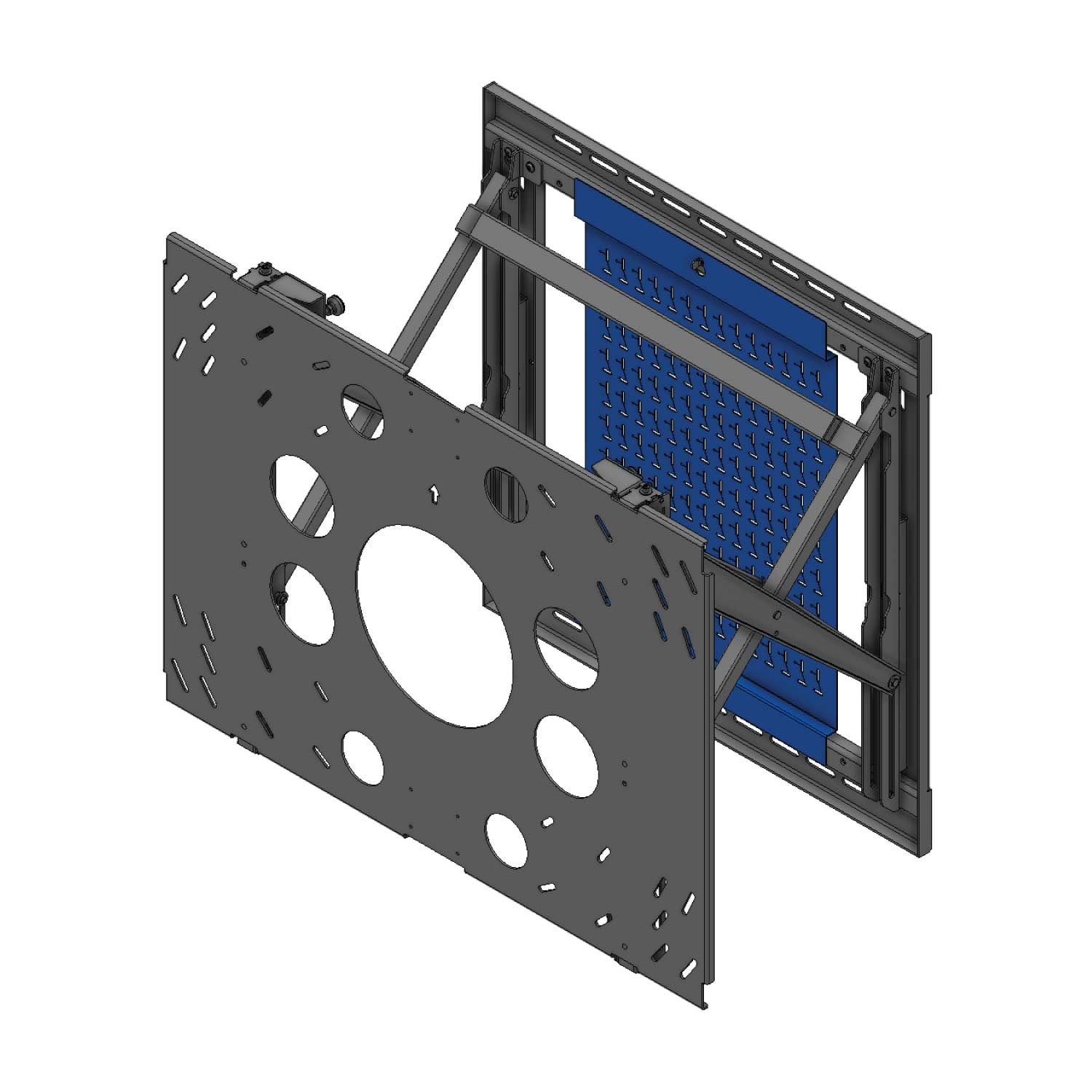

The Wallmate W32MAXB6 with an OFFSET mount is an on wall system designed for flat panel displays, while maintaining a lower profile, and single person service.

  • Unique proprietary roller x-arm allows exceptionally smooth and easy operation under high weight loads.
  • Wall mount plate has been designed to allow use of common standard Wallmate x-arms and accessories.
  • OFFSET mounting interface can be made to hold any flat panel display in the market. (As shown holds 200 x 200 to 800 x 600). Call for details.
Download Spec Sheet
  • Wallmate Mount Compatibility Checker
  • Specifications
  • Kits
  • Documentation

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







  • Peripheral storage space makes it easy to mount AV gear behind the display.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • Wall mount plate has been designed to allow use of common standard Wallmate x-arms and accessories.
  • Includes touch and lock kits to hold unit stabled and closed on imperfect walls. X-arm includes plumb/leveling feature.
  • Unique proprietary roller x-arm allows exceptionally smooth and easy operation under high weight loads.
  • OFFSET mounting interface can be made to hold any flat panel display in the market. (As shown holds 200 x 200 to 800 x 600). Call for details.



Wallmate W32MAXB6-XMR-OFFSET Product Specifications





Min. Landscape and Portrait Panel Size65″
Max Recommended Display Size Dia. 16:9120″
Max display size dia. 21:9110″
X-arm Opening Distance (wall to back of display)19.46″
X-arm Closed Distance (wall to back of display)4.46″
Horizontal Shift0″
Vertical Shift0″
Rotation of Display+/-2°
X-arm Plumb Alignment-0.62° to 0°
Display Weight Capacity425 lbs.*10
Internal Mount Space X-arm (WxHxD inches)23.75″ x 19.44″ x 3.68″
Peripheral Plate Dims (WxHxD inches)17.5″ x 26.75″ x 0.75″
Wall Plate Dims (WxHxD inches)30.38″ x 31.25″ x 0.87″
Plate Attach Pattern to X-arm (WxH inches)26.5″ x 11″
Default VESA Pattern WidthPer Design
Default VESA Pattern HeightPer Design
Max Horizontal or Vertical1750 x 1500
System Weight133 lbs.



*10: When 32MAX series back boxes are installed in 14 gauge studs, the weight limit is limited to 350 lbs.

Wallmate On Wall System Kits are our all-in-one solution that include the x-arms, display mounting plate, wall attach bracket, and peripheral mounting plate.

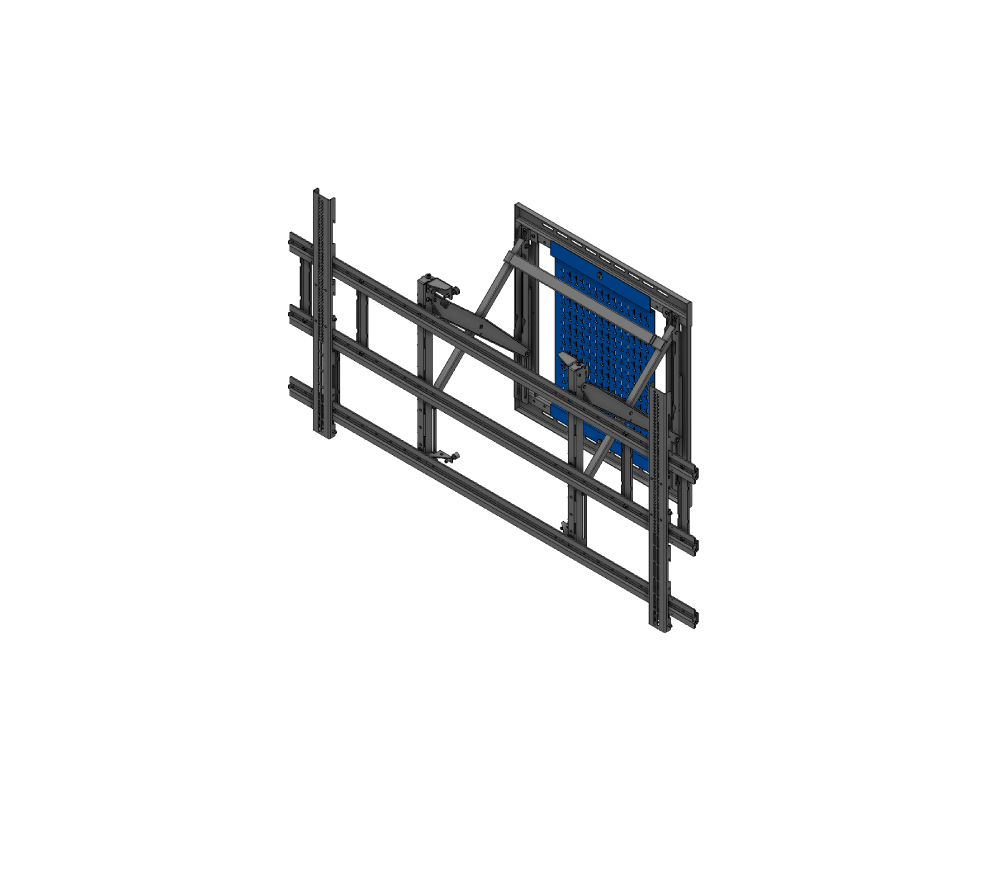

Wallmate 32MAXB6 surface mount system with Universal Mount

(RPWM-W32MAXB6-XMS-UNV-158)

Surface mounted W32MAXB6 series system, includes wall attach bracket, peripheral mount plate, heavy duty roller x-arm, touch kit, lock kit and Universal 158 display mounting plate. Closes 1.83″ from wall. 425 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

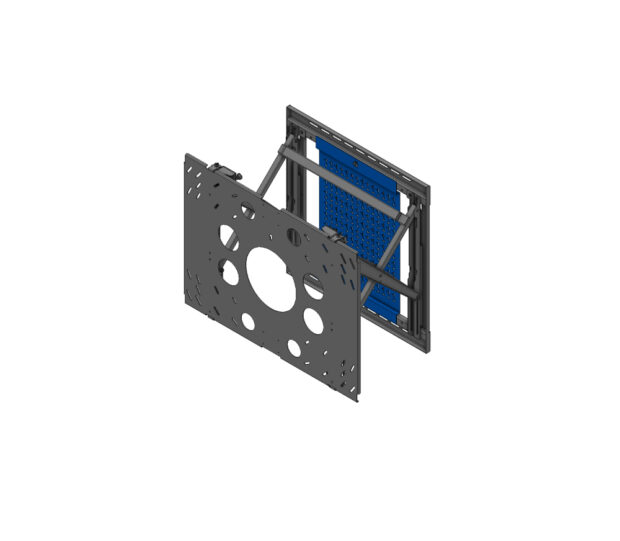

Wallmate 32MAXB6 Surface mount system with offset plate

(RPWM-W32MAXB6-XMR-OFFSET)

Surface mounted W32MAXB6 series system, includes wall attach bracket, peripheral mount plate, heavy duty roller x-arm, touch kit, lock kit, and offset display mounting plate. Closes 4.46″ from wall. 425 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Request Current Wallmate Price List

Request Price List

RPWM-W32MAXB6-XMR-OFFSET

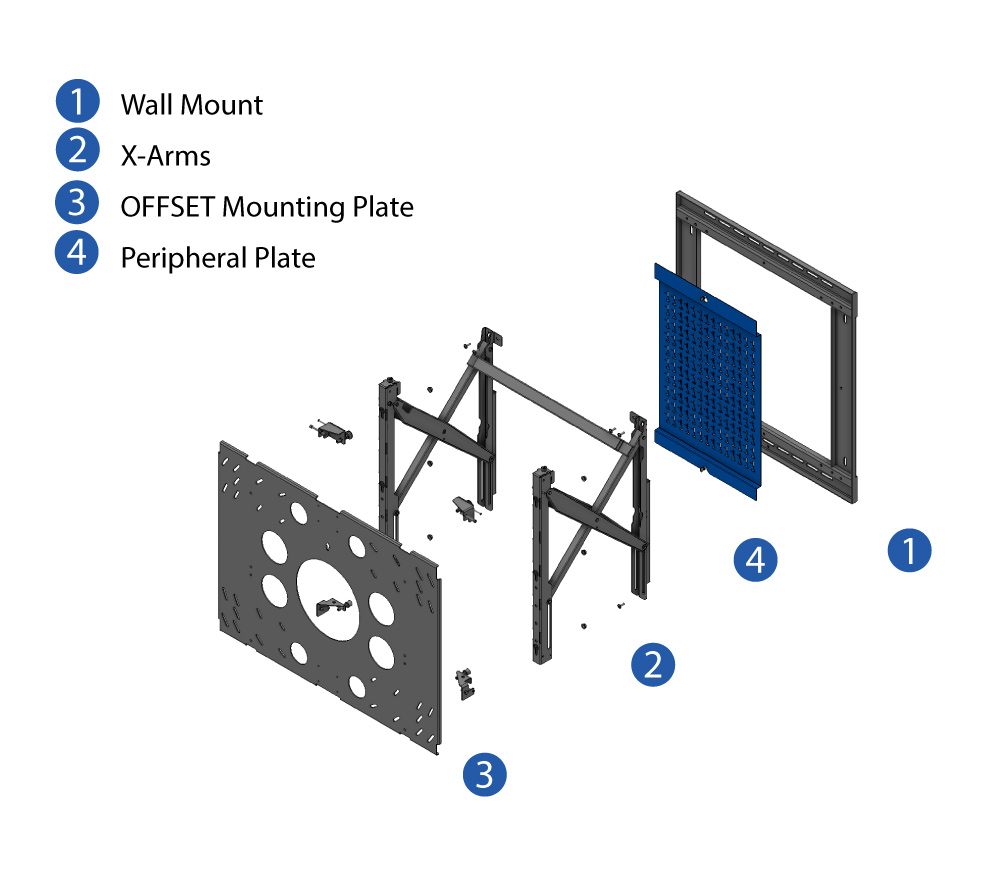

Inside the Wallmate W32MAXB6 Kit with OFFSET Mounting Plate
