Project Overview

Northern California EOC required a robust display mounting solution for a 6w x 3h video wall consisting of 18 Primeview 55-inch panels. RP Visual Solutions developed a custom wall-attached structure utilizing a welded tube steel framework and RPV 6-axis swing-mount brackets to achieve precise X, Y, and Z alignment. The system incorporates a locking mechanism for secure operation while maintaining the required perimeter and ventilation clearances for optimal display performance.

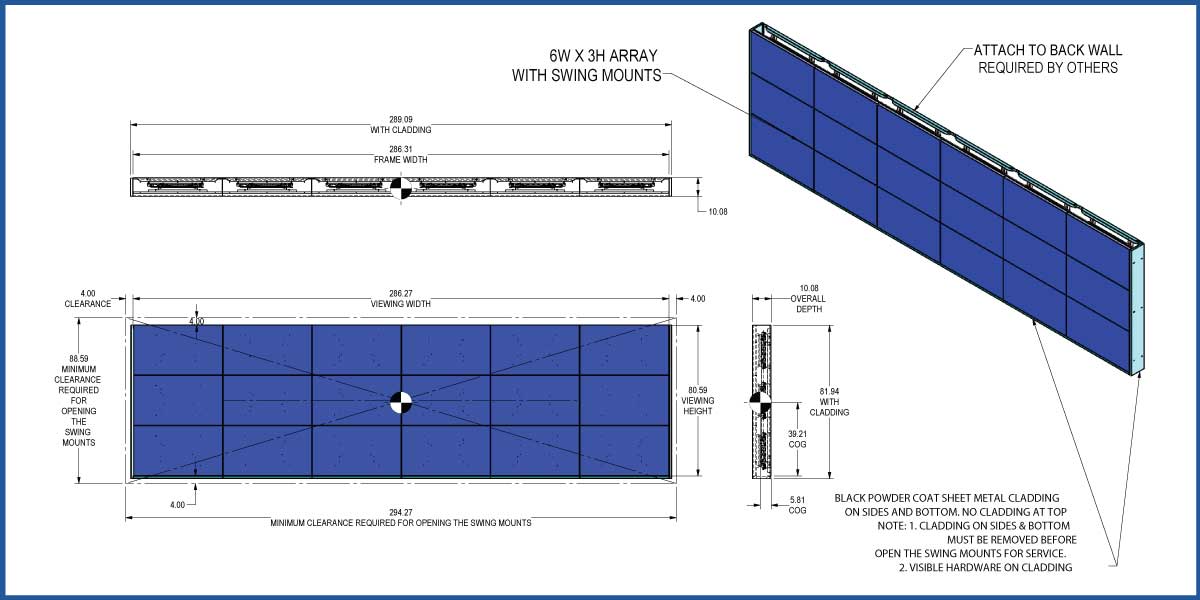

Blueprint of a custom 6w x 3h wall attached visual structure to support eighteen 55in displays in landscape using an RPV swing mount solution.

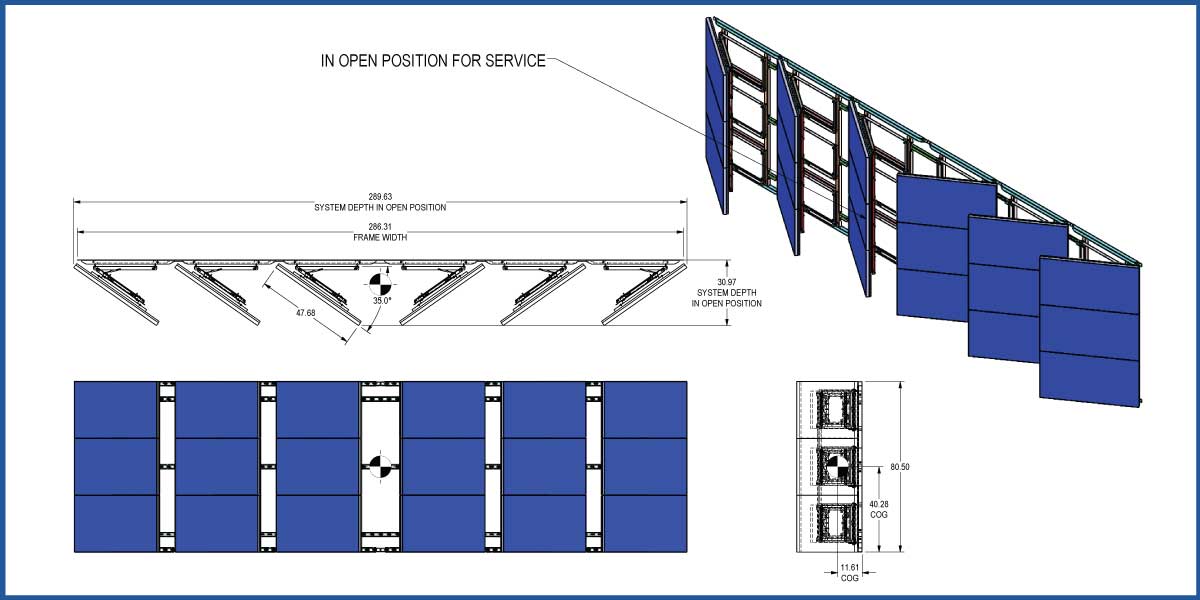

Blueprint of a custom 6w x 3h wall attached visual structure to support eighteen 55in displays in landscape using an RPV swing mount solution with panels in open position.

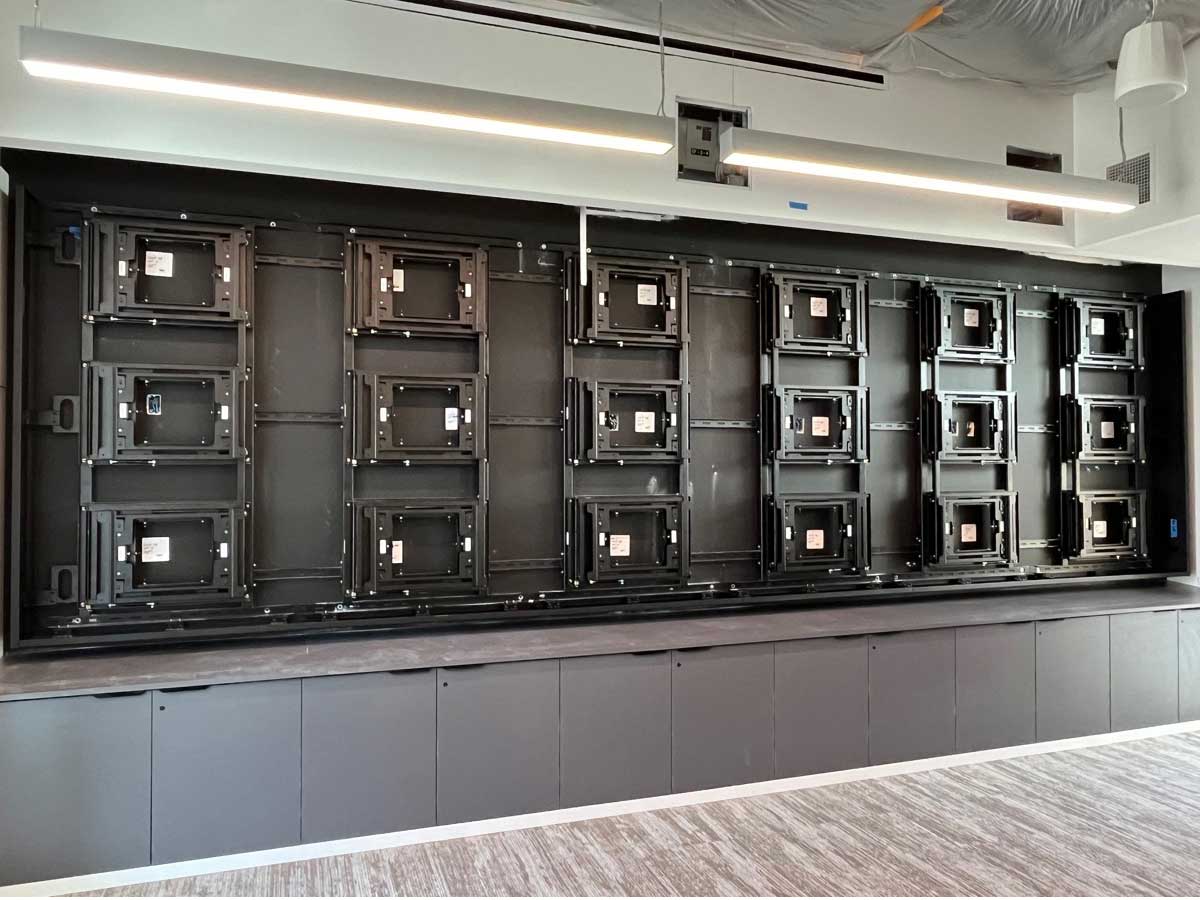

Front view of custom 6w x 3h wall attached visual structure to support eighteen 55in displays in landscape using an RPV swing mount solution (in progress)

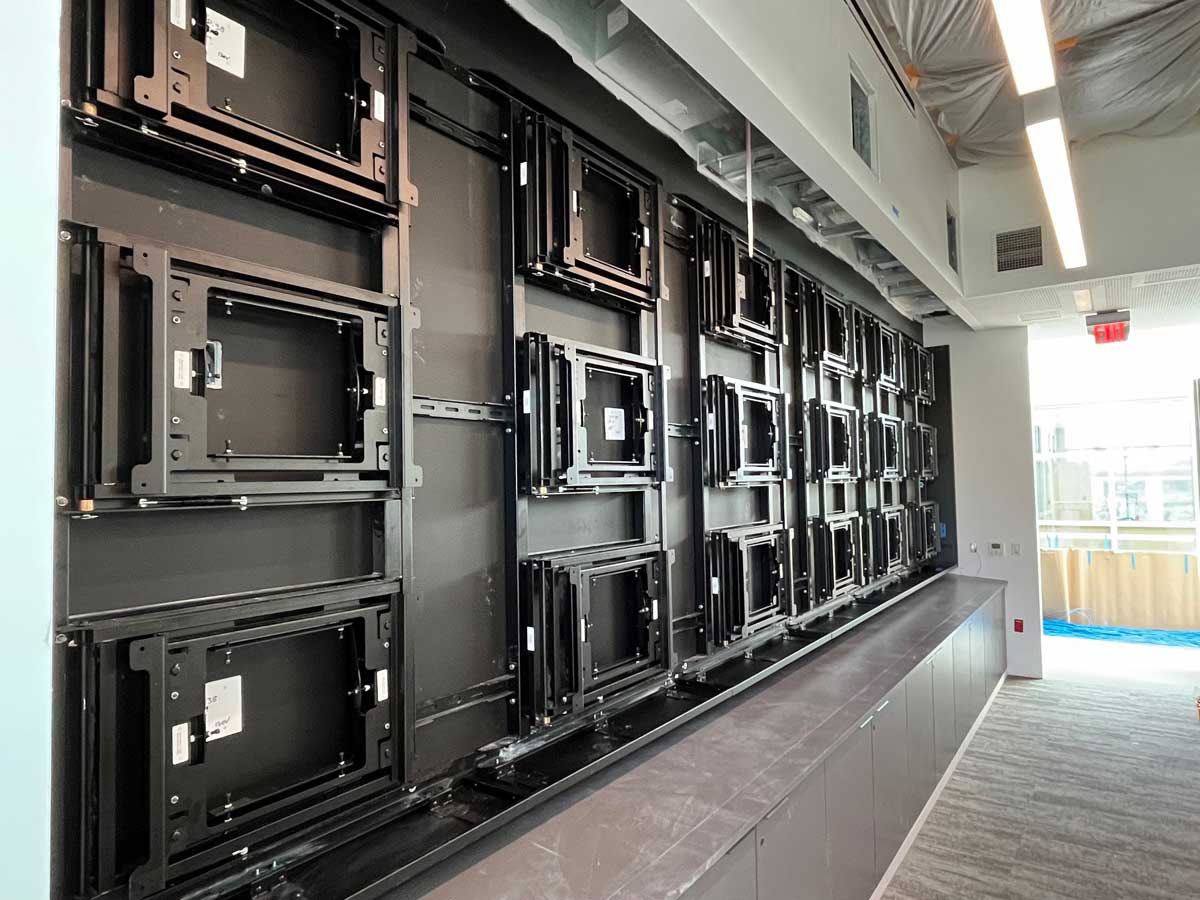

Angled view of custom 6w x 3h wall attached visual structure to support eighteen 55in displays in landscape using an RPV swing mount solution (in progress)

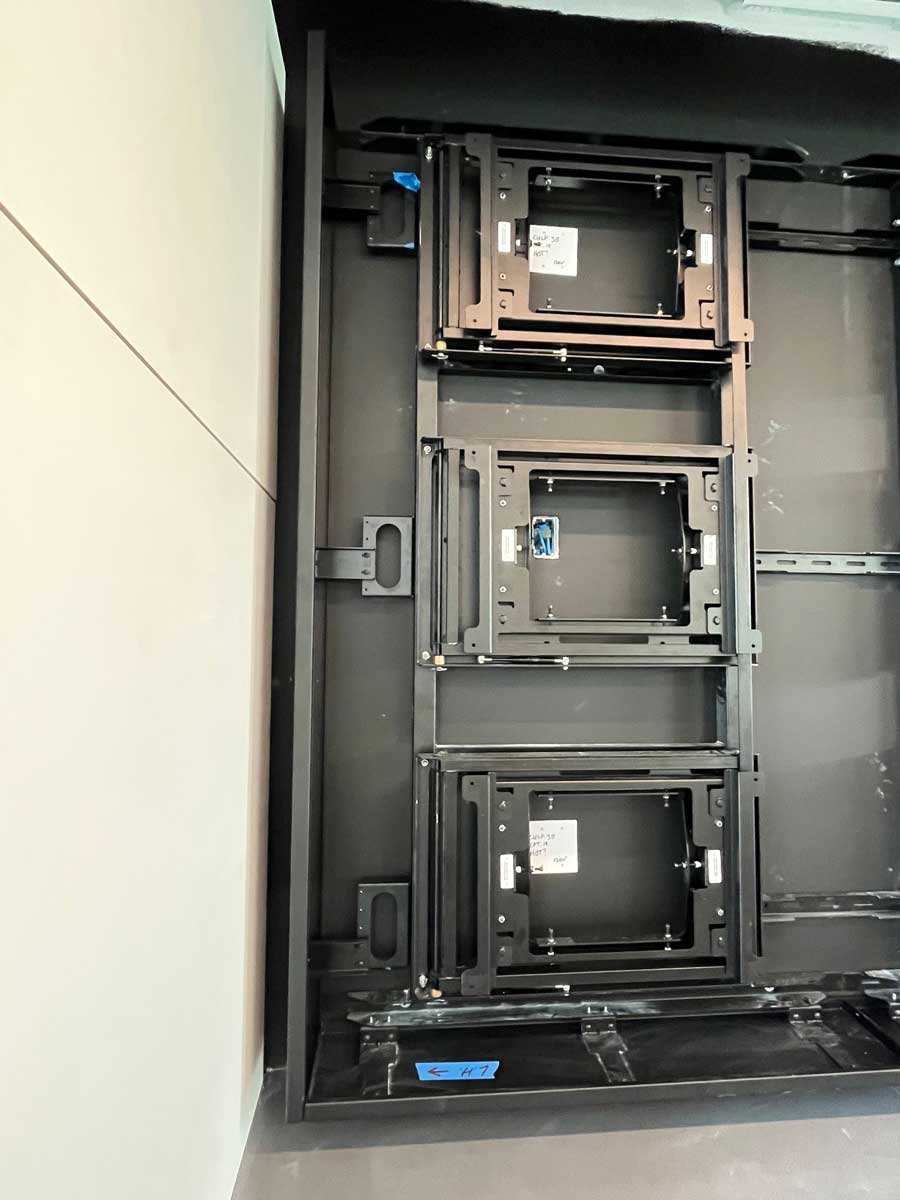

Close up view of custom 6w x 3h wall attached visual structure to support eighteen 55in displays in landscape using an RPV swing mount solution (in progress)

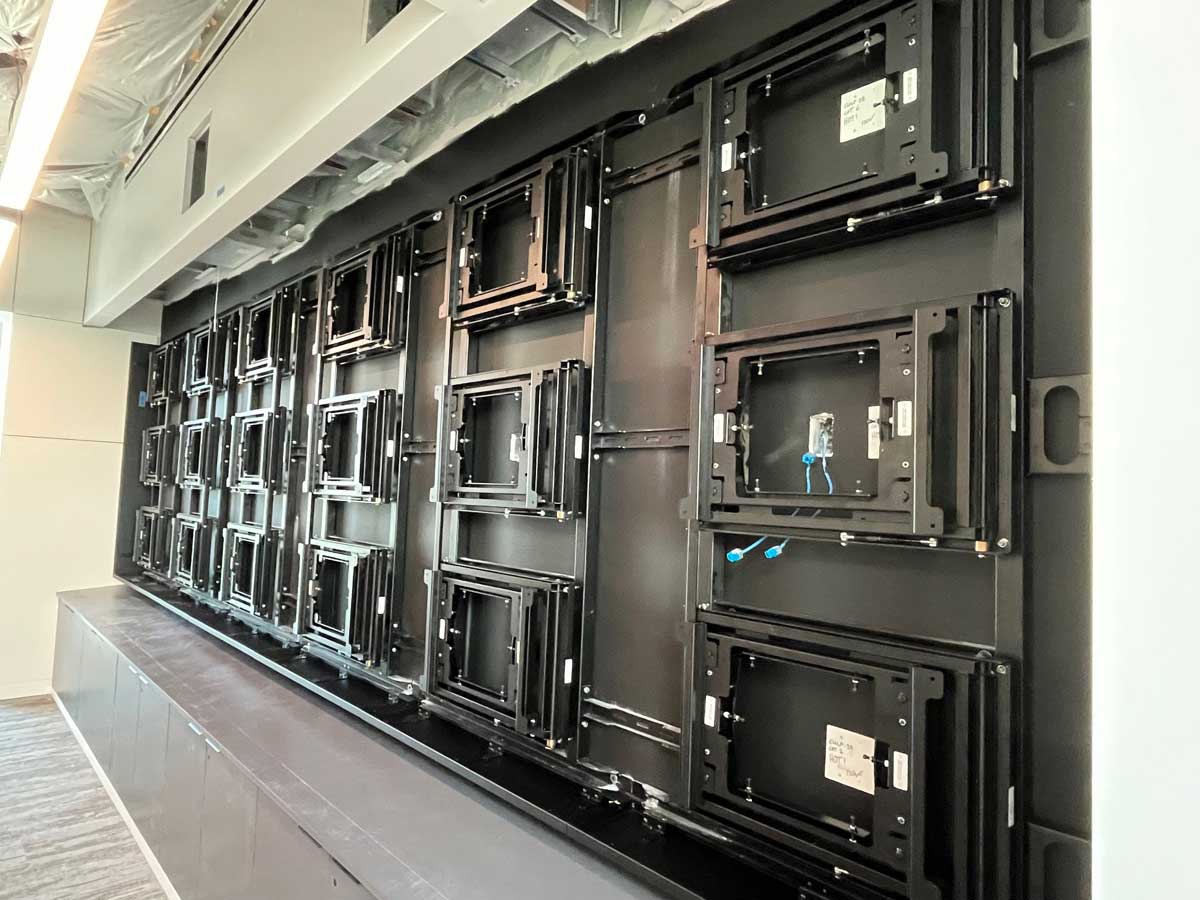

Side view of custom 6w x 3h wall attached visual structure to support eighteen 55in displays in landscape using an RPV swing mount solution (in progress)

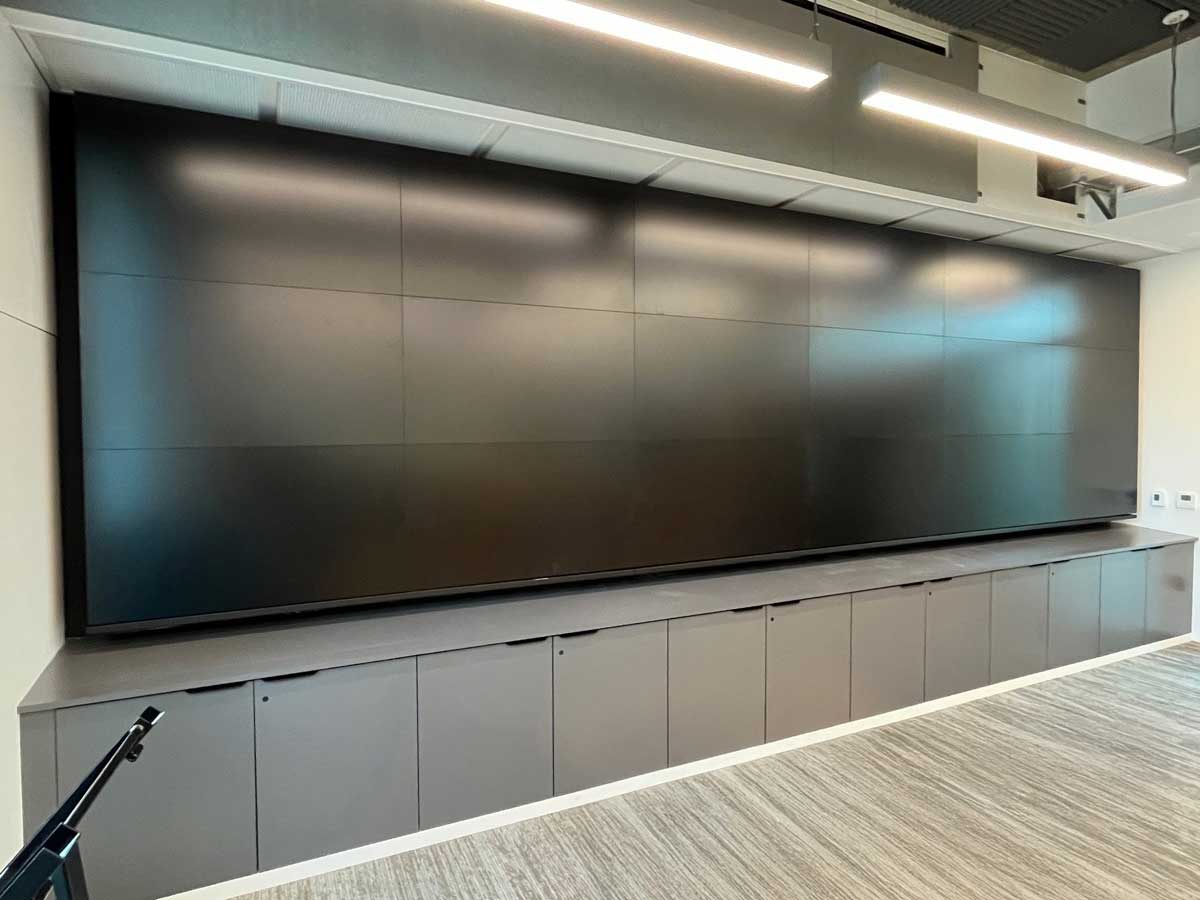

Photo of finished custom 6w x 3h wall attached visual structure to support eighteen 55in displays using an RPV swing mount solution
