On-Wall Flat Panel Mounting System

For Displays Up to 150 lbs

The Wallmate Dual is an on-wall mounting system for 2 flat panel displays featuring a swing open door and peripheral equipment storage.

  • Swing open door makes it easy to service and access 55″-75″ displays.
  • Closes to 2″ from back of display to wall to assists with ADA compliance.
  • Engineered with 11 to 14-gauge steel and manufactured in the U.S.A.
  • Removable device mount plates allow quick exchange service and assembly line style, off-site preparation.
  • Oversized rear openings accommodate easy installation and coordination of junction boxes up to 14.5″ x 14.5″
  • Magnetic closure latch secures the display and rear AV equipment.
Download Spec Sheet
  • Wallmate Mount Compatibility Checker
  • Specifications
  • Kits
  • Accessories

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







Wallmate Surface B Dual Product Specification



Capacity150 lbs. per display
Product Weight140 lbs.
Warranty1 year
Display SizeMounts 55″-75″ flat panels
Size Range97.2″w up to 129.75″w x 27.5″h x 2″d
Peripheral plate mounting area23.5″w x 18.5h” x 1.93″ per unit
VESA200 x 200 up to 600 x 400
Door leveling+/-1 degree

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.

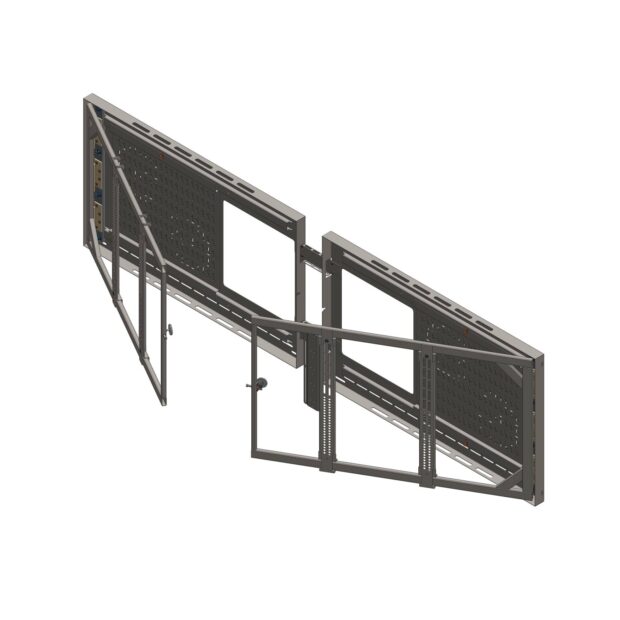

Wallmate Dual Surface B

(RPWM-SURFB-DL)

Two Wallmate Surface B unit, includes one small standard spacer, and one camera spacer.

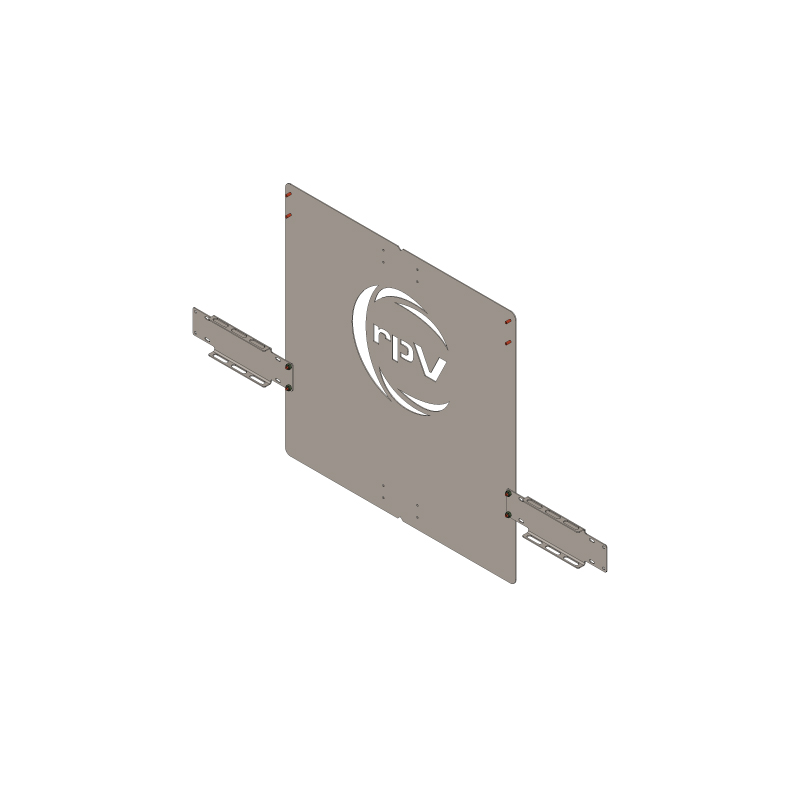

Wallmate Dual Surface Spacer Kit

(RPWM-SURFB-SP-KIT)

Wallmate Dual Surface B spacer kit for 65″ and 75″ displays. Includes large center spacer, and 2 smaller spacers.

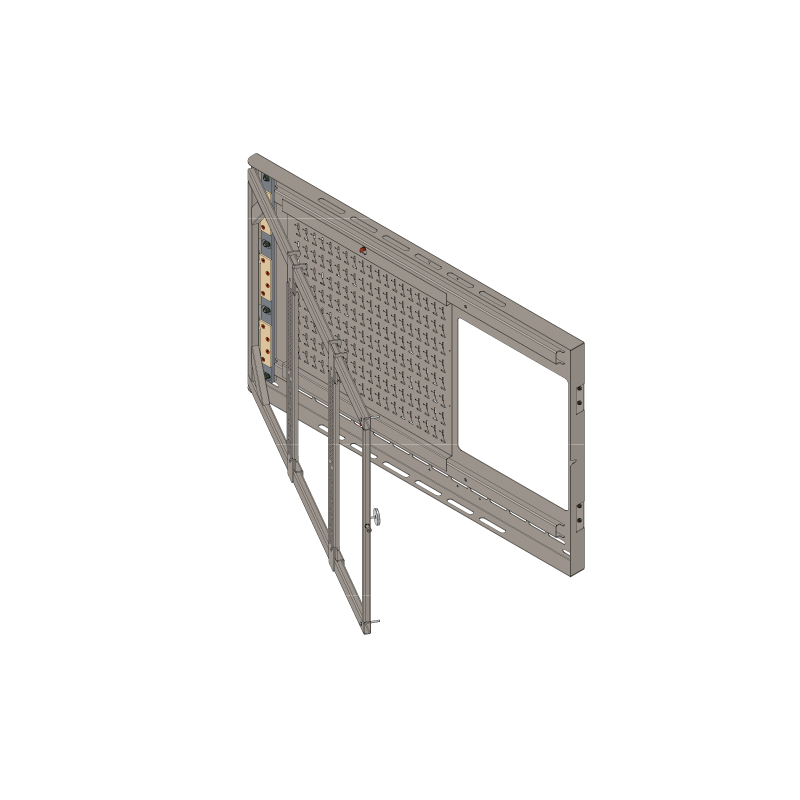

Wallmate Surface B Kit

(RPWM-SURFB)

Surface B mounted swing open style system, large rear opening with single large peripheral plate. 2″ thin, 150 lbs. capacity. Suitable for displays in landscape from 55″-75″.

Wallmate Accessories are complimentary to Wallmate Kits.

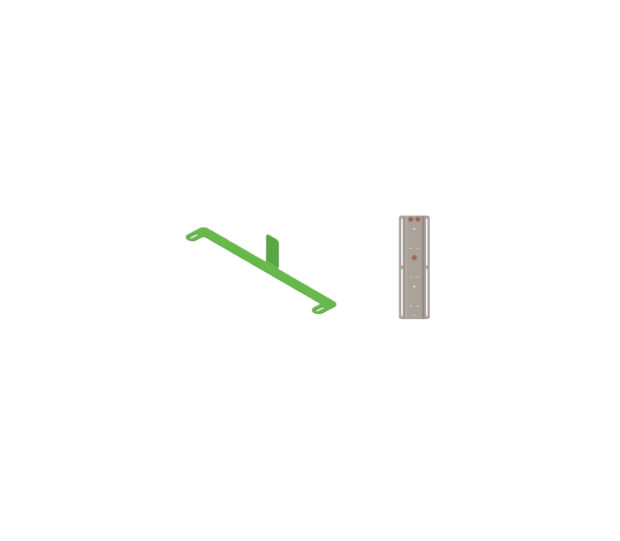

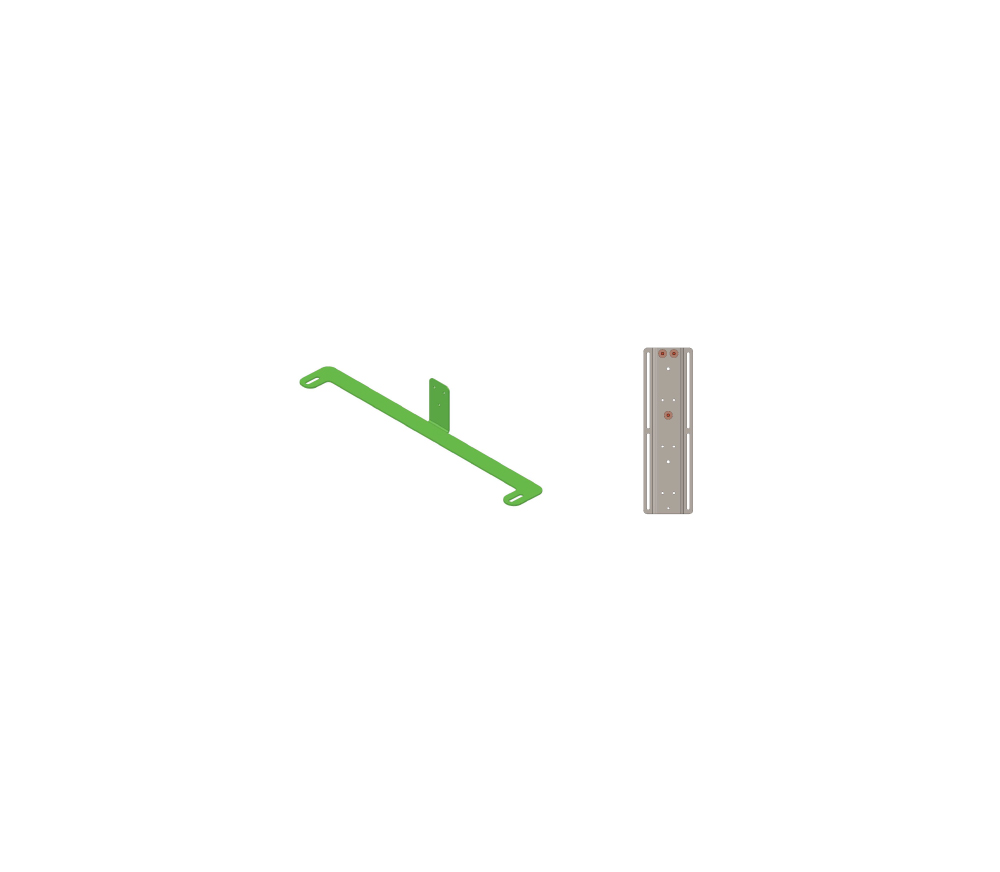

Surface KCAM mounting kit for Wallmate SURFBDL plates

(RPWM-AUXBOX)

In wall accessory tray for holding peripherals, slides into removable bottom panel on back box of 16, 32 and 32MAX size in B, BF, BFM and B6 series. Internal space 12.5″ x 7.2″ x 2.5″.

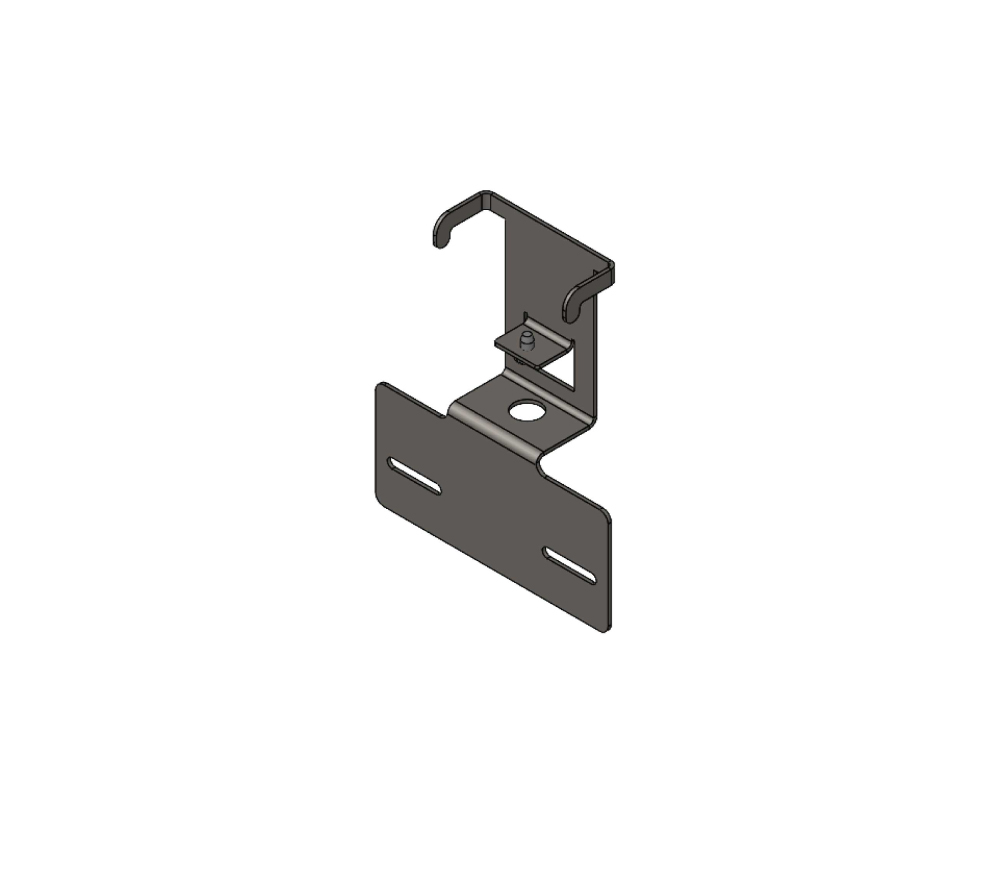

Surface KCAM mounting kit for Wallmate SURFB unit

(RPWM-UC-SURFB-KCAM)

Camera mounting system for Wallmate Surface B, opens with door.

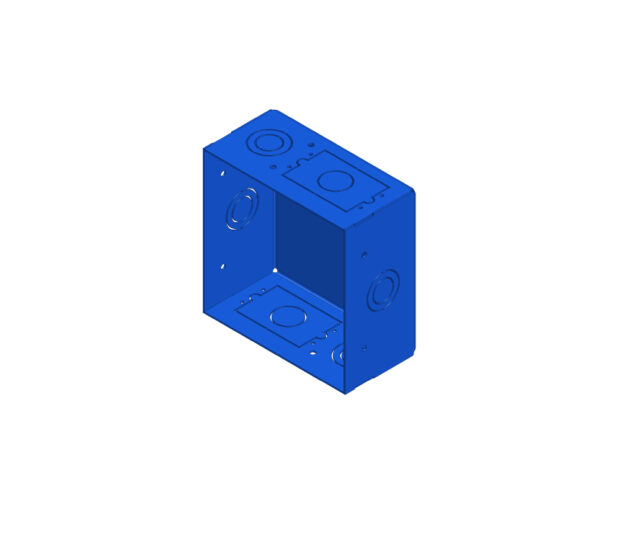

Small behind display box

(RPWM-BD-77)

Metal welded 7.5″ x 7.5″ behind display box. Includes 2 single gang knock outs, 2 multi size conduit knock outs, and 2 1″ knock outs. Blue.

Request Current Wallmate Price List

Request Price List

Inside

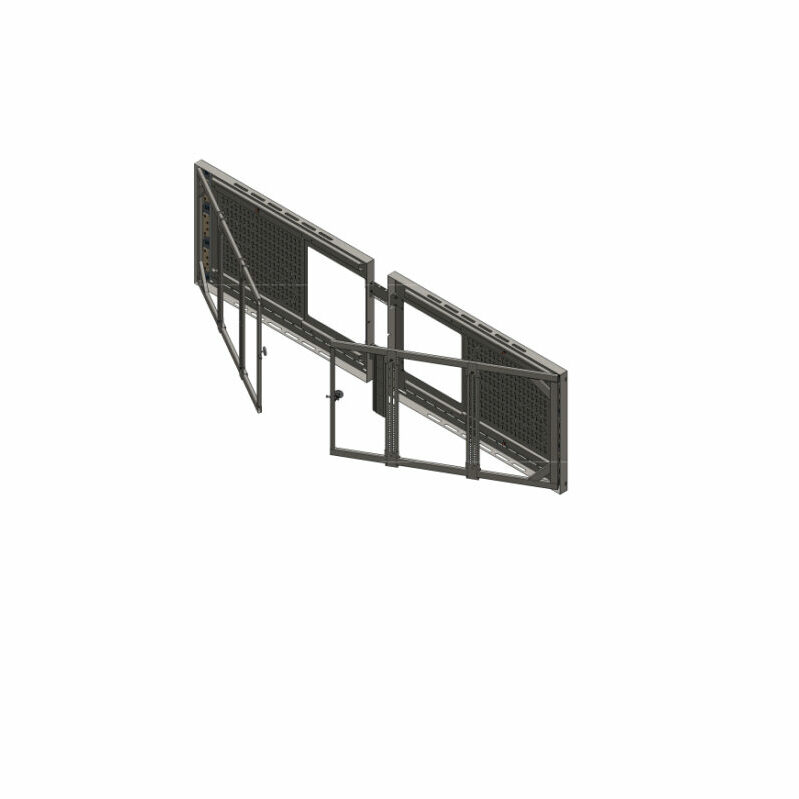

Wallmate RPWM-SURFB-DL Kit Front View
