Wallmate B6 32MAX UNV 158

In-Wall Flat Panel Mounting System

For Displays Up to 425 lbs*¹⁰

The Wallmate 32MAXB6 with the Large Display Universal mount is a double stud bay system designed to hold almost every flat panel display above 85″, while maintaining a low profile from the wall and position adjustment.

New Unique proprietary roller X-arm allows exceptionally smooth and easy operation under high weight loads.
New B6 back box has been designed from the ground up to support heavy weight loads.
Mounting interface are made to order. Example show is for an offset 1700mm x 800mm mount patterns.

Download Spec Sheet

Wallmate Mount Compatibility Checker
Specifications
Kits
Documentations

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.

Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
New B6 back box has been designed from the ground up to support heavy weight loads.
Includes electrical knock outs for conduit and single gang boxes.
New Unique proprietary rollers X-arm allows exceptionally smooth and easy operation under high weight loads.
UNV-158 mounting interfaces are made to order. Example show is for an offset 1700mm x 800mm mount patterns.

Wallmate 32MAXB6-XMR-UNV-158 Product Specifications

Structure in Wall	Required once system total load with display and interface passes 300 lbs.
Min. Landscape	85″
Max Recommended Display Size Dia. 16:9	120″
Max Display Size Dia. 21:9	110″
Max Display Thickness Hit ADA	2.9
X-arm Opening Distance (wall to back of display)	16.71″*⁹
X-arm Closed Distance (wall to back of display)	1.78″
Horizontal Shift	+/- 12.5″ H*⁶
Vertical Shift	+/- 7.38/-9.87″ H*⁶
Rotation of Display	0-6.5mm height adjust per VESA location
X-arm Plumb Alignment	-0.62° to 0°
Display Weight Capacity of UNV-158	425 lbs.*¹⁰
Internal Mount Space X-arm (WxHxD)	23.75″ x 19.44″ x 3.68″
Peripheral Plate Dim (WxHxD inches)	17.5″ x 26.75″ x 0.75″
Box External Dimensions – No Trim (WxHxD)	30.38″ x 30.38″ x 3.81″
Box & Trim External Dimensions (WxHxD)	32.1″ x 32.1″ x 3.88″
Plate Attach Pattern to X-arm (WxH)	26.5″ x 11″ x 11″
1-Gang Box Positions (top and bottom)	4 each
Conduit Knock Outs (top)	4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)	4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position	2
1″ Metal Multi-Piece Trim	Included with back box
Weight	152 lbs.

*6: Shift range based on 600mmW x 400mmH hole pattern. For UNVM based on 300mmW x 300mmH holes pattern. For UNV-158 based on 900mmW x 600mmH holes pattern.
*9: Depth may change by interface.
*10: When 32MAX series back boxes are installed in 14-gauge studs, the weight limit is limited to 350 lbs.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.

Large flat panel display offset plate - Pull out Wallmate 32MAXB6 kit

(RPWM-32MAXB6-XMR-OFFSET)

Wallmate 32MAXB6 system, includes B6 back box, peripheral plate, box trim bezel, heavy duty roller x-arm, and made to order landscape mounting plate for up to 425 lbs. display, 1500mm wide VESA patterns. Closes as low as 0.6″ from wall.

CAD Drawing (PDF) download

CAD Drawing (dwg) download

Universal Mount - Pull out Wallmate 32MAXB6 kit

(RPWM-32MAXB6-XMR-UNV-158)

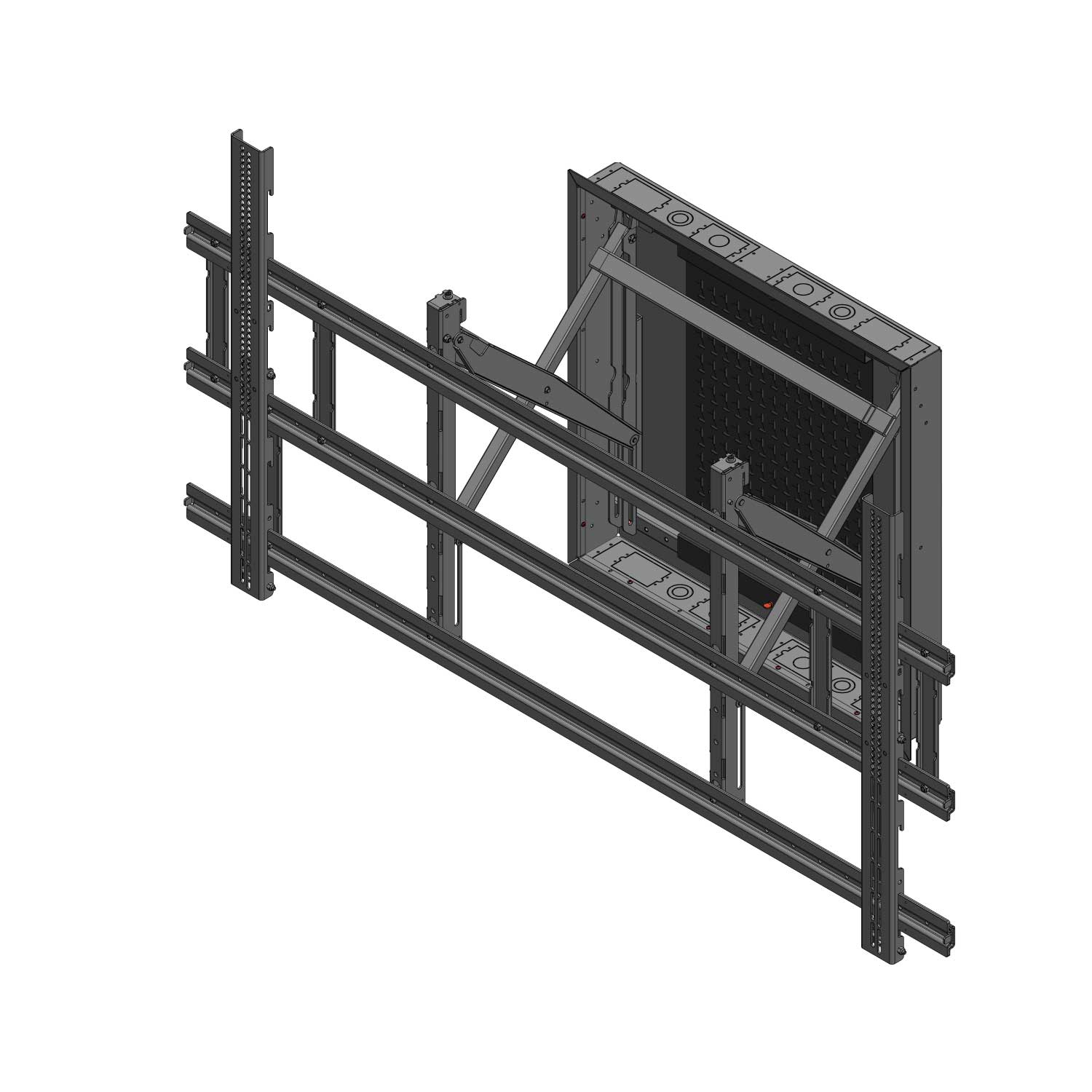

Wallmate 32MAXB6 system, includes B6 back box, peripheral plate, box trim bezel, heavy duty roller x-arm, and Universal 158 mounting system. 425 lbs. capacity. For displays 85″ up to 110″, with VESA up to a max of 1700 x 800. Closes 1.78″ back of display to wall.

CAD Drawing (PDF) download

CAD Drawing (dwg) download
