The Wallmate B6 series is made to hold the largest flat panel displays on the market with very easy and stable service access.
| Structure in Wall | Cannot be stud mounted. Requires in wall structure by RPV or Structural team. |
| Min. Landscape and Portrait Panel Size | 65″ |
| Max Recommended Display Size Dia. 16:9 | 120″ |
| Max Display Size Dia. 21:9 | 110″ |
| Max Display Thickness Hit ADA – Non Shift | 3.4″ including interface*2 |
| X-arm Opening Distance (wall to back of display) | 15.44″*9 |
| X-arm Closed Distance (wall to back of display) | As low as 0.6″ |
| Horizontal Shift | 0″ |
| Vertical Shift | 0″ |
| Rotation of Display | ±2° |
| X-arm Plumb Alignment | -0.62° to 0° |
| Display Weight Capacity | 425 lbs.*10 |
| Internal Mount Space X-arm (WxHxD) | 23.75″ x 19.34″ x 4.16″ |
| Peripheral Plate Dim (WxHxD inches) | 17.5″ x 26.75″ x 0.5″ |
| Box External Dimensions – No Trim (WxHxD) | 30.38″ x 30.38″ x 3.81″ |
| Box & Trim External Dimensions (WxHxD) | 32.1″ x 32.1″ x 3.81″ |
| Plate Attach Pattern to X-arm (WxH) | 26.5″ x 11″ x 11″ |
| 1-Gang Box Positions (top and bottom) | 4 each |
| Conduit Knock Outs (top) | 4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″) |
| Conduit Knock Outs (bottom) | 4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″) |
| AUX Tray Position | 2 |
| 1″ Metal Multi-Piece Trim | Included with back box |
| Weight | 121.45 lbs. |
*2: Call for design assistance.
*9: Depth may change by interface.
*10: When 32MAX series back boxes are installed in 14-gauge studs, the weight limit is limited to 350 lbs.

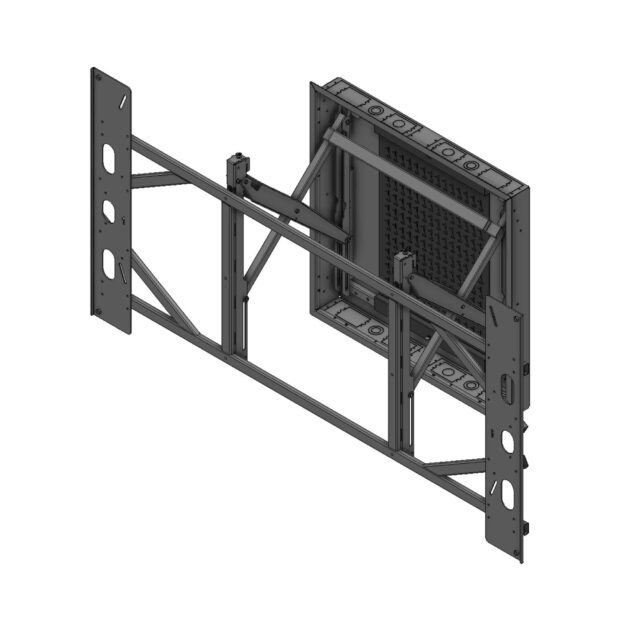

Wallmate 32MAXB6 system, includes B6 back box, peripheral plate, box trim bezel, heavy duty roller x-arm, and made to order landscape mounting plate for up to 425 lbs. display, 1500mm wide VESA patterns. Closes as low as 0.6″ from wall.

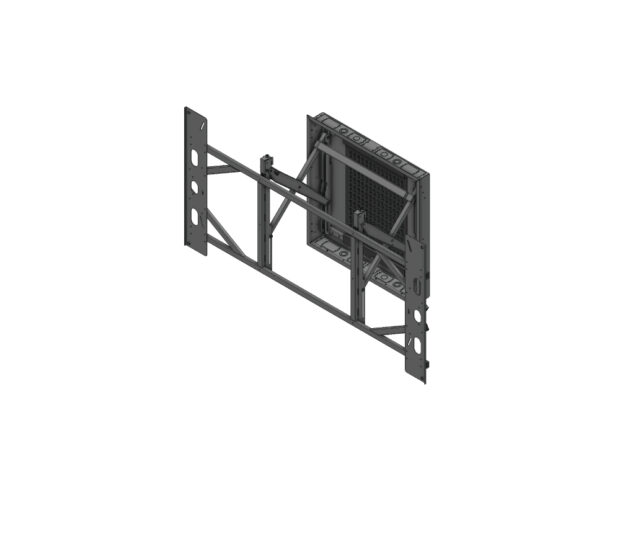

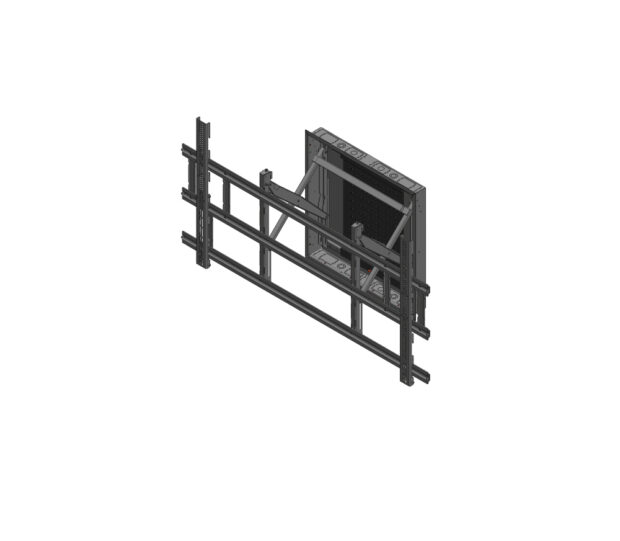

Wallmate 32MAXB6 system, includes B6 back box, peripheral plate, box trim bezel, heavy duty roller x-arm, and Universal 158 mounting system. 425 lbs. capacity. For displays 85″ up to 110″, with VESA up to a max of 1700 x 800. Closes 1.78″ back of display to wall.
In wall accessory tray for holding peripherals, slides into removable bottom panel on back box of 16, 32 and 32MAX size in B, BF, BFM and B6 series. Internal space 12.5″ x 7.2″ x 2.5″.
Wallmate XMR lock kit with pull cord and latch. Includes a left and right side pin lock. For use with 32MAXB6 on wall bracket or 32MAXB6 in wall back box.
Touch kit system for XMR x-arm includes adjustable depth magnetic stand offs and pressure stand offs to tune the right amount of hold force.
European 68mm OR 70mm electrical box adapter plate, uses AUXBOX knock out location. Not compatible with BS, BM or BFM series back boxes.
European 68mm OR 70mm electrical box adapter plate with 3 openings, uses AUXBOX knock out location. Not compatible with BS, BM or BFM series back boxes.
Back box cover plate for Wallmate 32MAXB, BF, B6. Primer finish metal plate.

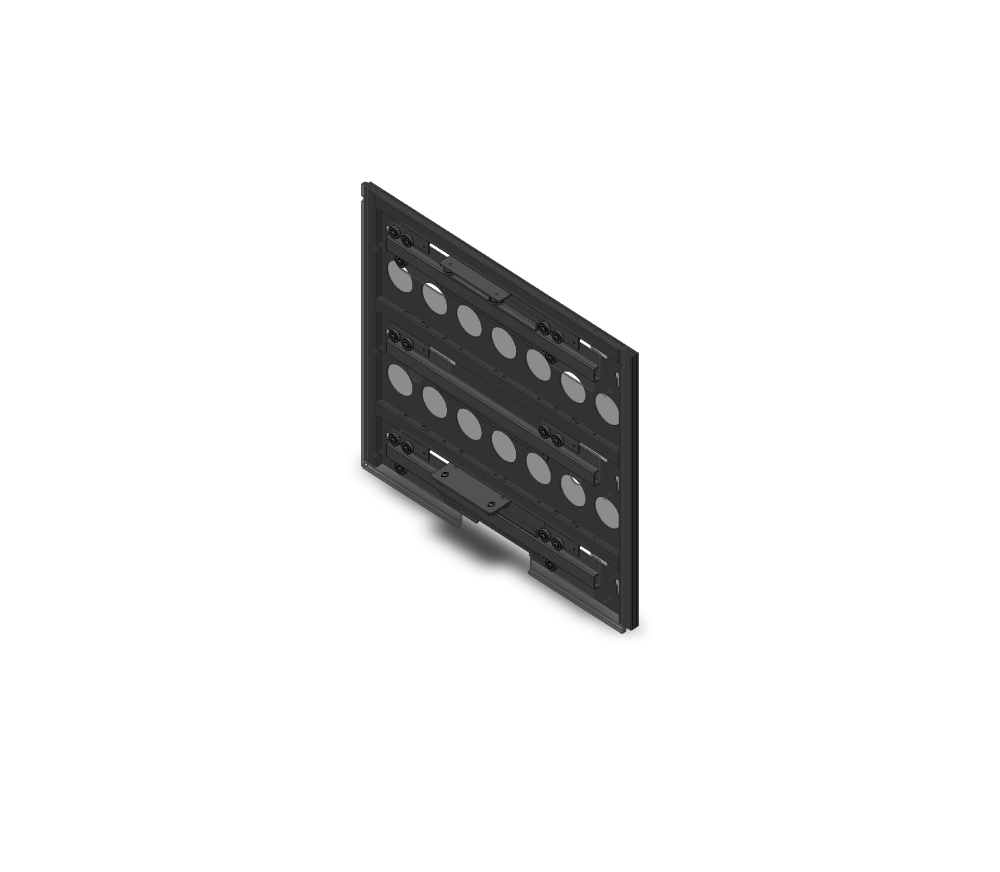

Made to order horizontal roller system that allows horizontal shift of up to 146″ LED walls. Adds into a 32MACB6 system between the x-arm front and the display interface. Black.
Wallmate 32MAXB6 series louver style flip up mount accessory, angles the display upwards 28 degrees for increased service access. Requires offset plate or UNV mount sold separately.
