Wallmate Flush 32 ADA

Flush In-Wall Flat Panel Mounting System ADA Compliance

For Displays Up to 250 lbs

The Wallmate 32BF with ADA mount is a double stud bay system designed to be the thinnest in-wall mount possible, allowing the largest selection of displays possible to be ADA compliant.

  • Closes to as low as 0.0″ to 0.12″ from the wall.  The display X-arms have been redesigned to enable a flush closure.
  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • Flush back box has been redesigned to lower the profile and enable a flush closure.
  • ADA mounting plate is custom made to match each display per order. Can mount in landscape or portrait.
Download Spec Sheet
  • Wallmate Mount Compatibility Checker
  • Specifications
  • Kits
  • Documentation

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • Flush back box has been redesigned to lower the profile and enable a flush closure.
  • Includes electrical knock outs for conduit and single gang boxes.
  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • ADA mounting plate is custom made to match each display per order. Can mount in landscape or portrait.



Wallmate 32BF-XMS-ADA Product Specifications
(Available in all sizes 16, 32, 32MAX)



Stud Depth in Wall3.5″ or greater
Min. Landscape and Portrait Panel Size50″ L / 65″ P
Max Recommended Display Size Dia. 16:975″*3
Max Display Thickness to Hit ADA – Non Shift3.88″ – 4.0″
X-arm Opening Distance (wall to back of display)9.43″
X-arm Closed Distance (wall to back of display)0.0″ – 0.12″
Horizontal Shift0″
Vertical Shift0″
Rotation of Display 0
X-arm Plumb Alignment-1.03° to 0°
Display Weight Capacity250 lbs.
Internal Mount Space X-arm (WxHxD)23.75″ x 10.5″ x 3.56″
Peripheral Plate Dim (WxHxD inches)16.5″ x 17.4″ x 0.5″
Box External Dimensions – No Trim (WxHxD)30.38″ x 23.34″ x 3.81″
Box & Trim External Dimensions (WxHxD)32.1″ x 25.0″ x 3.9″
Plate Attach Pattern to X-arm (WxH)26.5″ x 11″
Max Horizontal and Vertical800 x 600
1-Gang Box Positions (top and bottom)4
Conduit Knock Outs (top)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position2
1″ Metal Multi-Piece TrimIncluded with back box
System Weight71.4 lbs.



*3: Larger display sizes are possible but may impede access to the peripheral mounting plate.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.



Wallmate Flush 32 ADA

Thin ADA plate - Pull out Wallmate 32BF kit

(RPWM-32BF-XMS-ADA)

Wallmate 32BF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and ADA mounting plate. Closes up to 0.12″ from wall. 250 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Flush 32

Universal Mount - Pull out Wallmate 32BF kit

(RPWM-32BF-XMS-UNV)

Wallmate 32BF System, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mount. Closes 1.01″ from wall. 250 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Thin ADA plate - Pull out Wallmate 32BF kit

(RPWM-32BF-XMS-ADA-HVSB2)

Wallmate 32BF System, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and ADA mounting plate. Closes 0.14″ from wall. 140 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

Request Current Wallmate Price List

Request Price List

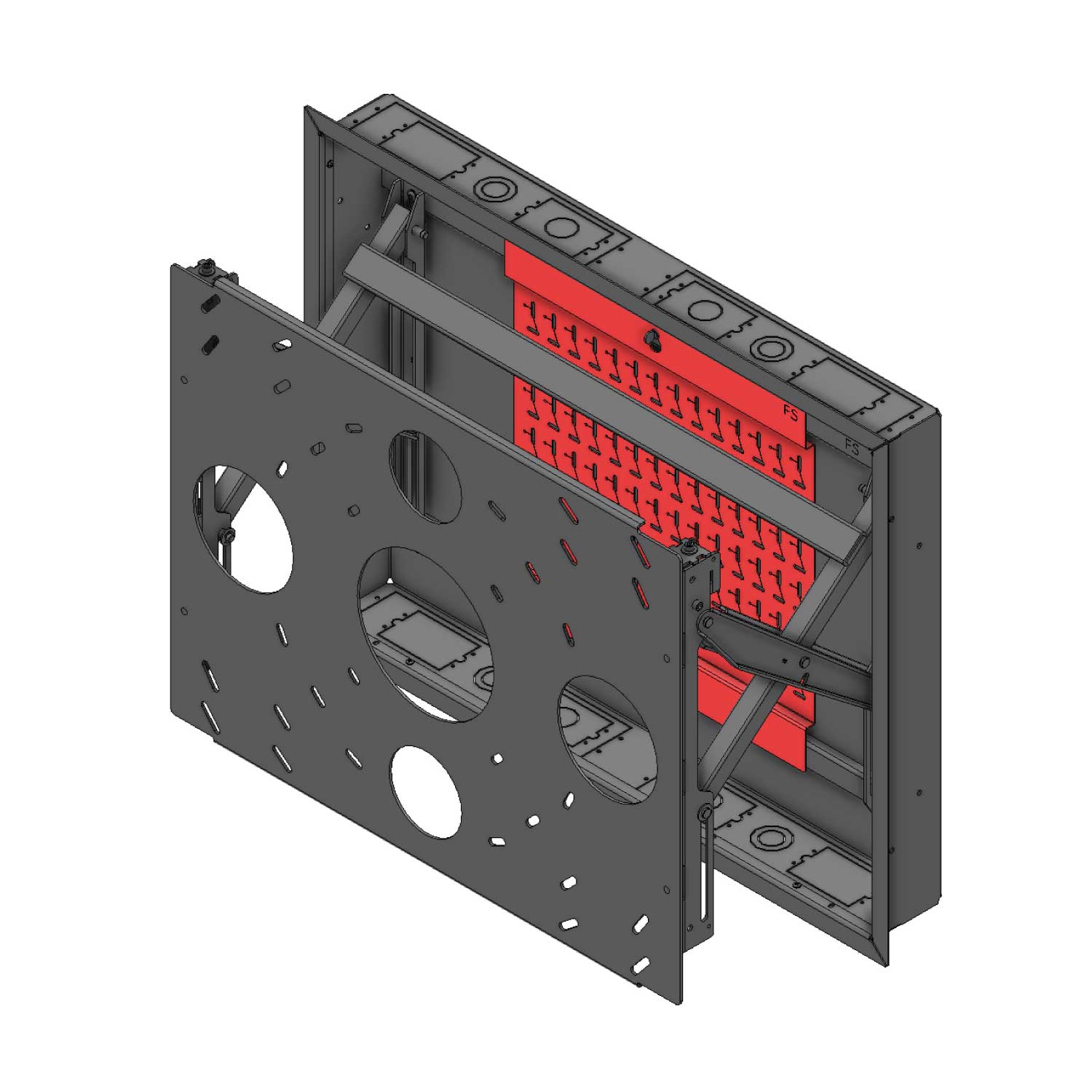

RPWM-32BF-XMS-ADA

Inside the Wallmate 32BF Kit with ADA Mounting Plate
