Wallmate Flush 32 ADA HVSB2

Flush In-Wall Flat Panel Mounting System ADA Compliance

For Displays Up to 140 lbs

The Wallmate 32BF with ADA-HVSB2 mount is a double stud bay system designed to be the thinnest in-wall mount possible with 1″ +/-H & V shift, and leveling, allowing the largest selection of displays possible to be ADA compliant. Up to 600mm x 600mm VESA, 140 lbs.

Closes to as low as 0.14” from the wall. The X-arms have been redesigned to enable a flush closure.
Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
Flush back box has been redesigned to lower the profile and enable a flush closure.
ADA-HVSB2 mounting plate is custom made to match each display per order. Can mount in landscape or portrait.

Download Spec Sheet

Specifications
Kits
Documentation

Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
Flush back box has been redesigned to lower the profile and enable a flush closure.
Includes electrical knock outs for conduit and single gang boxes.
Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
ADA-HVSB2 mounting plate is custom made to match each display per order. Can mount in landscape or portrait.

Wallmate 32BF-XMS-ADA-HVSB2 Product Specifications

Stud Depth in Wall	3.5″ or greater
Min. Landscape and Portrait Panel Size	50″ L / 65″ P
Max Recommended Display Size Dia. 16:9	75″^*3
Max Display Size Dia. 21:9	82″
Max Display Thickness to Hit ADA – Non Shift	3.86″
X-arm Opening Distance (wall to back of display)	9.45″
X-arm Closed Distance (wall to back of display)	0.14″
Horizontal Shift	+/- 1″ H^*7
Vertical Shift	+/- 1″ V^*7
Rotation of Display	+/- 1 degree^*7
X-arm Plumb Alignment	-1.03° to 0°
Display Weight Capacity	140 lbs.
Internal Mount Space X-arm (WxHxD)	23.75″ x 10.26″ x 3.11″
Peripheral Plate Dim (WxHxD inches)	16.5″ x 17.4″ x 0.5″
Box External Dimensions – No Trim (WxHxD)	30.38″ x 23.34″ x 3.81″
Box & Trim External Dimensions (WxHxD)	32.1″ x 25.0″ x 3.9″
Plate Attach Pattern to X-arm (WxH)	26.5″ x 11″
Default VESA pattern Width	up to 600
Default VESA pattern Height	up to 600
Max Horizontal or Vertical	600 x 600
1-Gang Box Positions (top and bottom)	4
Conduit Knock Outs (top)	4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)	4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position	2
1″ Metal Multi-Piece Trim	Included with back box
System Weight	109 lbs.

*3: Larger display sizes are possible but may impede access to the peripheral mounting plate.
*7: Shift based on optional ADA-HVSB/HVSBL mounting plate.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.

Thin ADA plate - Pull out Wallmate 32BF kit

(RPWM-32BF-XMS-ADA-HVSB2)

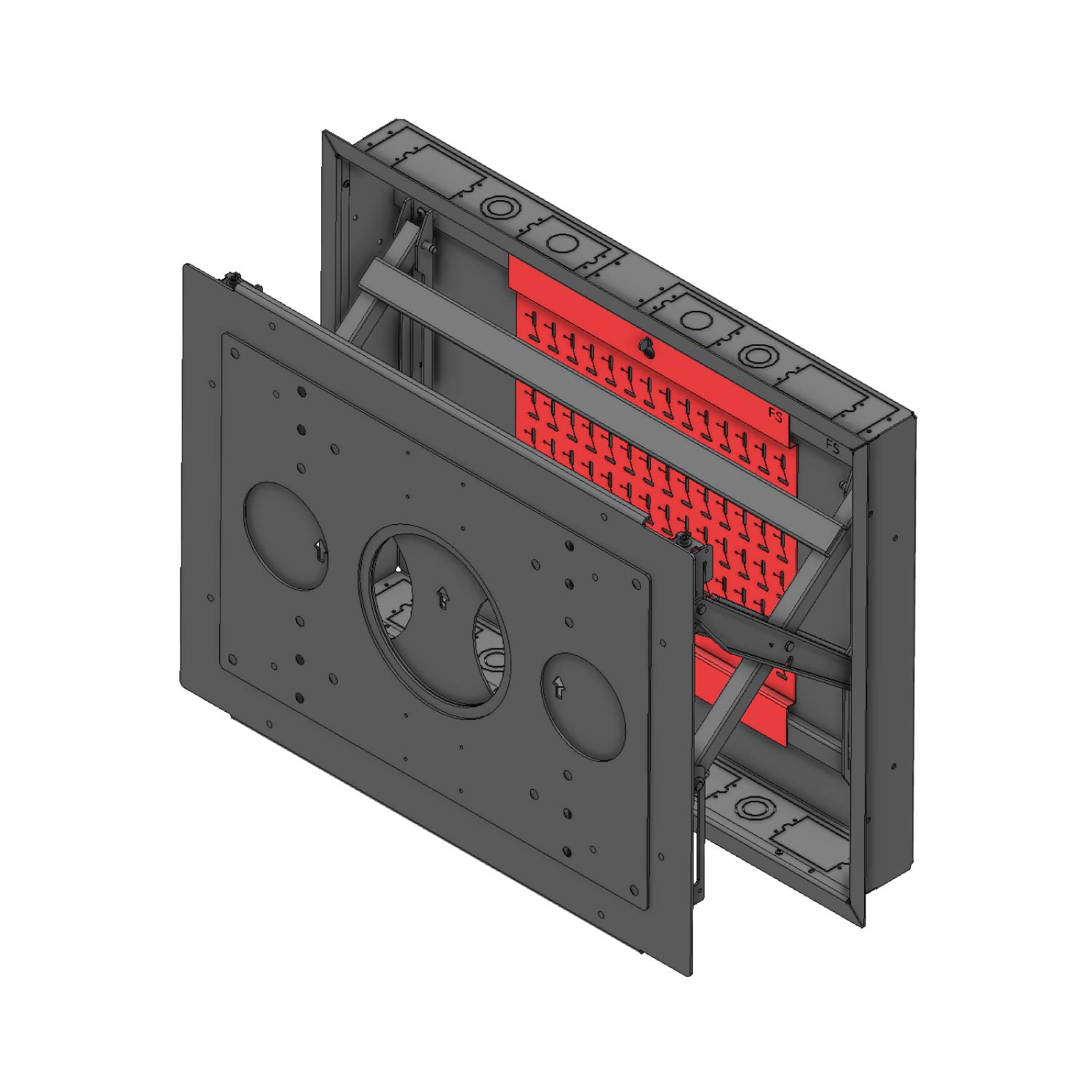

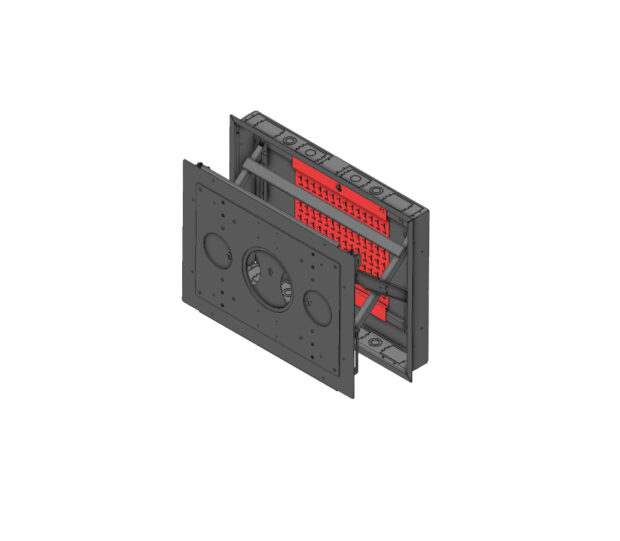

Wallmate 32BF System, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and ADA mounting plate. Closes 0.14″ from wall. 140 lbs. capacity.

CAD Drawing (PDF) download

CAD Drawing (dwg) download

Universal Mount - Pull out Wallmate 32BF kit

(RPWM-32BF-XMS-UNV)

Wallmate 32BF System, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mount. Closes 1.01″ from wall. 250 lbs. capacity.

CAD Drawing (PDF) download

CAD Drawing (dwg) download

Thin ADA plate - Pull out Wallmate 32BF kit

(RPWM-32BF-XMS-ADA)

Wallmate 32BF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and ADA mounting plate. Closes up to 0.12″ from wall. 250 lbs. capacity.

Wallmate 32BF ADA HVSB2

Flush In-Wall Flat Panel Mounting System ADA Compliance

For Displays Up to 140 lbs

Wallmate 32BF-XMS-ADA-HVSB2 Product Specifications

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.

Thin ADA plate - Pull out Wallmate 32BF kit

(RPWM-32BF-XMS-ADA-HVSB2)

Universal Mount - Pull out Wallmate 32BF kit

(RPWM-32BF-XMS-UNV)

Thin ADA plate - Pull out Wallmate 32BF kit

(RPWM-32BF-XMS-ADA)
