Flush In-Wall Flat Panel Mounting System for ADA Compliance

For Displays Up to 220 lbs

The Wallmate 32MAXBF with ADA-HVSBL mount is a double stud bay system designed to be the thinnest in-wall mount possible with 1″ +/- H & V shift, and leveling, allowing the largest selection of displays possible to be ADA compliant.

  • Closes to as low as 0.14” from the wall. The X-arms have been redesigned to enable a flush closure.
  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • Flush back box has been redesigned to lower the profile and enable a flush closure.
  • ADA-HVSBL mounting plate is custom made to match each display per order. Can mount in landscape or portrait.
Download Spec Sheet

Request Current Wallmate Price List

Request Price List
  • Specifications
  • Kits
  • Documentation
  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • Flush back box has been redesigned to lower the profile and enable a flush closure.
  • Includes electrical knock outs for conduit and single gang boxes.
  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • ADA-HVSBL mounting plate is custom made to match each display per order. Can mount in landscape or portrait.



Wallmate 32MAXBF-XMS-ADA-HVSBL Product Specifications



Stud Depth in Wall3.5″ or greater
Min. Landscape and Portrait Panel Size65″
Max Recommended Display Size Dia. 16:998″
Max Display Size Dia. 21:990″
Max Display Thickness to Hit ADA – Non Shift3.86″
X-arm Opening Distance (wall to back of display)14.69″
X-arm Closed Distance (wall to back of display)0.14″
Horizontal Shift+/- 1″ H*7
Vertical Shift+/- 1″ V*7
Rotation of Display +/- 1 degree*7
X-arm Plumb Alignment-0.62° to 0°
Display Weight Capacity220 lbs.
Internal Mount Space X-arm (WxHxD)23.75″ x 19.44″ x 2.20″
Peripheral Plate Dim (WxHxD inches)17.5″ x 26.75″ x 0.5″
Box External Dimensions – No Trim (WxHxD)30.38″ x 30.38″ x 3.81″
Box & Trim External Dimensions (WxHxD)32.1″ x 32.1″ x 3.88″
Plate Attach Pattern to X-arm (WxH)26.5″ x 11″
Default VESA pattern Widthup to 800
Default VESA pattern Heightup to 800
Max Horizontal or Vertical800 x 800
1-Gang Box Positions (top and bottom)4
Conduit Knock Outs (top)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position2
1″ Metal Multi-Piece TrimIncluded with back box
System Weight161.1 lbs.



*7: Shift based on optional ADA-HVSB/HVSBL mounting plate.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.



Wallmate Flush 32MAX ADA

Thin ADA plate - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-ADA)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm and ADA mounting plate. Close up to 0.12″ from wall. 325 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Large thin ADA plate - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-ADA-HVSBL)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm and made to order large ADA shift mounting plate with +/- 1″ H/V shift, and 1 degree rotation. Close distance is 0.14″. 220 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

Wallmate Flush 32MAX

Universal Mount - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-UNV)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mount. Closes 1.01″ from wall, 325 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Inside

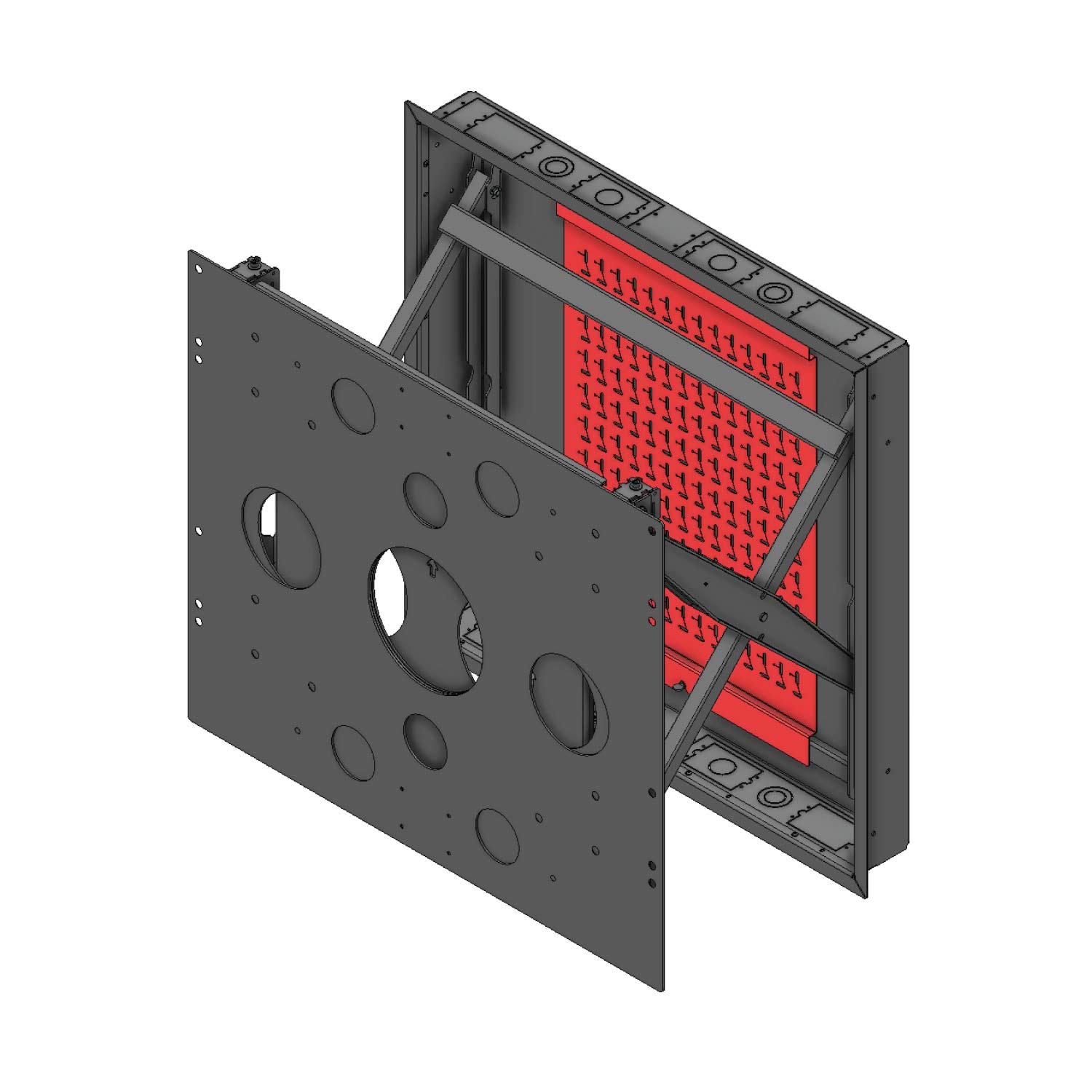

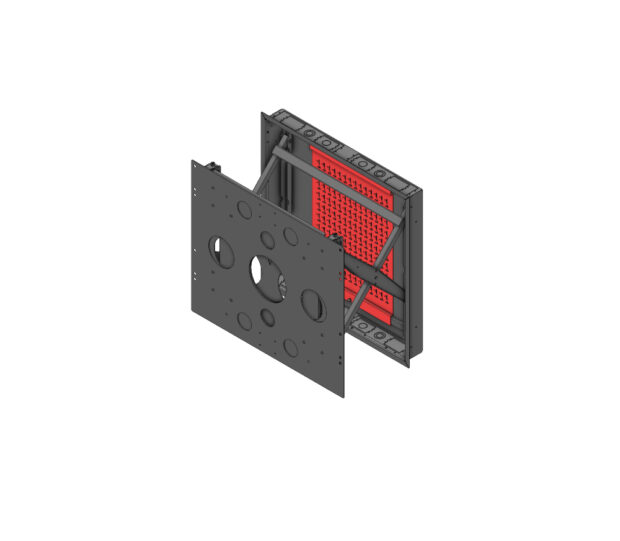

Wallmate RPWM-32MAXBF-XMS-ADA-HVSBL Kit with ADA-HVSBL Mounting Plate
