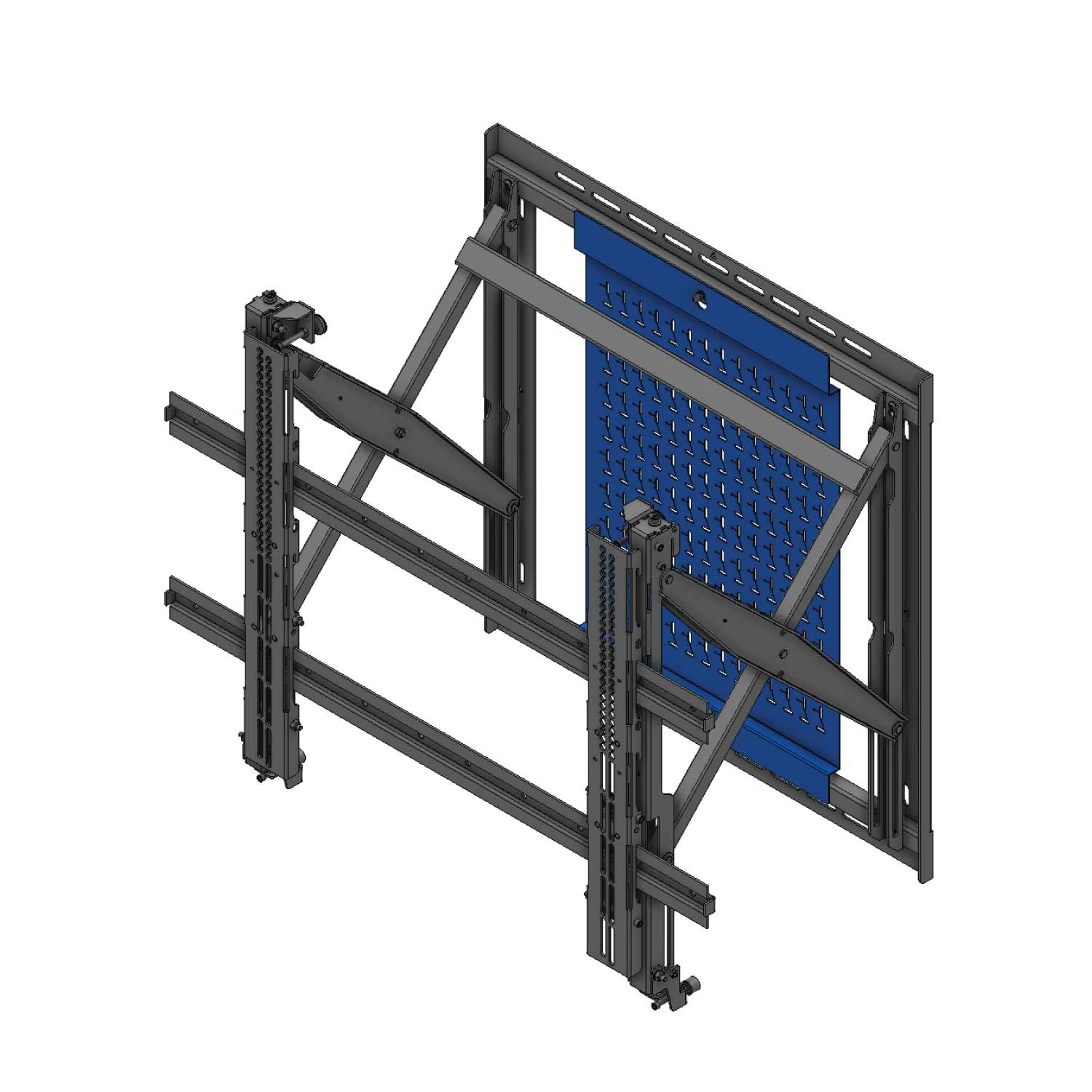

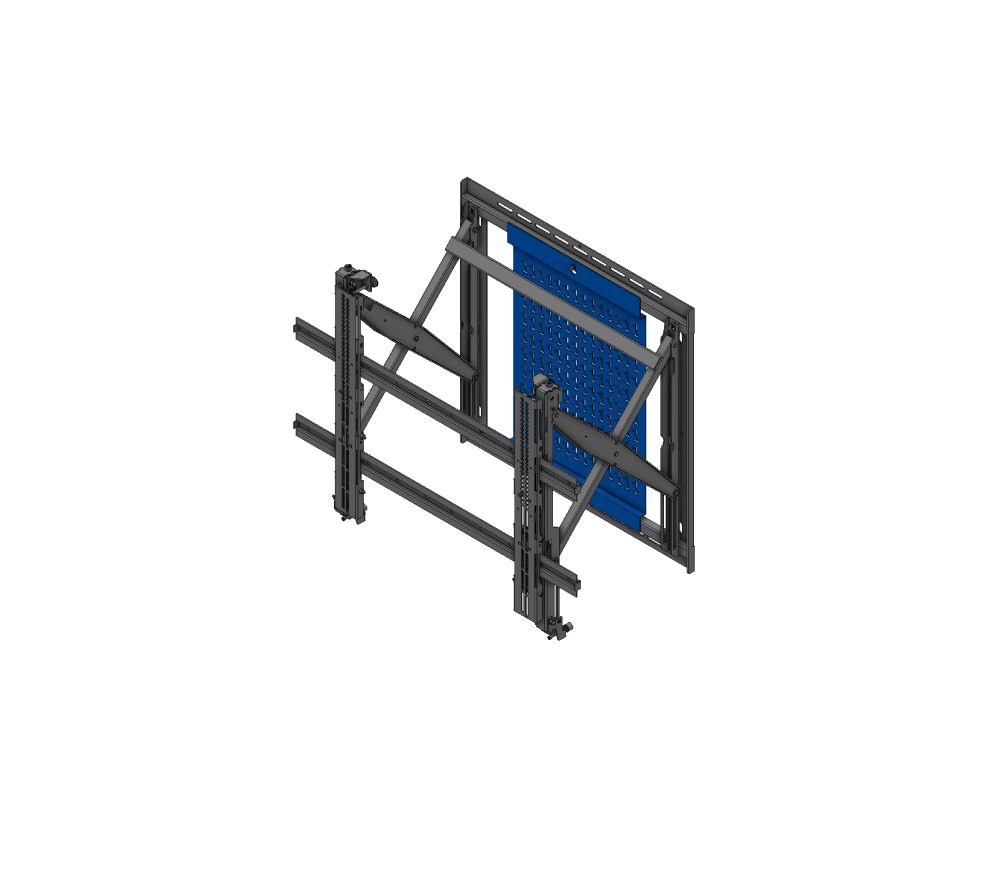

The Wallmate W32MAXB with Universal mount is an on wall system designed for flat panel displays, while maintaining the ultimate in display mount flexibility, and single person service.
| Min. Landscape and Portrait Panel Size | 65″ |
| Max Recommended Display Size Dia. 16:9 | 98″ |
| Max display size dia. 21:9 | 90″ |
| X-arm Opening Distance (wall to back of display) | 19.55″ |
| X-arm Closed Distance (wall to back of display) | 4.86″ |
| Horizontal Shift | +/-9.4″*6 |
| Vertical Shift | +5.02″/-9.09″*6 |
| Rotation of Display | 0-6.5mm height adjust per VESA location |
| X-arm Plumb Alignment | -0.62° to 0° |
| Display Weight Capacity | 300 lbs. |
| Internal Mount Space X-arm (WxHxD) | 23.75″ x 19.44″ x 3.68″ |
| Peripheral Plate Dims (WxHxD inches) | 17.5″ x 26.75″ x 0.5″ |
| Wall Plate Dims (WxHxD inches) | 30″ x 30″ x 0.87″ |
| Plate Attach Pattern to X-arm (WxH) | 26.5″ x 11″ |
| Default VESA Pattern Width | 200-800 |
| Default VESA Pattern Height | 200-600 |
| Max Horizontal or Vertical | 800 x 600 |
| System Weight | 71 lbs. |
*6: Shift range based on 600mmW x 400mmH hole pattern. For UNVM based on 300mmW x 300mmH holes pattern. For UNV-158 based on 900mmW x 600mmH holes pattern.

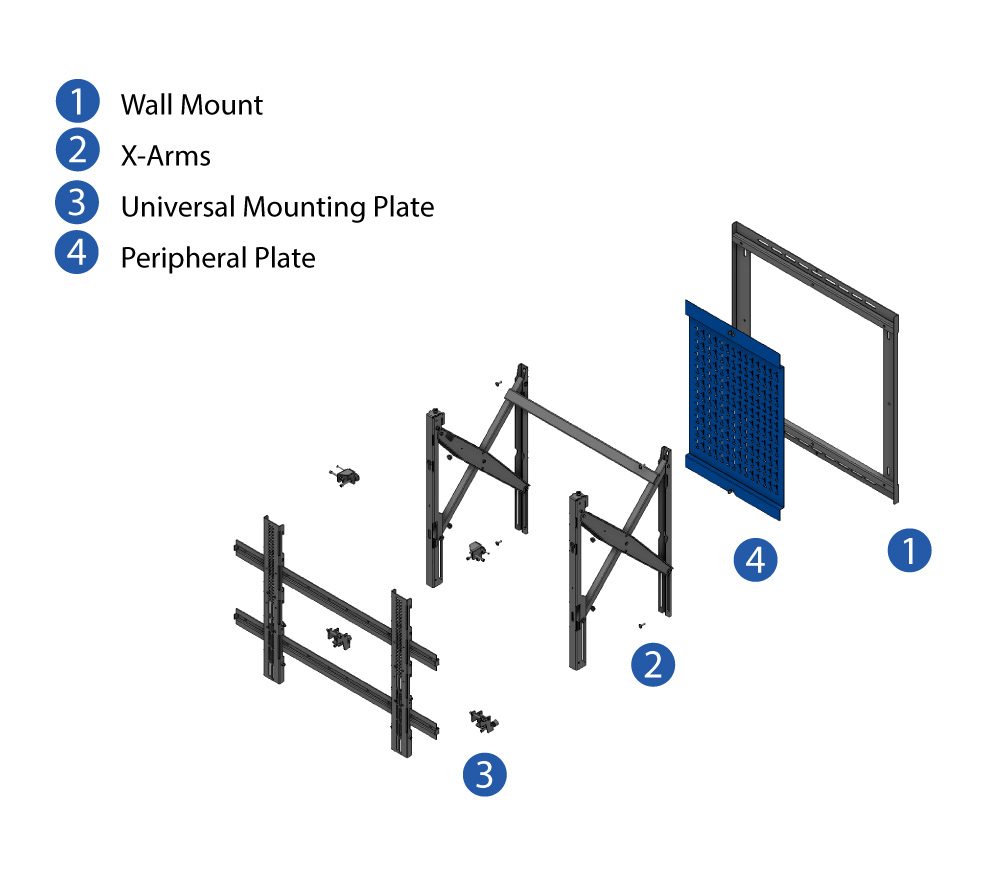

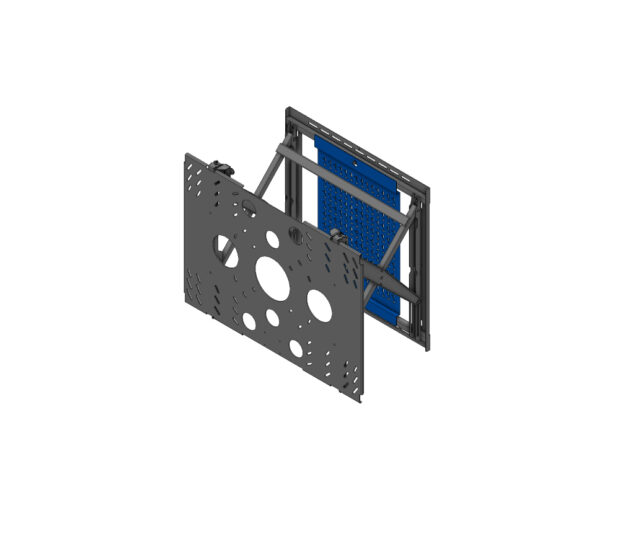

Surface mounted W32MAXB series system, includes wall attach bracket, peripheral mount plate, Slim x-arm, touch kit, and offset display mounting plate. Closes 3.98″ from wall. 300 lbs. capacity.
Surface mounted W32MAXB series system, includes wall attach bracket, peripheral mount plate, Slim x-arm, touch kit, and offset display mounting plate. Closes 4.86″ from wall. 300 lbs. capacity.
