Wallmate Flush 32MAX

Flush In-Wall Flat Panel Mounting System

For Displays Up to 325 lbs

The Wallmate 32MAXBF with Universal mount is a double stud bay system designed to be the thinnest in-wall mount possible for ADA compliance with large flat panel displays, while maintaining the ultimate in display mount flexibility.

  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • Flush back box has been redesigned to lower the profile and enable a flush closure.
  • Universal mounting interface mounts most displays with VESA pattern, 200 x 200 to 800 x 600.
Download Spec Sheet
  • Wallmate Mount Compatibility Checker
  • Specifications
  • Kits
  • Accessories
  • Documentation

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • Flush back box has been redesigned to lower the profile and enable a flush closure.
  • Includes electrical knock outs for conduit and single gang boxes.
  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • Universal mounting interface mounts most displays with VESA pattern, 200 x 200 to 800 x 600.



Wallmate 32MAXBF-XMS-UNV Product Specifications
(Available in all sizes 16, 32, 32MAX)



Stud Depth in Wall3.5″ or greater
Min. Landscape and Portrait Panel Size65″
Max Recommended Display Size Dia. 16:998″
Max Display Thickness Hit ADA – Non Shift2.99″
X-arm Opening Distance (wall to back of display)15.44″
X-arm Closed Distance (wall to back of display)1.01″
Horizontal Shift+/-9.4″ H*6
Vertical Shift+5.02″-9.09″ V*6
Rotation of Display0-6.5mm height adjust per VESA location
X-arm Plumb Alignment-0.62° to 0°
Display Weight Capacity325 lbs.
Internal Mount Space X-arm (WxHxD)23.75″ x 19.34″ x 3.68″
Peripheral Plate Dim (WxHxD inches)17.5″ x 26.75″ x 0.5″
Box External Dimensions – No Trim (WxHxD)30.38″ x 30.38″ x 3.81″
Box & Trim External Dimensions (WxHxD)32.1″ x 32.1″ x 3.88″
Plate Attach Pattern to X-arm (WxH)26.5″ x 11″
Default VESA Pattern Width200-800
Default VESA Pattern Height200-600
Max Horizontal or Vertical800 x 600
1-Gang Box Positions (top and bottom)4 each
Conduit Knock Outs (top)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position2
1″ Metal Multi-Piece TrimIncluded with back box
Weight90 lbs.



*6: Shift range based on 600mmW x 400mmH hole pattern. For UNVM based on 300mmW x 300mmH holes pattern. For UNV-158 based on 900mmW x 600mmH holes.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.



Wallmate Flush 32MAX ADA

Thin ADA plate - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-ADA)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm and ADA mounting plate. Close up to 0.12″ from wall. 325 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Large thin ADA plate - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-ADA-HVSBL)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm and made to order large ADA shift mounting plate with +/- 1″ H/V shift, and 1 degree rotation. Close distance is 0.14″. 220 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

Wallmate Flush 32MAX

Universal Mount - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-UNV)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mount. Closes 1.01″ from wall, 325 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Flush 32MAX UNV 158

Large Display Universal Mount - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMR-UNV-158)

Wallmate 32MAXBF system, includes BF back box, peripheral plate, box trim bezel, large display spacer kit, heavy duty roller x-arm, and Universal 168 mounting system. Close to 1.53″ back of the display to wall. 350 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Accessories are complimentary to Wallmate Kits.



Auxiliary box

(RPWM-AUXBOX)

In wall accessory tray for holding peripherals, slides into removable bottom panel on back box of 16, 32 and 32MAX size in B, BF, BFM and B6 series. Internal space 12.5″ x 7.2″ x 2.5″.

Wallmate Slim x-arm lock kit

(RPWM-LOCK-S)

Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.

Wallmate Slim x-arm touch kit

(RPWM-TOUCH-S)

Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.

Wallmate B tilt brackets

(RPWM-TILT)

Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.

European power adapter plate with 2 openings

(RPWM-EUPWR)

European 68mm OR 70mm electrical box adapter plate, uses AUXBOX knock out location. Not compatible with BS, BM or BFM series back boxes.

European power adapter plate with 3 openings

(RPWM-EUPWR-TRI)

European 68mm OR 70mm electrical box adapter plate with 3 openings, uses AUXBOX knock out location. Not compatible with BS, BM or BFM series back boxes.

Blank back box cover plate for Wallmate 32MAXB series

(RPWM-32MAXB-CVR)

Back box cover plate for Wallmate 32MAXB, BF, B6. Primer finish metal plate.

Pair of spacers for Wallmate x-arms, small

(RPWM-SPCR-S)

Pair of Wallmate spacers for XM or XMS x-arms, adds 1.0″ system depth, and connects to x-arm front.

Pair of spacers for Wallmate x-arms, medium

(RPWM-SPCR-M)

Pair of Wallmate spacers for XM or XMS x-arms, adds 2.0″ system depth, and connects to x-arm front.

Pair of spacers for Wallmate x-arms, large

(RPWM-SPCR-L)

Pair of Wallmate spacers for XM or XMS x-arms, adds 3.0″ system depth, and connects to x-arm front.

Pair of spacers for Wallmate x-arms, custom

(RPWM-SPCR-OFFSET)

Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.

Large display spacer kit for 32MAXBF, XMR

(RPWM-32MAXBF-LDS)

Large display spacer kit to enable Wallmate 32MAXBF box to accept an RPWM-32MAXB6-XMR x-arm for mounting RPWM-UNV-158 Universal Mount for 85-110″ flat panels up to a weight of 350 lbs.

Request Current Wallmate Price List

Request Price List

RPWM-32MAXBF-XMS-UNV

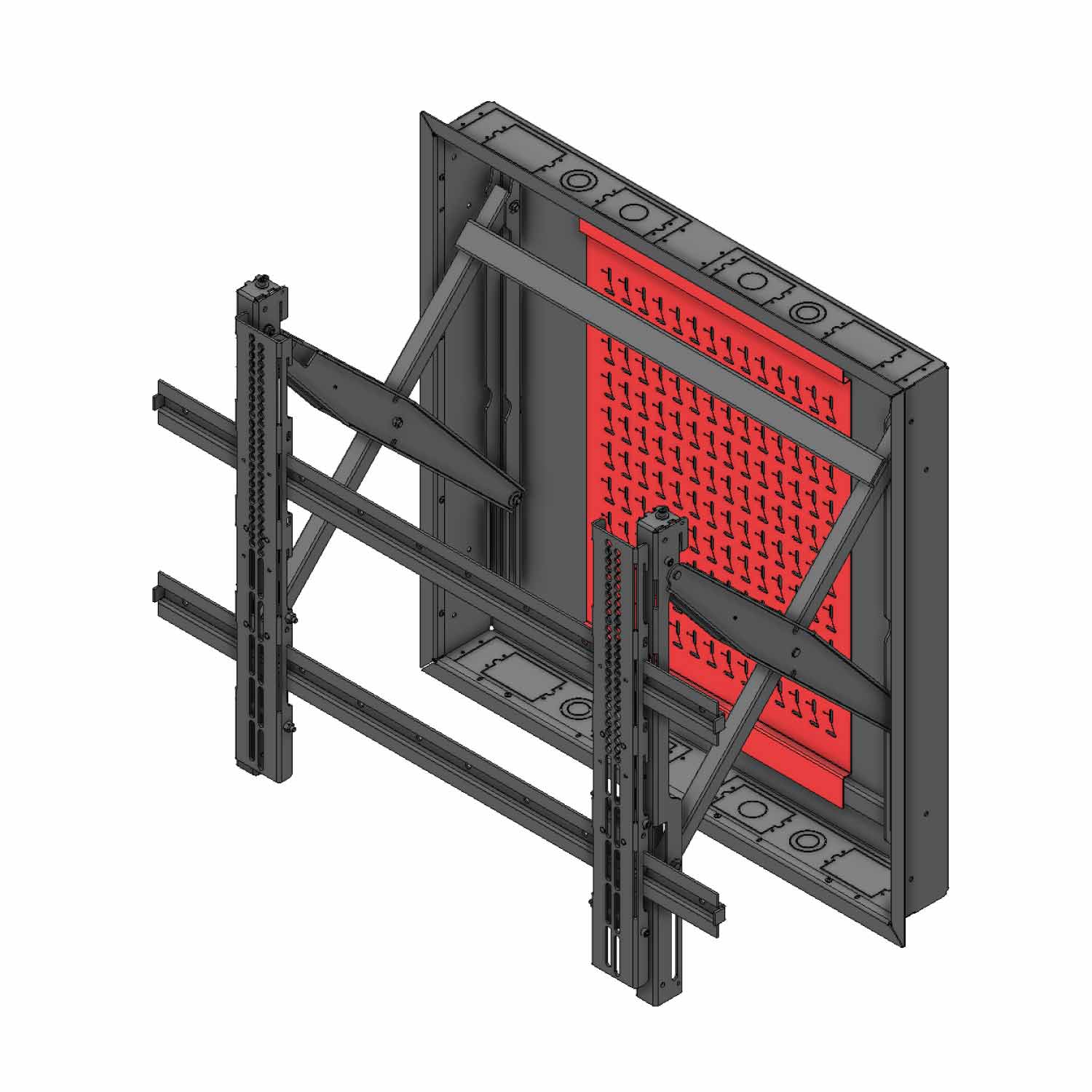

Inside the Wallmate 32MAXBF Kit with Universal Mounting Plate

Wallmate Flush 32MAX Diagram
