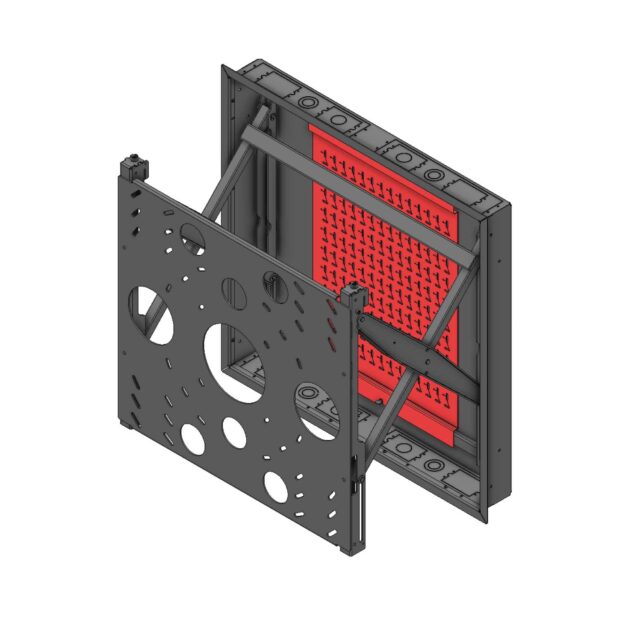

Wallmate Flush 32MAX ADA

Flush In-Wall Flat Panel Mounting System for ADA Compliance

For Displays Up to 325 lbs

The Wallmate 32MAXBF with ADA mount is a double stud bay system for large flat panel displays, designed to be the thinnest in-wall mount possible, allowing the largest selection of displays to be ADA compliant.

  • Closes to as low as 0.0” to 0.12” from the wall. The X-arms have been redesigned to enable a flush closure.
  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • Flush back box has been redesigned to lower the profile and enable a flush closure.
  • ADA mounting plate is custom made to match each display per order. Can mount in landscape or portrait.
Download Spec Sheet
  • Wallmate Mount Compatibility Checker
  • Specifications
  • Kits
  • Accessories
  • Documentation

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • Flush back box has been redesigned to lower the profile and enable a flush closure.
  • Includes electrical knock outs for conduit and single gang boxes.
  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • ADA mounting plate is custom made to match each display per order. Can mount in landscape or portrait.



Wallmate 32MAXBF-XMS-ADA Product Specifications
(Available in all sizes 16, 32, 32MAX)



Stud Depth in Wall3.5″ or greater
Min. Landscape and Portrait Panel Size65″
Max Recommended Display Size Dia. 16:9110″
Max Display Size Dia. 21:990″
Max Display Thickness to Hit ADA – Non Shift3.88″ – 4.0″
X-arm Opening Distance (wall to back of display)14.56″
X-arm Closed Distance (wall to back of display)0″ – 0.12″
Horizontal Shift0″
Vertical Shift0″
Rotation of Display 0
X-arm Plumb Alignment-0.62° to 0°
Display Weight Capacity325 lbs.
Internal Mount Space X-arm (WxHxD)23.75″ x 19.44″ x 3.56″
Peripheral Plate Dim (WxHxD inches)17.5″ x 26.75″ x 0.5″
Box External Dimensions – No Trim (WxHxD)30.38″ x 30.38″ x 3.81″
Box & Trim External Dimensions (WxHxD)32.1″ x 32.1″ x 3.88″
Plate Attach Pattern to X-arm (WxH)26.5″ x 11″
Max Horizontal or Vertical800 x 600
1-Gang Box Positions (top and bottom)4
Conduit Knock Outs (top)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position2
1″ Metal Multi-Piece TrimIncluded with back box
System Weight94.24 lbs.





Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.



Wallmate Flush 32MAX ADA

Thin ADA plate - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-ADA)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm and ADA mounting plate. Close up to 0.12″ from wall. 325 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Large thin ADA plate - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-ADA-HVSBL)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm and made to order large ADA shift mounting plate with +/- 1″ H/V shift, and 1 degree rotation. Close distance is 0.14″. 220 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Flush 32MAX

Universal Mount - Pull out Wallmate 32MAXBF kit

(RPWM-32MAXBF-XMS-UNV)

Wallmate 32MAXBF system, includes Flush back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mount. Closes 1.01″ from wall, 325 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Wallmate Accessories are complimentary to Wallmate Kits.



Auxiliary box

(RPWM-AUXBOX)

In wall accessory tray for holding peripherals, slides into removable bottom panel on back box of 16, 32 and 32MAX size in B, BF, BFM and B6 series. Internal space 12.5″ x 7.2″ x 2.5″.



CAD Drawing (PDF) download

Wallmate Slim x-arm lock kit

(RPWM-LOCK-S)

Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

Wallmate Slim x-arm touch kit

(RPWM-TOUCH-S)

Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

Wallmate B tilt brackets

(RPWM-TILT)

Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

European power adapter plate with 2 openings

(RPWM-EUPWR)

European 68mm OR 70mm electrical box adapter plate, uses AUXBOX knock out location. Not compatible with BS, BM or BFM series back boxes.



CAD Drawing (PDF) download

European power adapter plate with 3 openings

(RPWM-EUPWR-TRI)

European 68mm OR 70mm electrical box adapter plate with 3 openings, uses AUXBOX knock out location. Not compatible with BS, BM or BFM series back boxes.

Blank back box cover plate for Wallmate 32MAXB series

(RPWM-32MAXB-CVR)

Back box cover plate for Wallmate 32MAXB, BF, B6. Primer finish metal plate.

Pair of spacers for Wallmate x-arms, small

(RPWM-SPCR-S)

Pair of Wallmate spacers for XM or XMS x-arms, adds 1.0″ system depth, and connects to x-arm front.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

Pair of spacers for Wallmate x-arms, medium

(RPWM-SPCR-M)

Pair of Wallmate spacers for XM or XMS x-arms, adds 2.0″ system depth, and connects to x-arm front.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

Pair of spacers for Wallmate x-arms, large

(RPWM-SPCR-L)

Pair of Wallmate spacers for XM or XMS x-arms, adds 3.0″ system depth, and connects to x-arm front.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

Pair of spacers for Wallmate x-arms, custom

(RPWM-SPCR-OFFSET)

Pair of Wallmate spacers for XM or XMS x-arms, custom distance from 1″ up to 6″ added system depth and connects to x-arm front.

Large display spacer kit for 32MAXBF, XMR

(RPWM-32MAXBF-LDS)

Large display spacer kit to enable Wallmate 32MAXBF box to accept an RPWM-32MAXB6-XMR x-arm for mounting RPWM-UNV-158 Universal Mount for 85-110″ flat panels up to a weight of 350 lbs.

Request Current Wallmate Price List

Request Price List

RPWM-32MAXBF-XMS-ADA

Inside the Wallmate 32MAXBF Kit with ADA Mounting Plate
