Flush In-Wall Flat Panel Mounting System ADA Compliance

For Displays Up to 200 lbs

The Wallmate 32BFM with ADA mount is a double stud bay system designed to be the thinnest in-wall mount possible, allowing the largest selection of smaller displays to be ADA compliant.

  • Closes to as low as 0.0″ to 0.12″ from the wall.  The display X-arms have been redesigned to enable a flush closure.
  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • Flush Mini back box has been redesigned to lower the profile and enable a flush closure.
  • ADA mounting plate is custom made to match each display per order. Can mount in landscape or portrait.
Download Spec Sheet
  • Wallmate Mount Compatibility Checker
  • Specifications
  • Kits
  • Documentation

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • Flush Mini back box has been redesigned to lower the profile and enable a flush closure.
  • Includes electrical knock outs for conduit and single gang boxes.
  • Slim x-arm system makes the display seem feather light, enabling easy, and safe service.
  • ADA mounting plate is custom made to match each display per order. Can mount in landscape or portrait.



Wallmate 32BFM-XMS-ADA Product Specifications



Stud Depth in Wall3.5″ or greater
Min. Landscape and Portrait Panel Size43″ L / 65″ P
Max Recommended Display Size Dia. 16:975″*3
Max Display Thickness to Hit ADA – Non Shift3.88″ – 4.0″
X-arm Opening Distance (wall to back of display)9.43″
X-arm Closed Distance (wall to back of display)0.0″ – 0.12″
Horizontal Shift0″
Vertical Shift0″
Rotation of Display 0-6.5mm height adjust per VESA location
X-arm Plumb Alignment-1.03° to 0°
Display Weight Capacity200 lbs.
Internal Mount Space X-arm (WxHxD)23.75″ x 10.5″ x 3.56″
Peripheral Plate Dim (WxHxD inches)16.5″ x 17.5″ x 0.5″
Box External Dimensions – No Trim (WxHxD)30.38″ x 21.15″ x 3.81″
Box & Trim External Dimensions (WxHxD)32.1″ x 21.9″ x 3.9″
Plate Attach Pattern to X-arm (WxH)26.5″ x 11″
Max Horizontal and Vertical600 x 400
1-Gang Box Positions (top and bottom)2
Conduit Knock Outs (top)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position2
1″ Metal Multi-Piece Trim0.5″ trim included with back box
System Weight66.3 lbs.



*3: Larger display sizes are possible but may impede access to the peripheral mounting plate.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.

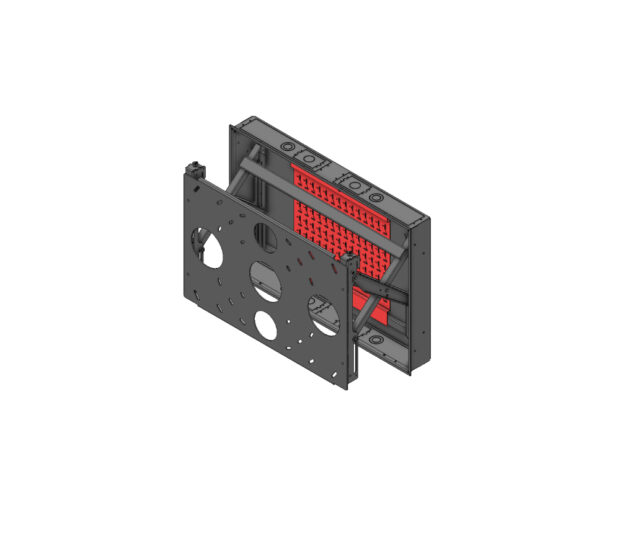

Flush thin offset plate - Pull out Wallmate 32BFM kit

(RPWM-32BFM-XMS-ADA)

Wallmate 32BFM system, includes Flush Mini back box, peripheral plate, box trim bezel, Slim x-arm, and made to order offset mounting plate. Closes up to 0.12″ from wall. 200 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download

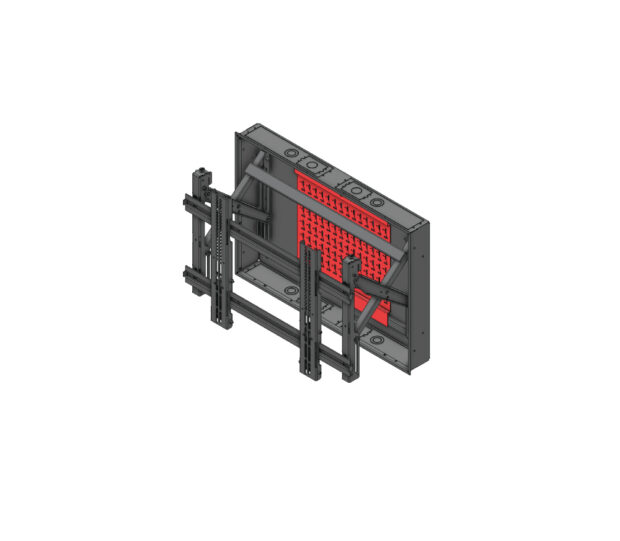

Universal Mount - Pull out Wallmate 32BFM kit

(RPWM-32BFM-XMS-UNV)

Wallmate 32BFM System, includes Flush Mini back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mini mount. Closes 0.8″ from wall. 200 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Request Current Wallmate Price List

Request Price List

RPWM-32BFM-XMS-ADA

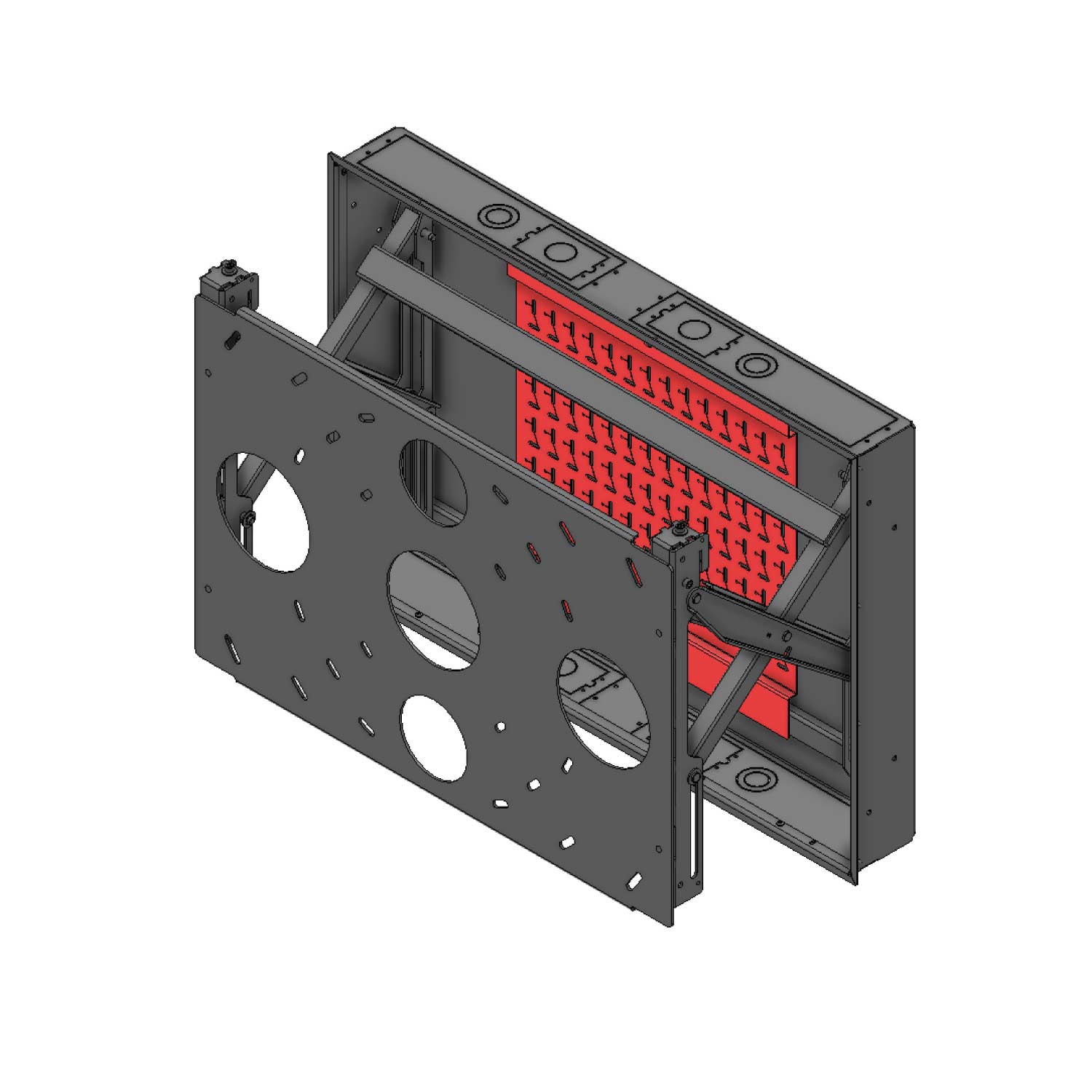

Inside the Wallmate 32BFM Kit with ADA Mounting Plate
