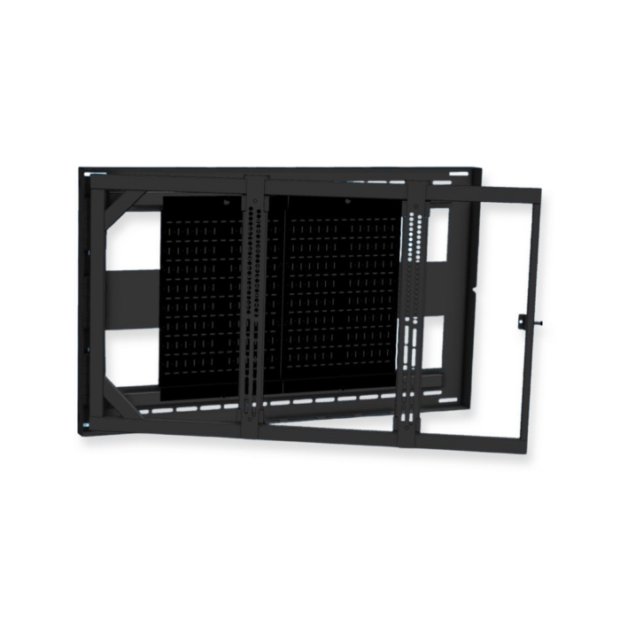

Wallmate Surface

Overview

Wallmate Surface can be mounted on top of drywall, concrete or block walls, to easily install a single panel and peripheral equipment.

Benefits

  • Removable device mount plates = Allows quick exchange service and assembly line style, off-site preparation
  • Separate back can for Electrical / G.C installation as needed
  • 2” from back of display to wall = Assists with ADA Compliance
  • Able to mount displays from 55” to 75”
  • Swing Left or Right
  • Built to the strength and rigidity that RPV is known for
Download PDF of This Page
Wallmate Surface Product Specifications
RPWM-SURF
Capacity 150 lbs.
Product Weight 48 lbs
Warranty 1 year
Display Size 55” up to 75”
Peripheral plate mountng area 14” x 18.5”  Qty 2
Peripheral plate included Qty 2
Overall Dimensions 45.9” x 27.5” x (2.0” or 2.5”)*

* depth is 2.0” without spacer to give more internal mount depth. depth is 2.5” with spacer
