Flush In-Wall Flat Panel Mounting System

For Displays Up to 200 lbs

The Wallmate 32BFM with Universal mount is designed hold smaller displays with the same internal peripheral device space as the Wallmate 32BF series, while maintaining the ultimate in display mount flexibility.

  • Slim X-arm system makes the display seem feather light, enabling easy, and safe service.
  • Flush Mini back box has been redesigned to lower the profile and enable a flush closure.
  • Universal mounting interface mounts most displays with non-standard VESA patterns without custom components or a complex installation process.
Download Spec Sheet
  • Wallmate Mount Compatibility Checker
  • Specifications
  • Kits
  • Documentation

Verify that your display is compatible with our Wallmate Universal mounting plate. Wallmate Universal can be purchased as a whole Kit. If your display is not supported, we have other Wallmate kit options available for mounting your display.







  • Peripheral storage space makes it easy to mount AV gear behind the display while still remaining flush against the wall.
  • Rapid deployment quick-remove peripheral plates enable faster and more reliable roll outs by facilitating AV equipment being pre-dressed, and pre-tested.
  • Flush Mini back box has been redesigned to lower the profile and enable a flush closure.
  • Includes electrical knock outs for conduit and single gang boxes.
  • Slim x-arm system makes the display seem feather light, enabling easy, and safe service.



Wallmate 32BFM-XMS-UNV Product Specifications



Stud Depth in Wall3.5″ or greater
Min. Landscape and Portrait Panel Size45″ L / 65″ P
Max Recommended Display Size Dia. 16:975″*3
Max Display Size Dia. 21:982
Max Display Thickness Hit ADA3.88″ – 4.0″
X-arm Opening Distance (wall to back of display)9.43″
X-arm Closed Distance (wall to back of display)0.0″ – 0.12″
Horizontal Shift0″
Vertical Shift0″
Rotation of Display0-6.5mm height adjust per VESA location
X-arm Plumb Alignment-1.03° to 0°
Display Weight Capacity200 lbs.
Internal Mount Space X-arm (WxHxD)23.75″ x 10.5″ x 3.56″
Peripheral Plate Dim (WxHxD inches)16.5″ x 17.5″ x 0.5″
Box External Dimensions – No Trim (WxHxD)30.38″ x 21.15″ x 3.81″
Box & Trim External Dimensions (WxHxD)32.1″ x 21.9″ x 3.9″
Plate Attach Pattern to X-arm (WxH)26.5″ x 11″
Default VESA Pattern Width200-600
Default VESA Pattern Height200-400
Max Horizontal or Vertical600 x 400
1-Gang Box Positions (top and bottom)2 each
Conduit Knock Outs (top)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
Conduit Knock Outs (bottom)4 (qty. 2 x 1″, qty. 2 x combo 0.75″/1.25″)
AUX Tray Position2
1″ Metal Multi-Piece Trim0.5″ trim included with back box
Weight64.8 lbs.



*3: Larger display sizes are possible but may impede access to the peripheral mounting plate.

Wallmate Kits are our all-in-one solution that include the x-arms, display mounting plate, back box, and peripheral mounting plate.



Universal Mount - Pull out Wallmate 32BFM kit

(RPWM-32BFM-XMS-UNVM)

Wallmate 32BFM System, includes Mini back box, peripheral plate, box trim bezel, Slim x-arm, and Universal mini mount. Closes 0.8″ from wall. 200 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Flush close, thin offset plate - Pull out Wallmate 32BFM kit

(RPWM-32BFM-XMS-ADA)

Wallmate 32BFM system, includes Mini back box, peripheral plate, box trim bezel, Slim x-arm, and made to order offset mounting plate. Closes up to 0.12″ from wall. 200 lbs. capacity.



CAD Drawing (PDF) download

CAD Drawing (dwg) download



Request Current Wallmate Price List

Request Price List

RPWM-32BFM-XMS-UNVM

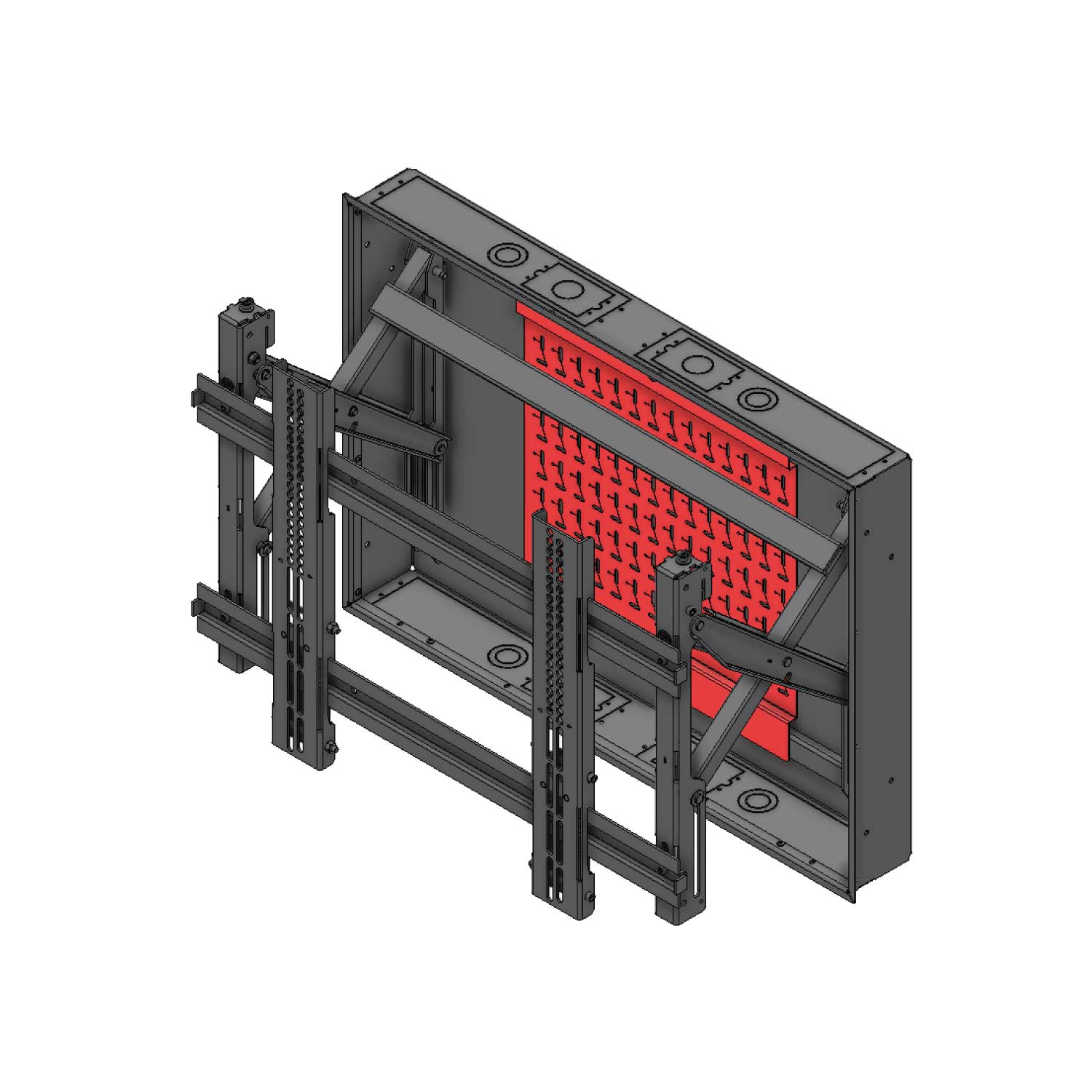

Inside the Wallmate 32BFM Kit with Universal Mini Mounting Plate
